Sliding door fitting, Slido D-Line41 50X, set
Sliding door fitting, Slido D-Line41 50X, set
Supplier:
Häfele
Category:
Sliding, Folding & Tambour Door Fittings
Sliding door fitting, Slido D-Line41 50X, set
with soft and self closing mechanism on both sides, door weight 50 kg
Article details
Version
With soft and self closing mechanism on both sides
Adjustment facility
Height ±2 mm
Area of application
for 1-leaf and 2-leaf sliding doors
Installation note
soft and self closing mechanism Low opening force – easy and convenient operation
tested with increased closing speed up to 0.6 m/s
can be replaced at any time
Supplied with
2 running gears
2 soft and self closing mechanisms with integrated stopper
2 cover caps for door, silver coloured
2 cover caps for door, black
2 end caps for track, silver coloured
2 end caps for track, black
1 clear threshold floor guide
12 fixing clips for running track/panel
Additional information attributes

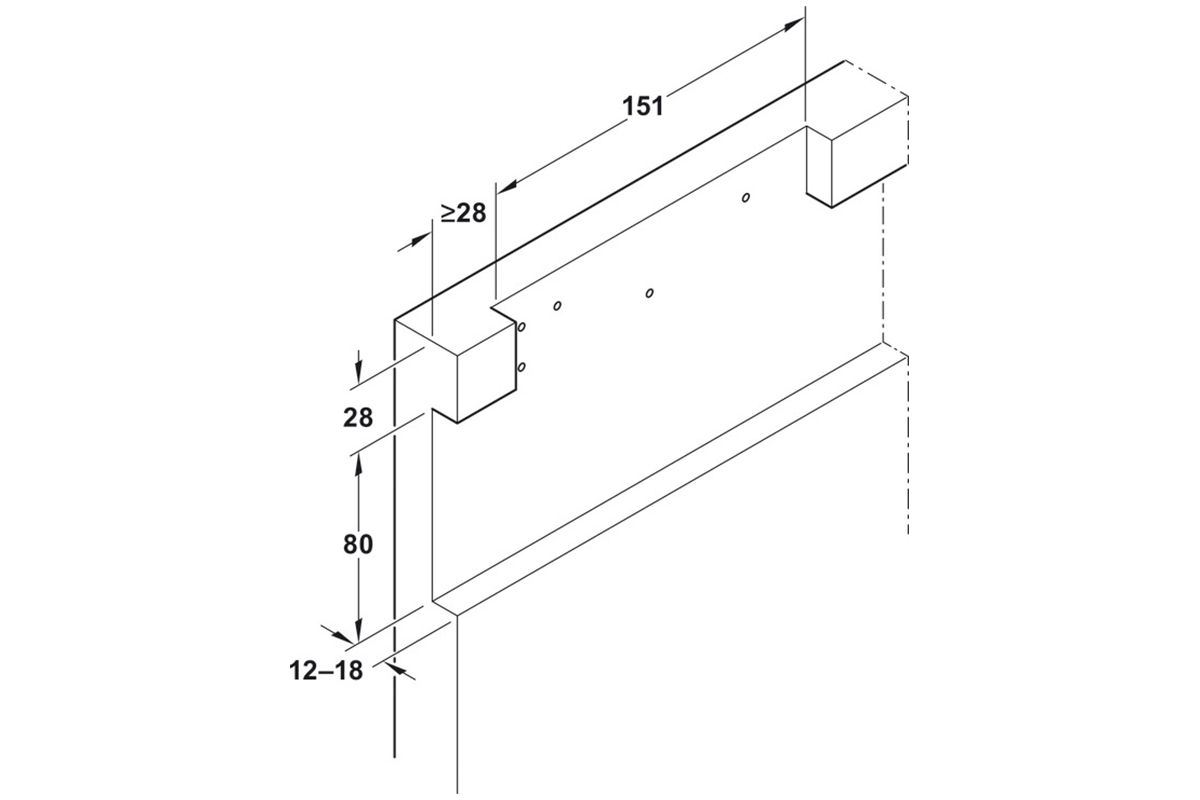

Pre-defined screw positions simplify installation. We recommend pilot drilling the drilling pattern when making the recess.
Pre-defined screw positions simplify installation. We recommend pilot drilling the drilling pattern when making the recess.
Item code: 940.42.068
Sliding door fitting, Slido D-Line41 50X, set,Datasheet
