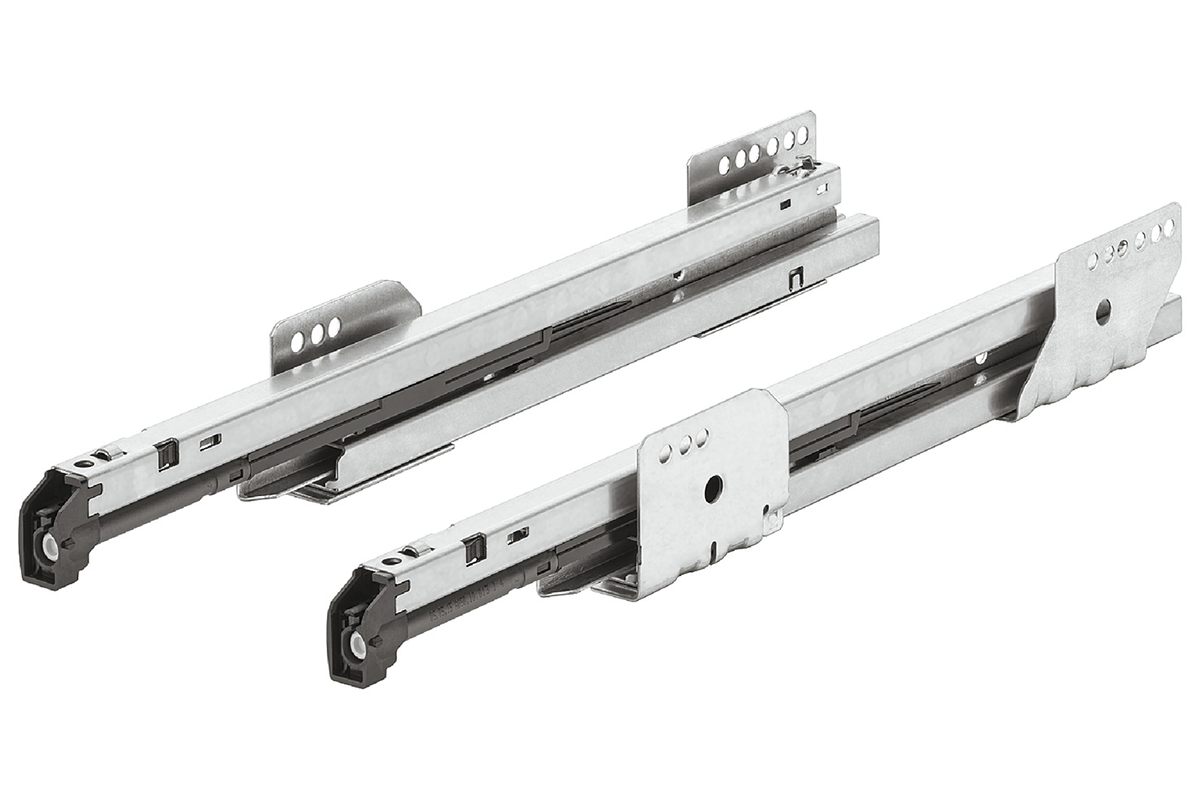

Drawer runners, Matrix, for project drawer
Drawer runners, Matrix, for project drawer
Item code: 551.50.444 , 551.50.445
Internal installation depth 450 mm, drilling pattern 37 / 288, follow-up item 551.50.344 only suitable for project drawers
Internal installation depth 500 mm, drilling pattern 37 / 288, follow-up item 551.50.345 only suitable for project drawers and Matrix Pro Medical
Article details
Load bearing capacity
35.0 kg
Suitable for
Full extension with soft and self closing mechanisms
Material
Steel
Colour/finish
Zinc plated
Installation

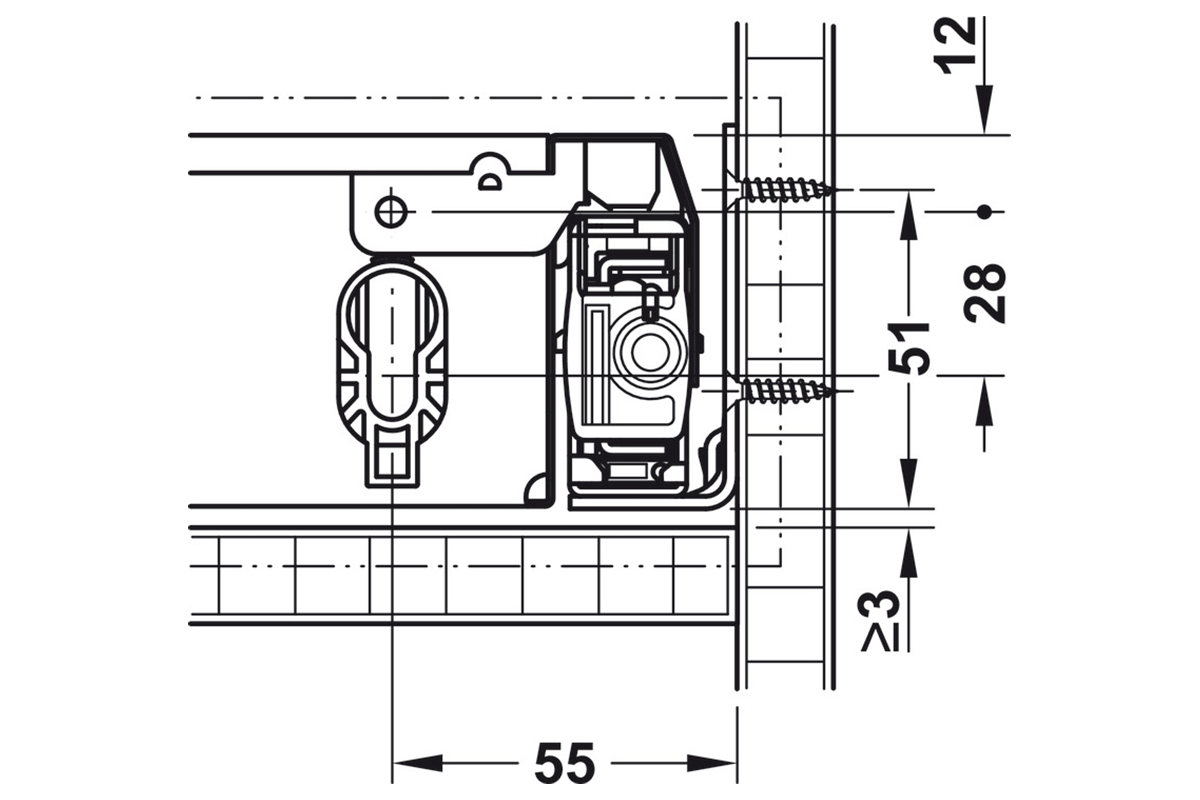

on side panel into 32 mm series drilled holes
Additional information attributes
internal installation depth = nominal length + 3 mm
