Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Supplier:
Häfele
Category:
Furniture & Living Solutions

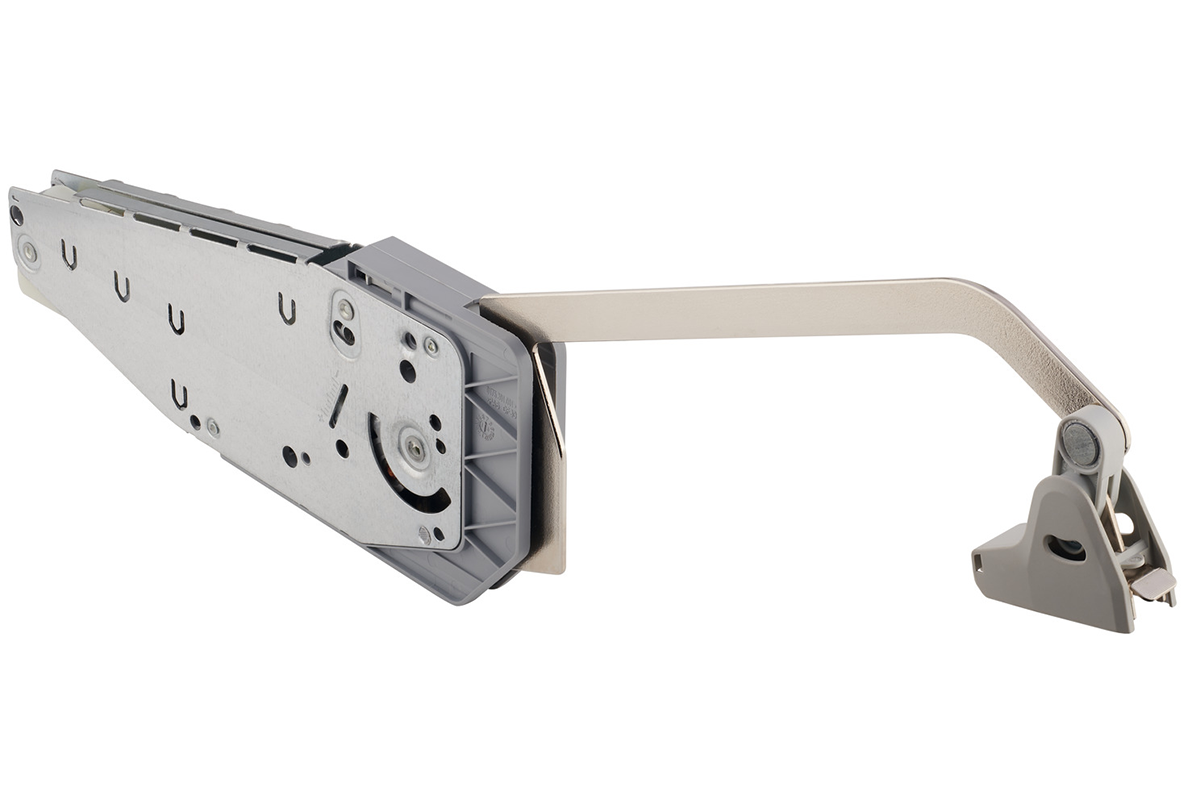

Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Item code: 372.37.654 , 372.37.643
For 2-piece flaps with division 1:1 made from wood or with aluminium frame, Cabinet height: 650–730 mm, flap weight: 5.8–11.6 kg, model F4fo
Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
For 2-piece flaps with division 1:1 made from wood or with aluminium frame, Cabinet height: 650–730 mm, flap weight: 5.8–11.6 kg, model F4fo
Article details
Area of application
For 2-piece flaps with division 1:1 made from wood or with aluminium frame
Material
Plastic
Colour/finish
Fitting: Nickel plated
Lid material
Wood, Aluminium frame
Flap type
two-piece with division 1:1
Adjustment facility
Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)
Holding power/centre pull (via fitting)
Supplied with
1 double flap lift-up fitting set (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template)
