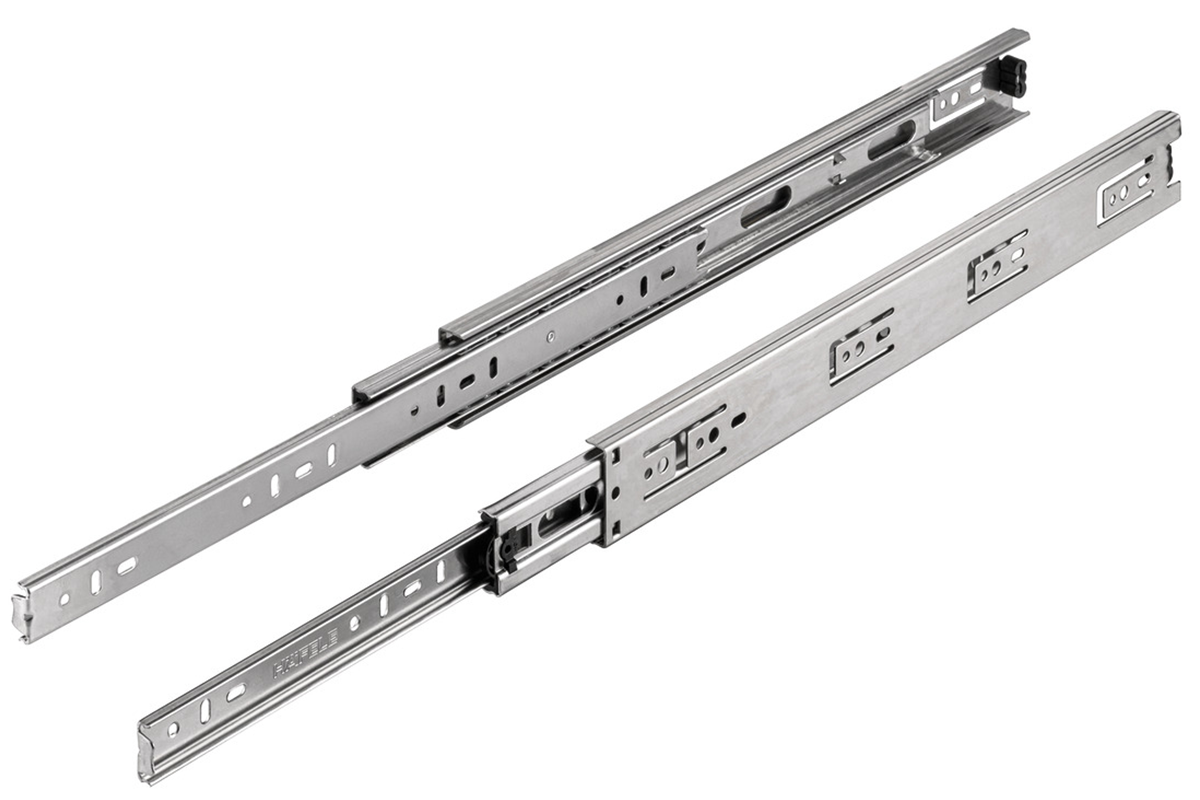

Ball bearing runner, Häfele Matrix Runner BB S, overextension, load bearing capacity up to 30 kg, steel, side mounted
Ball bearing runner, Häfele Matrix Runner BB S, overextension, load bearing capacity up to 30 kg, steel, side mounted
Supplier:
Häfele
Category:
Furniture & Living Solutions
Ball bearing runner, Häfele Matrix Runner BB S, overextension, load bearing capacity up to 30 kg, steel, side mounted
Item code: 420.50.652 , 420.50.657
With hold-in device for holding in closed position, Material thickness: 1.0/1.0/1.2 mm, installation length: 500 mm, zinc plated, load bearing capacity 30 kg
With hold-in device for holding in closed position, Material thickness: 1.0/1.0/1.2 mm, installation length: 550 mm, zinc plated, load bearing capacity 30 kg
Article details
Nominal length
Version
For easy installation, can be disengaged using release lever, with hold-in device in closed positon
Type of pull out
Over extension
Area of application
For material thickness 1.0/1.0/1.2 mm
Removing the running track
With release lever
Material
Steel
Dimensions

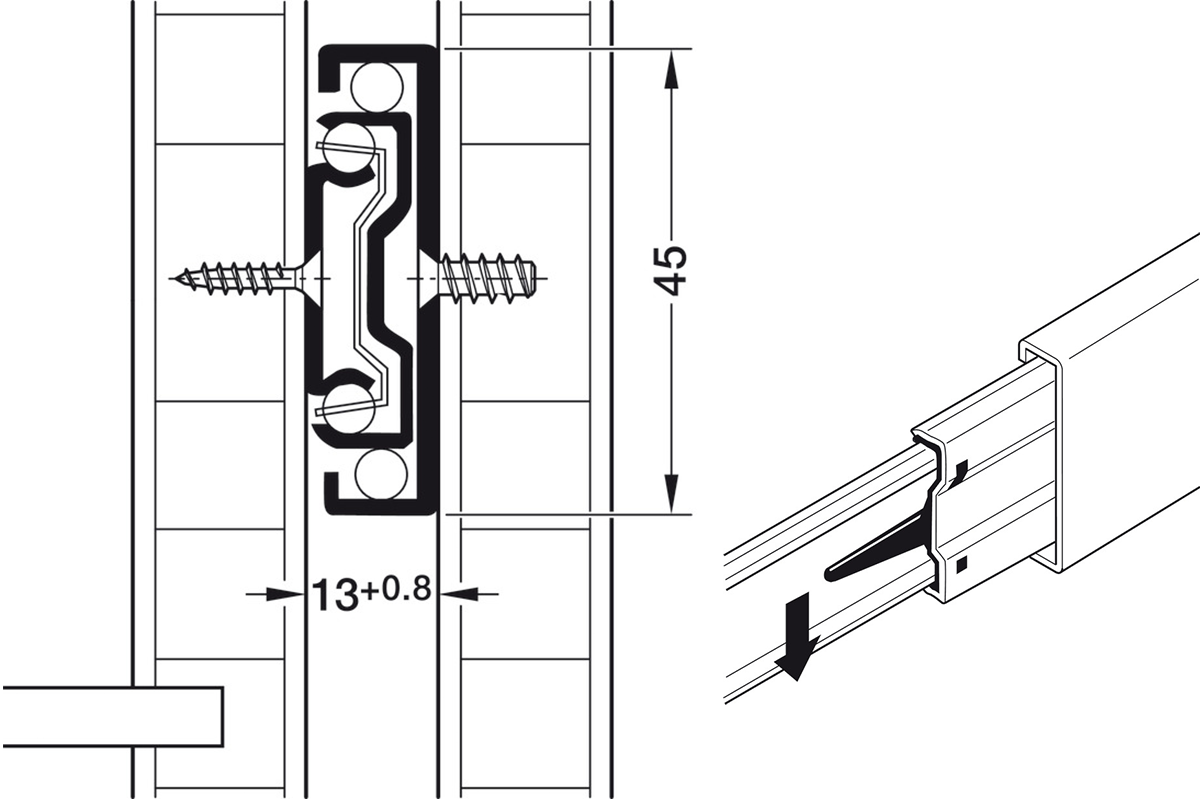

Max. drawer width = internal cabinet width – 27.6 mm

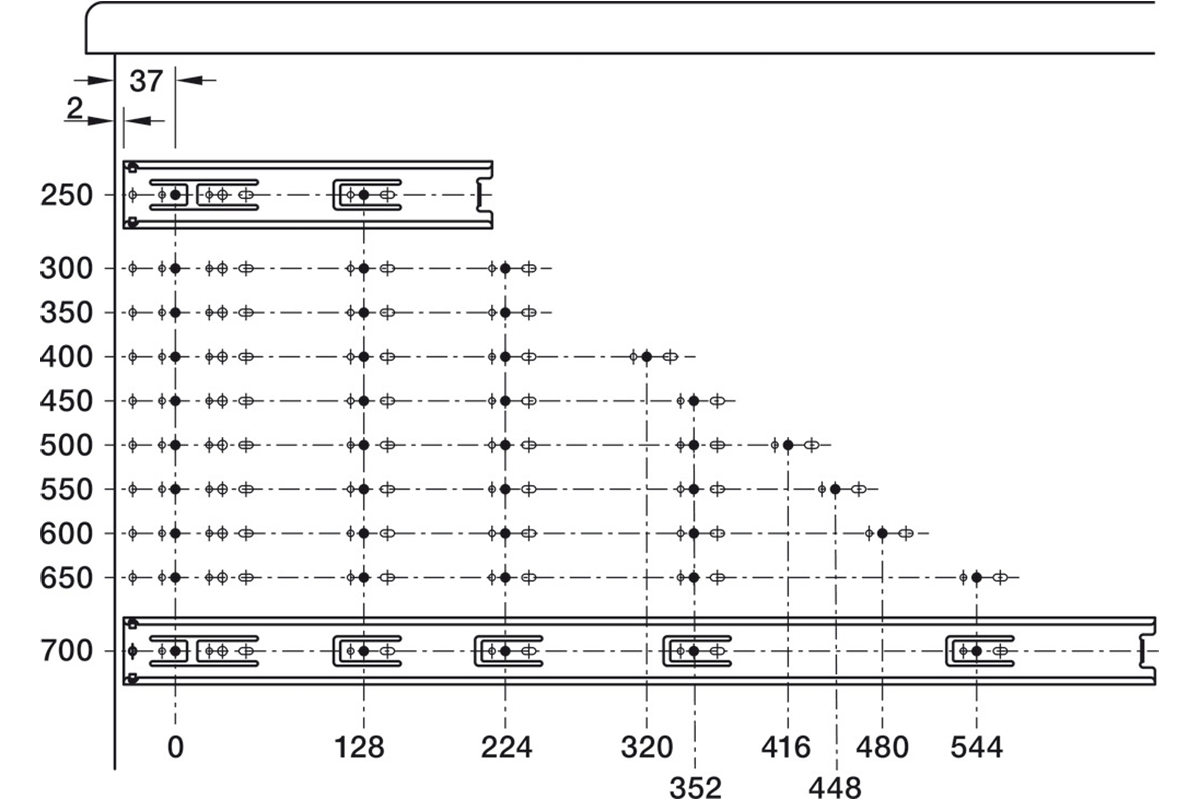

Installation
Side, for screw fixing
