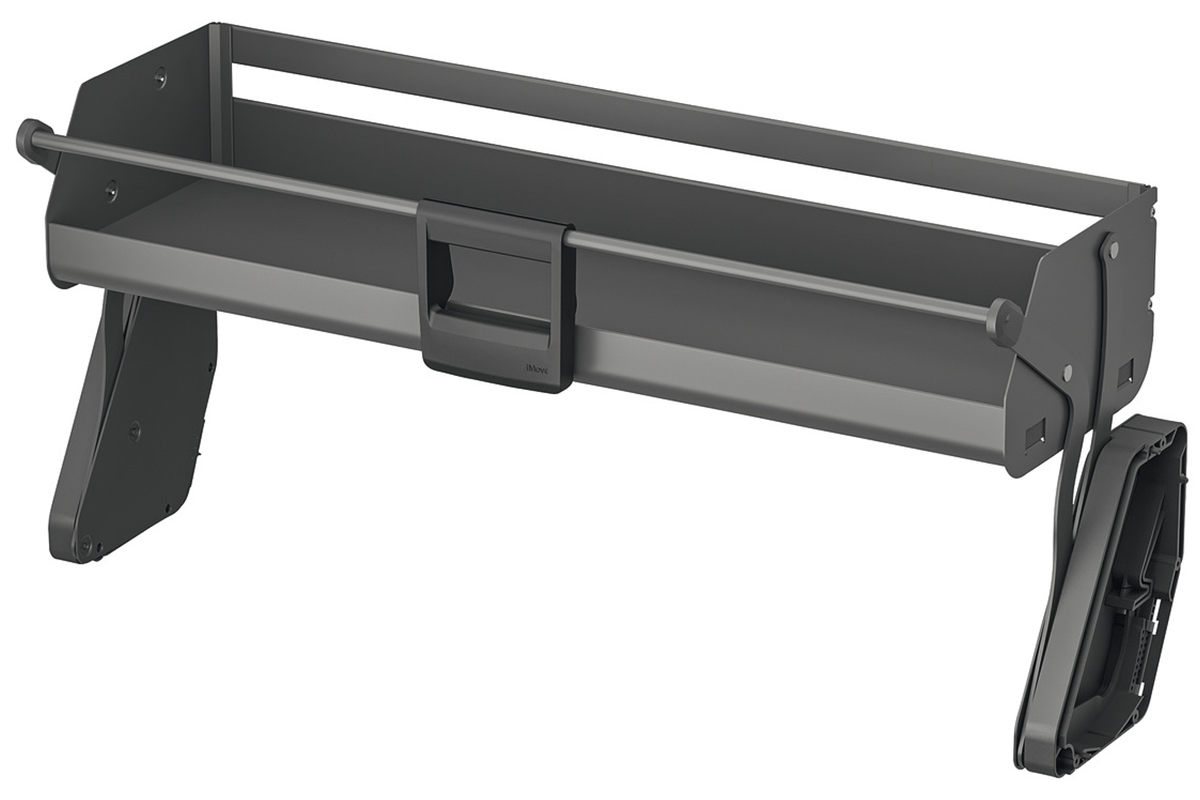

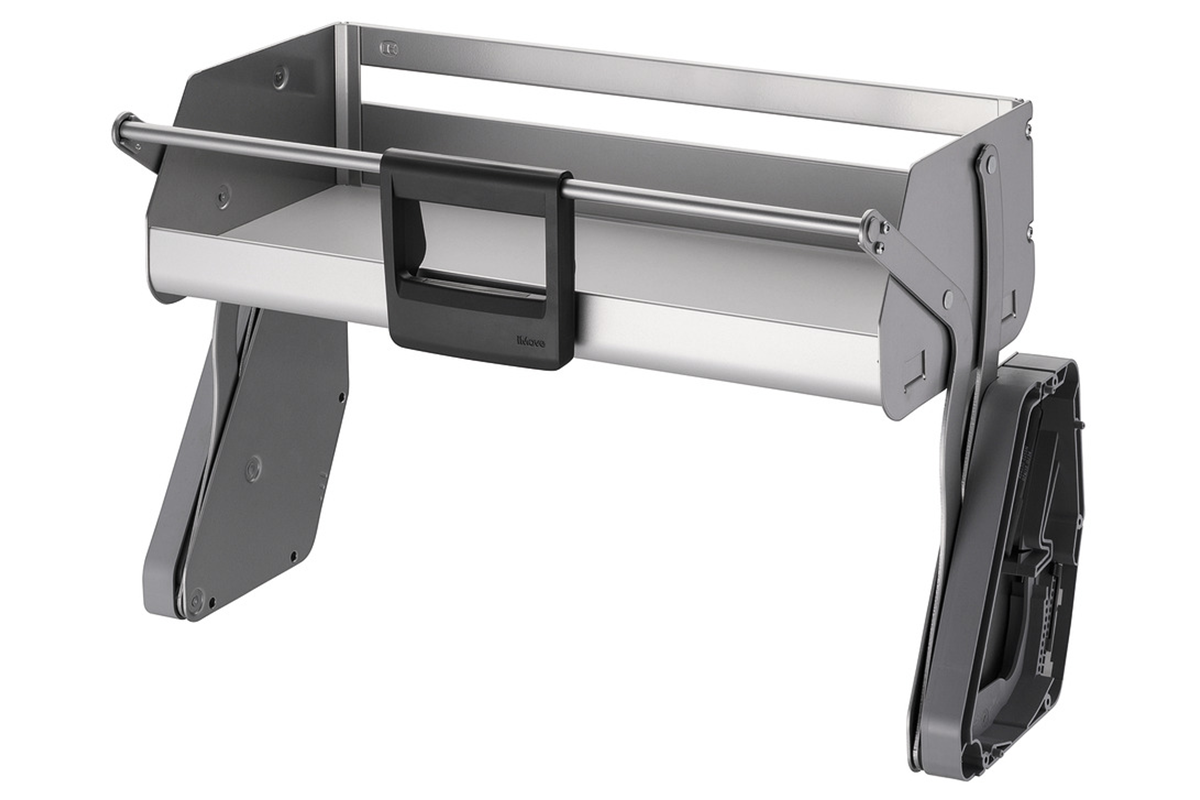

Wall unit lift, Kesseböhmer iMove
Wall unit lift, Kesseböhmer iMove
Item code: 504.68.935 , 504.68.943 , 504.68.313
Product details
Cabinet contents can be accessed to 100% by everyone
Slightly pulling the handle is sufficient for perfect movement

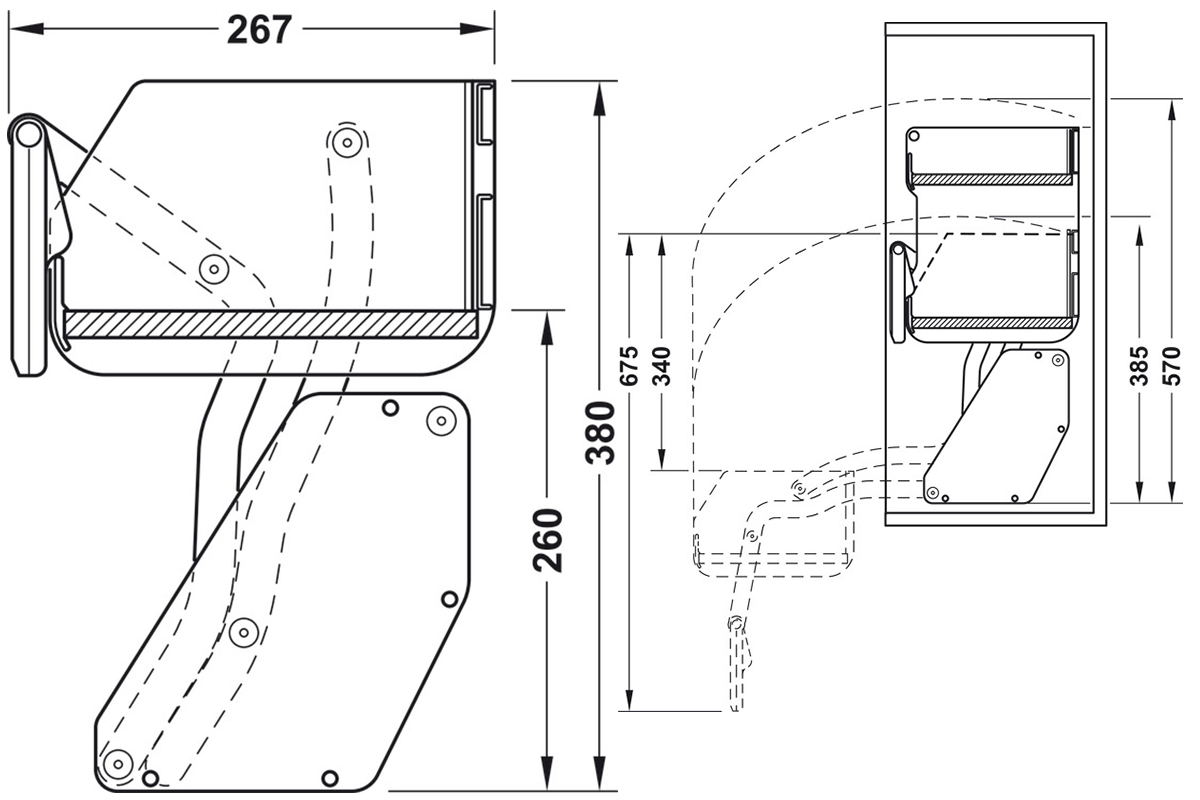

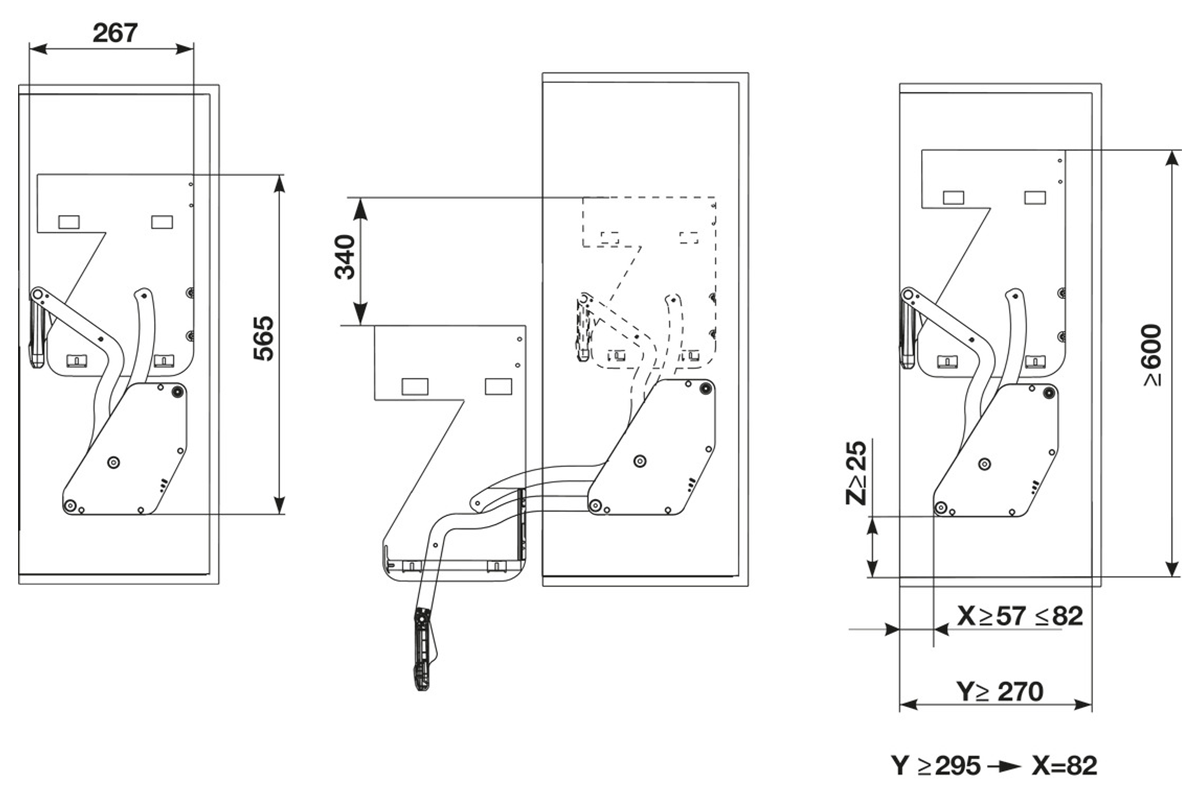

- Min shelf cabinet height with single shelf and Fold-up fitting: 600 mm

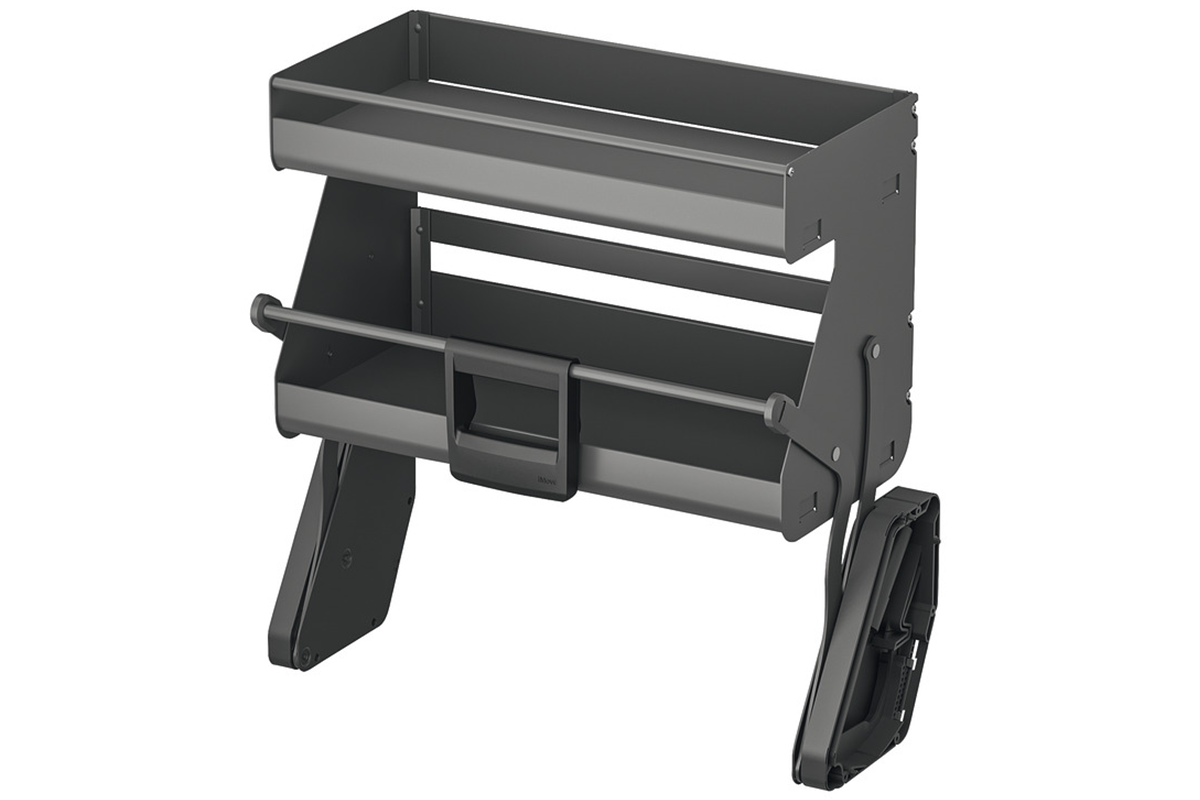

Min shelf cabinet height with double shelf and Fold-up fitting: 690 mm
Load bearing capacity
8 kg
Area of application
suitable for hinged doors and lift fittings
Material
Steel, wood
Closing effect
Return with soft closing mechanism
Installation
For screw fixing with chipboard screws
Supplied with
1 lift set
Fixing material
Installation instructions
Additional information attributes
Please see installation instructions for other installation options and cabinet heights.
Wall unit lift, Kesseböhmer iMove, Datasheet
