Stay flap fitting, Maxi complete set

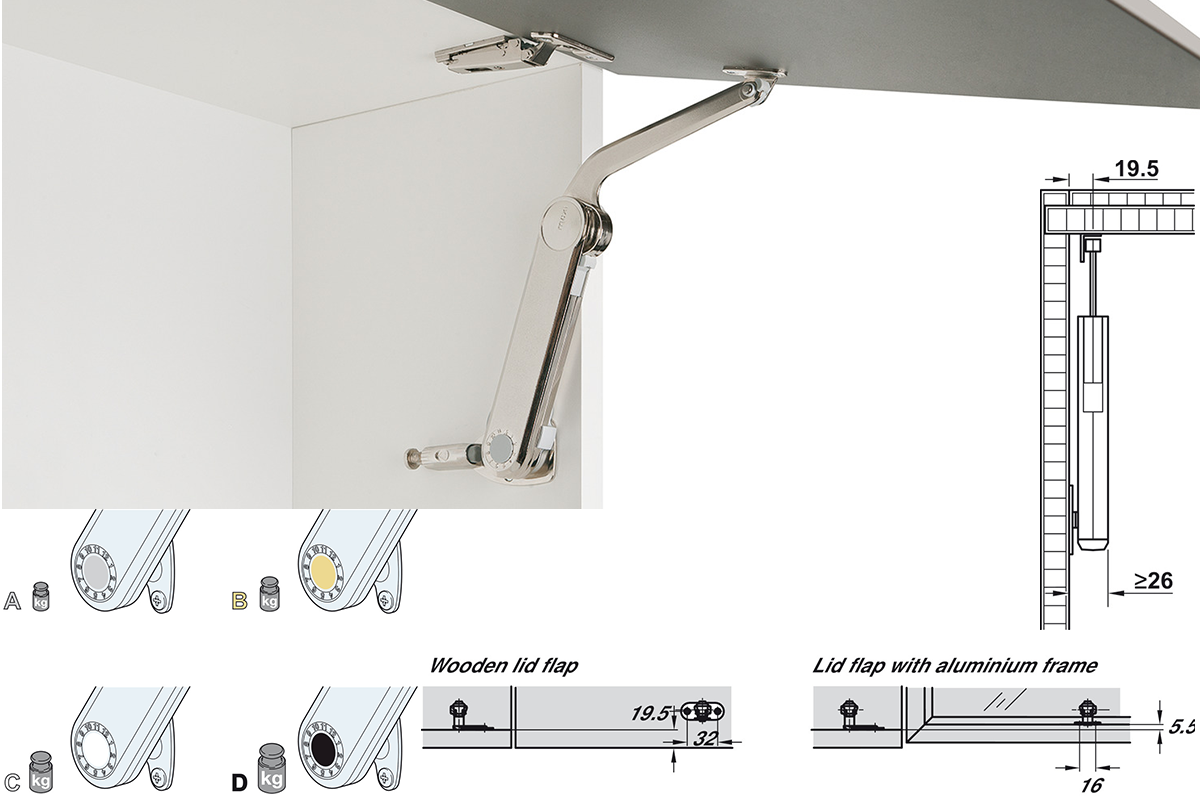

For wooden or glass flaps or flaps with aluminium frame, Edge distance: 37 mm, model: D, nickel plated
Article details

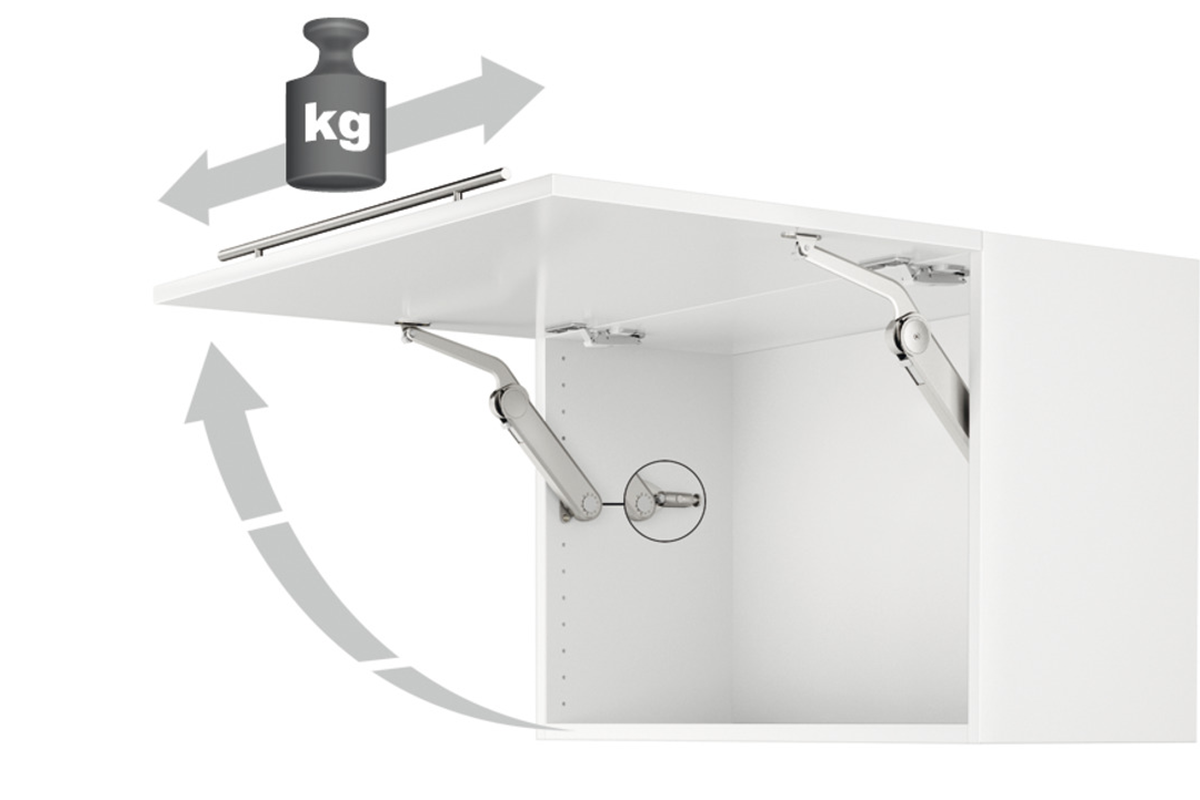

MAXImal talent: By varying the mounting points with just one fitting, many applications such as front panels without handles or effortless opening of even large and heavy flaps up to 50 kg can be realised (depending on flap height and mounting situation)
Multi-position stop function: The fitting can be adjusted so that the flap stops in any position.
separate soft closing mechanism available as accessory
can also be used in combination with Häfele Metalla 510 Push self-opening concealed hinges or concealed hinges with integrated soft-closing mechanism (trial mounting required)
Version
Complete set
For cabinet height
300 – 1,000 mm
For lid weight
≤27.3 kg, note sample measurements table
Adjustment facility
height adjustment ±2 mm, side adjustment +3/-1 mm, tilting angle ±1.5 mm and adjustment facility for holding power with SW10 hex key

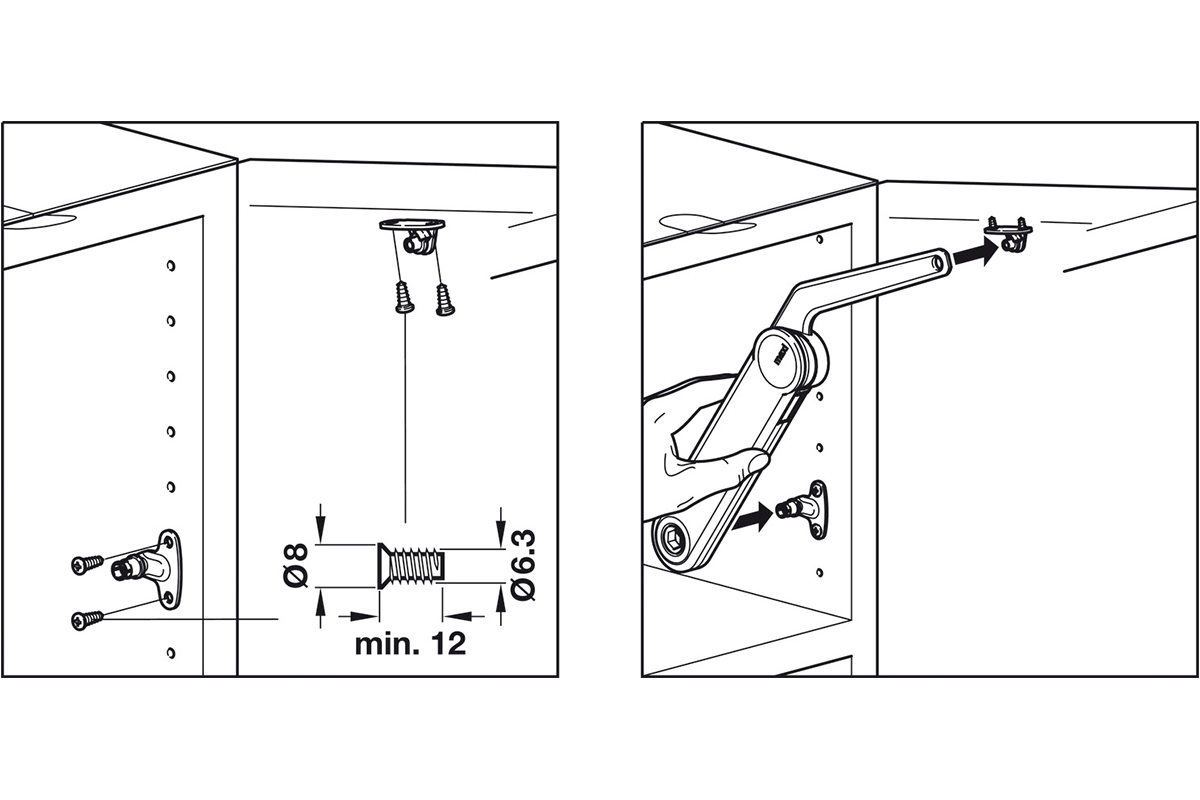

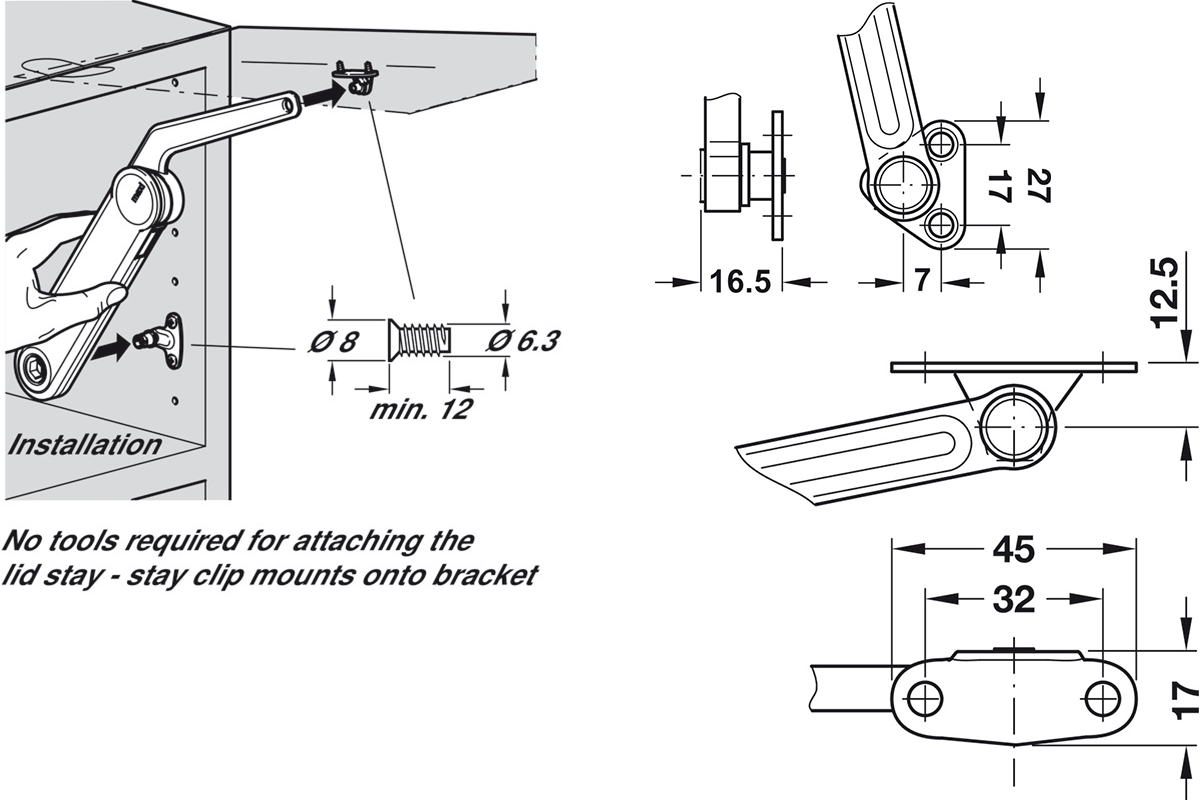

Installation
Without tools (clip system)

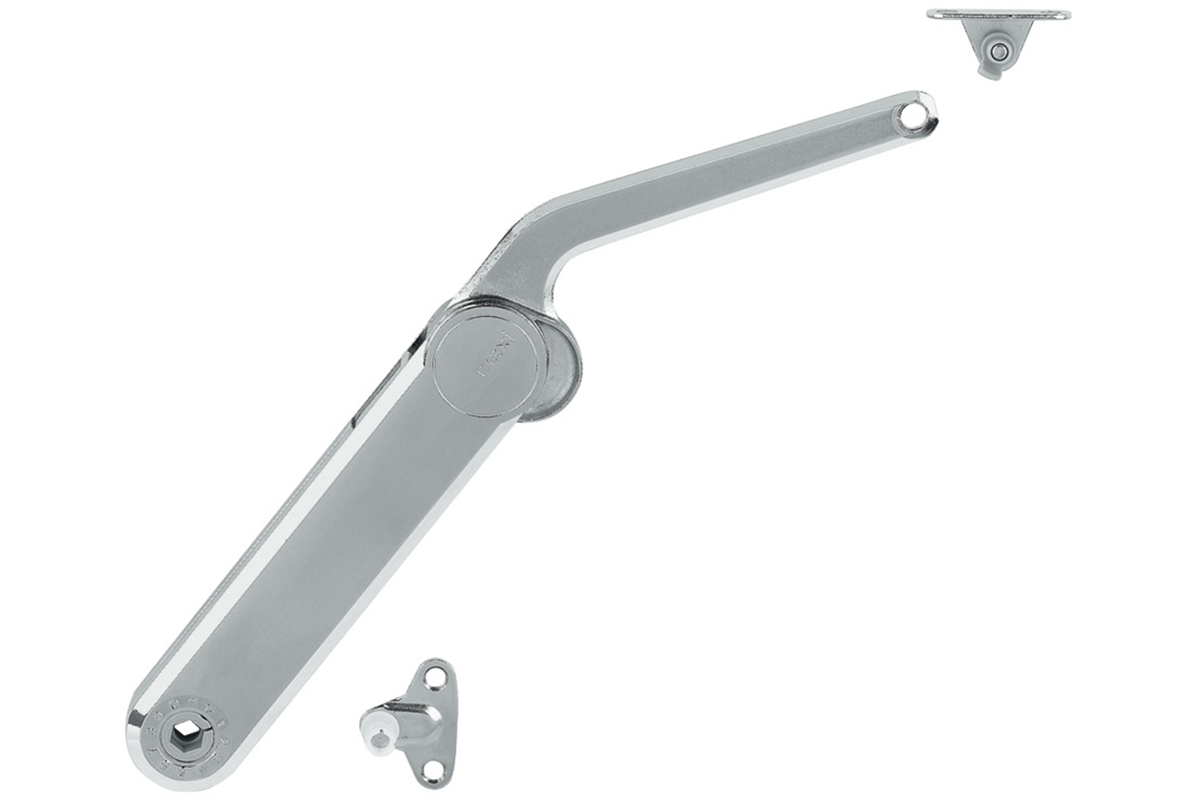

Supplied with
1 lid stay
1 mounting bracket for cabinet
1 screw-on bracket for flap (for Euro screws)
Item code: 373.69.312
Stay flap fitting, Maxi complete set,Datasheet
