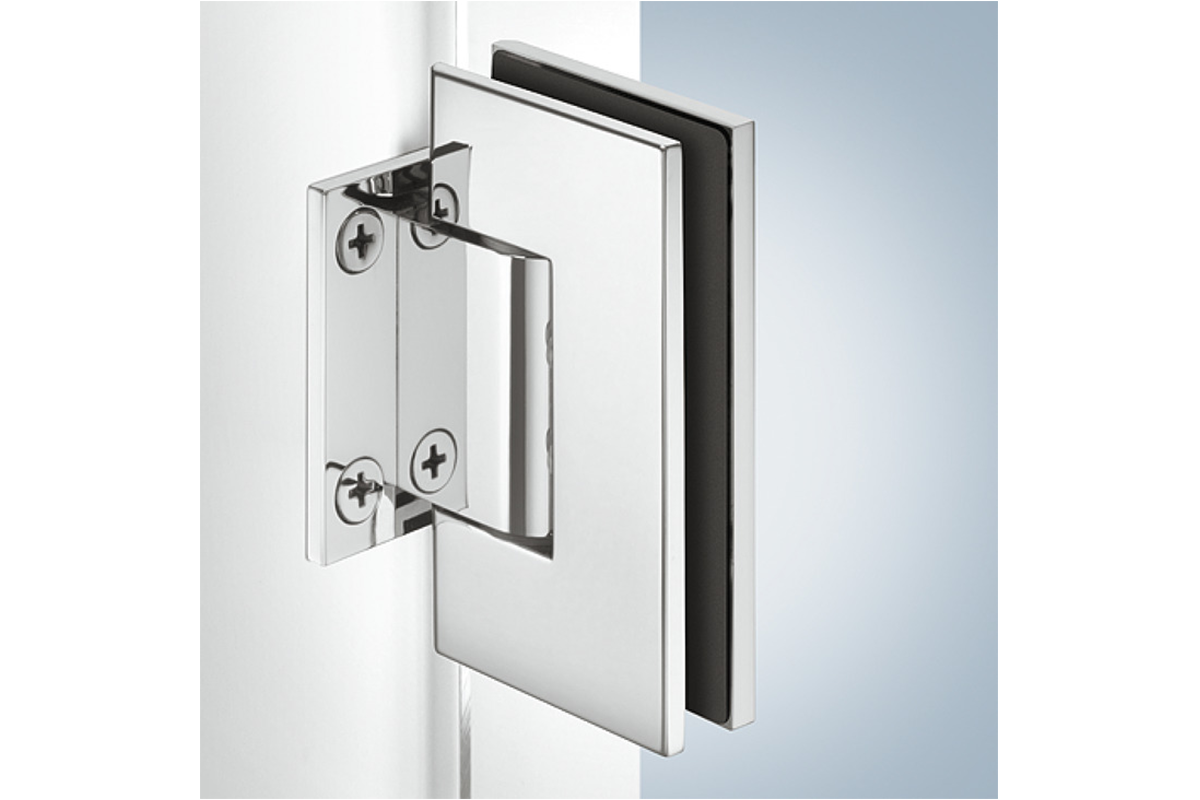

shower door hinge, Straight, adjustable, Aquasys
shower door hinge, Straight, adjustable, Aquasys
Supplier:
Häfele
Category:
Furniture & Living Solutions
shower door hinge, Straight, adjustable, Aquasys
for glass thickness: 8-12 mm
Article details
Opening angle
90.0 °
For glass thickness
8 – 12 mm
Colour/finish
chrome plated, polished
Area of application

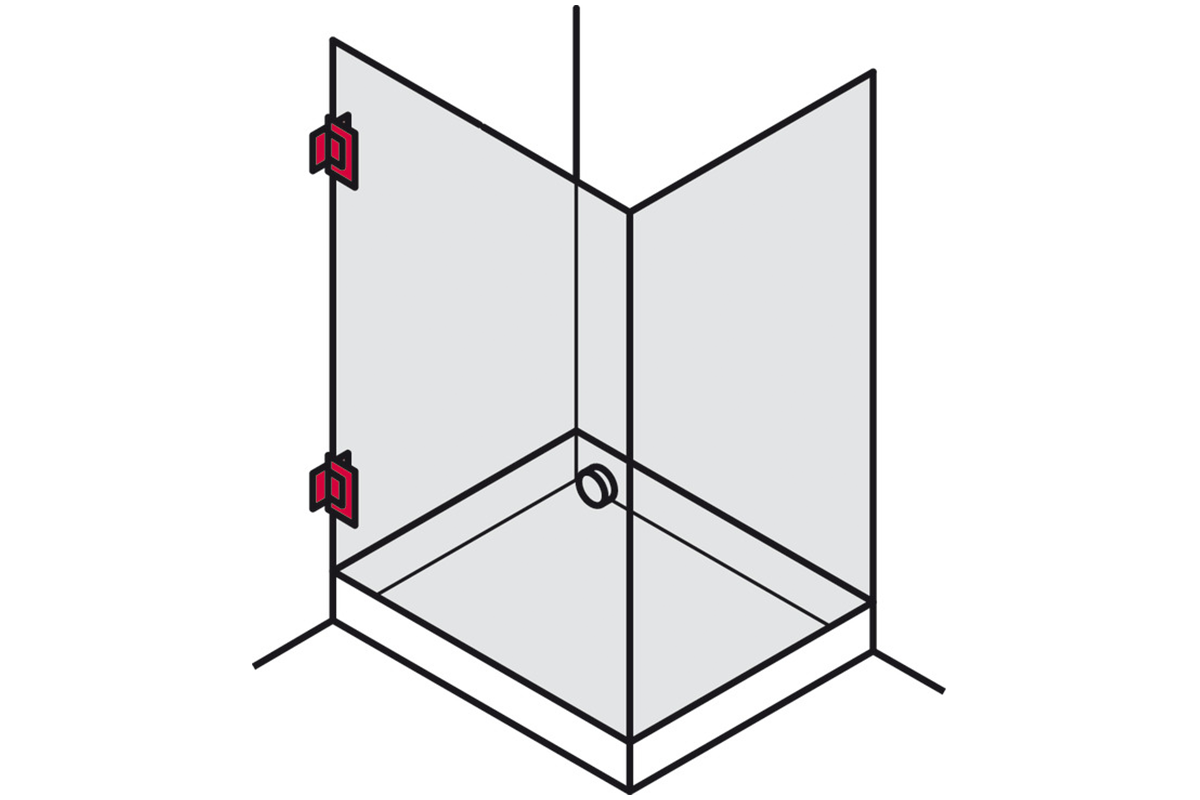

for wall-glass connection
Version
Straight
Adjustable
With automatic closing from opening angle 25°
Opening direction
opening at both sides
Product Material
Brass
Load bearing capacity
≤36 kg, with 2 door hinges
Mounting
For DIN left and DIN right hand use
Installation
for screw fixing,
For clamp fixing: With hex socket head screws
Order reference
Glass door seal not supplied, please order separately.
Fixing material supplied.
Supplied with
Fixing material
Item code: 981.53.422
shower door hinge, Straight, adjustable, Aquasys, Datasheet
