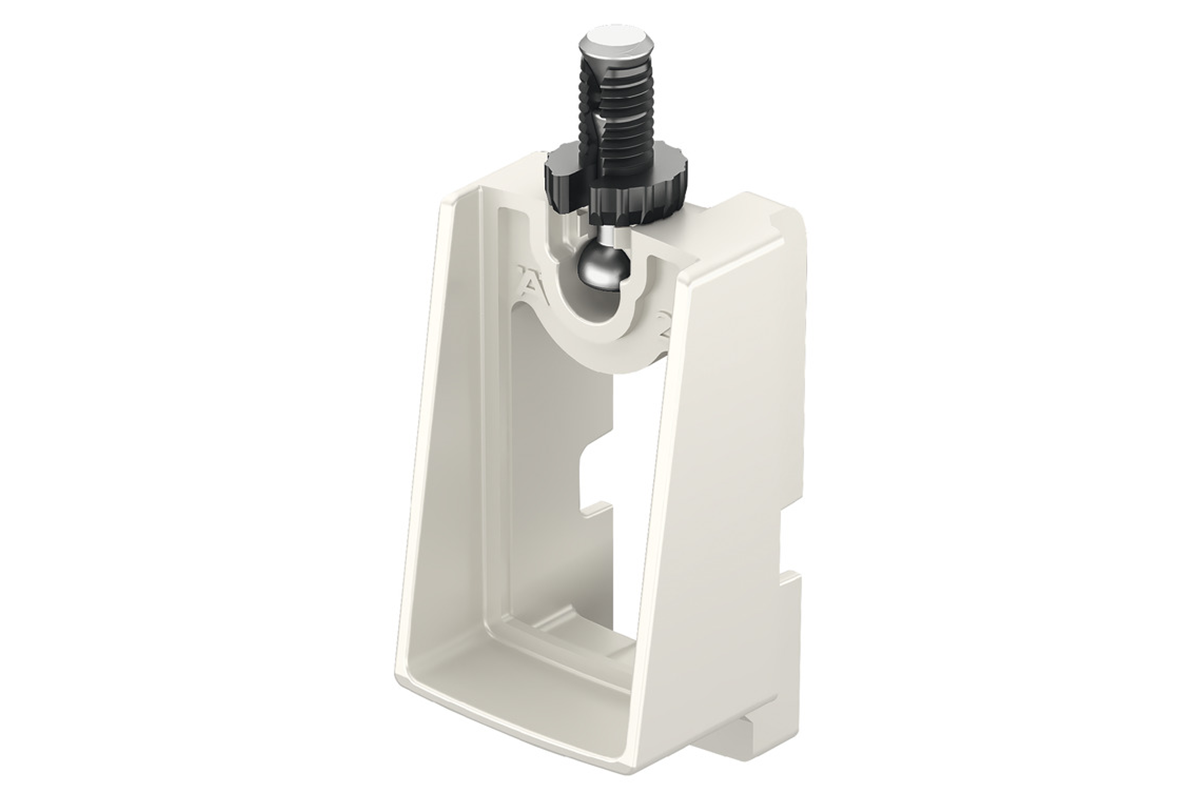

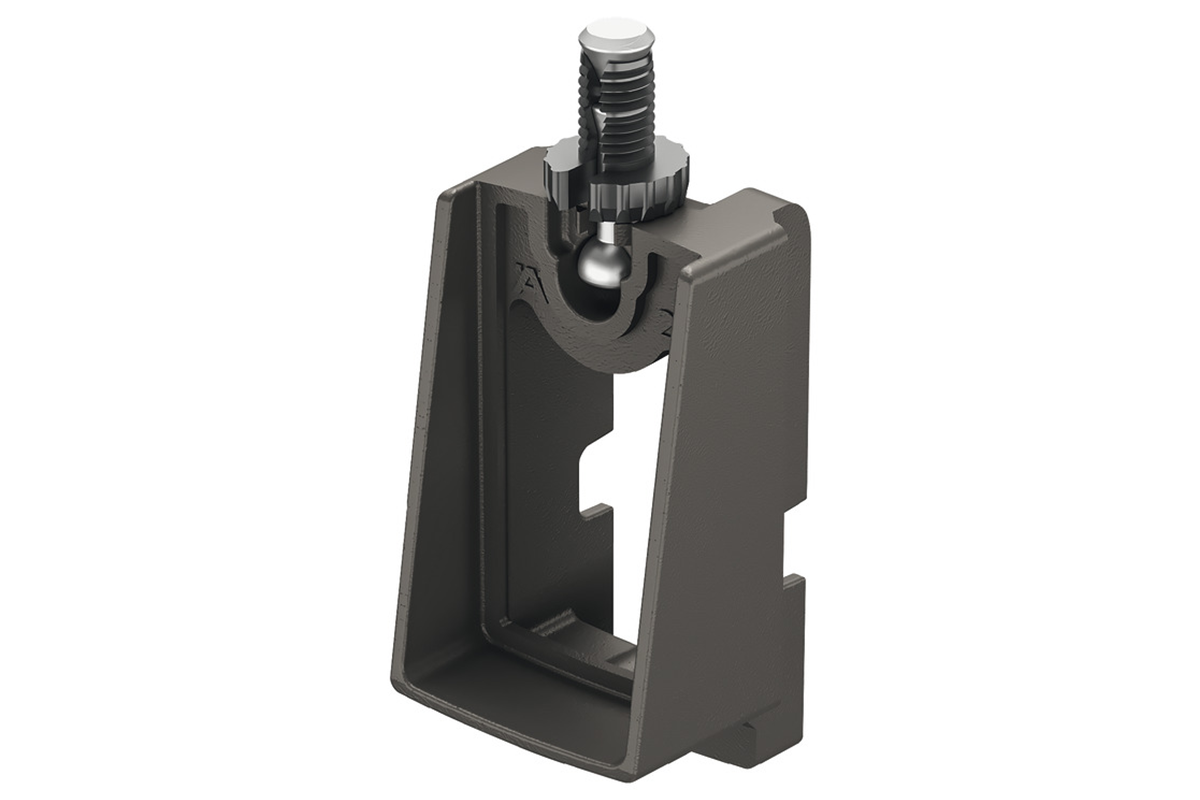

Rail end support, For Häfele Dresscode wardrobe rail, straight-edged
Rail end support, For Häfele Dresscode wardrobe rail, straight-edged
Supplier:
Häfele
Category:
Furniture & Living Solutions
Rail end support, For Häfele Dresscode wardrobe rail, straight-edged
Can be freely positioned in the 32 mm interval system
Easy installation without tools
Concealed fixing
- Easy installation without tools

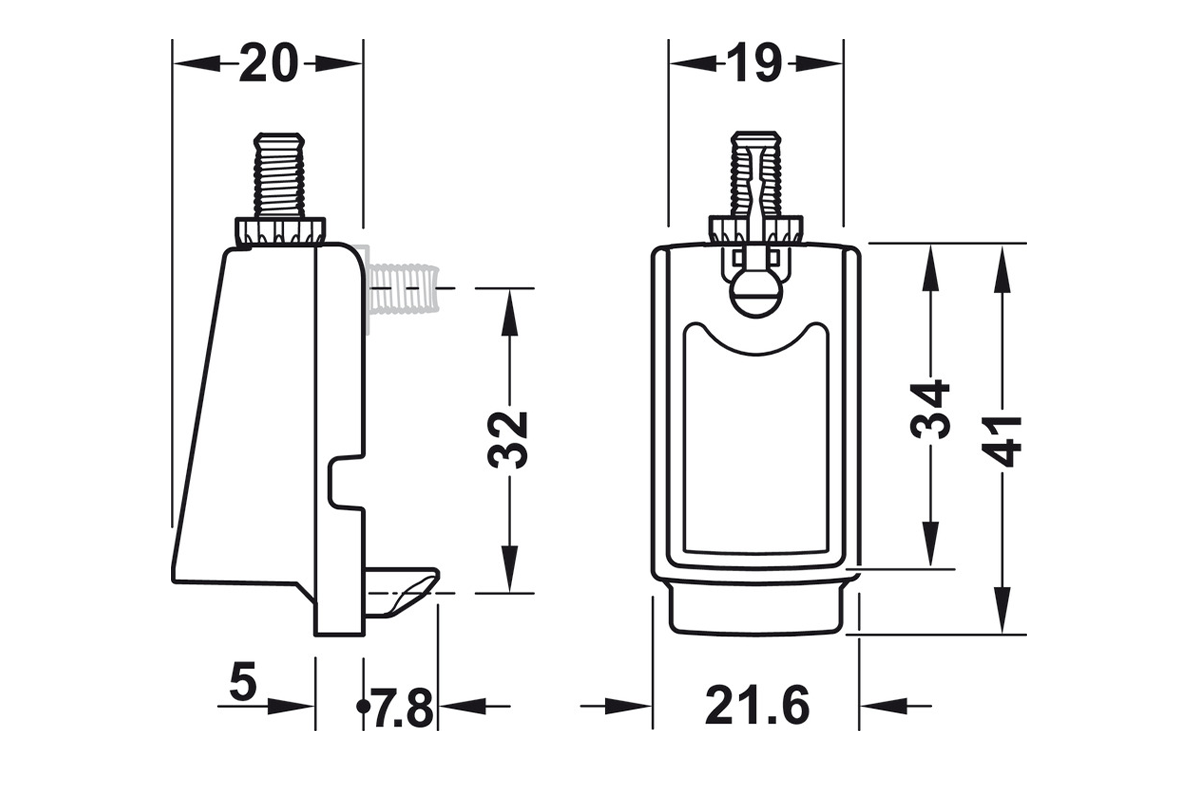

Dim. (W x H x D)
20 x 41 x 21.6 mm
Material
Zinc alloy
For wardrobe rail
rectangular 34 x 18 mm

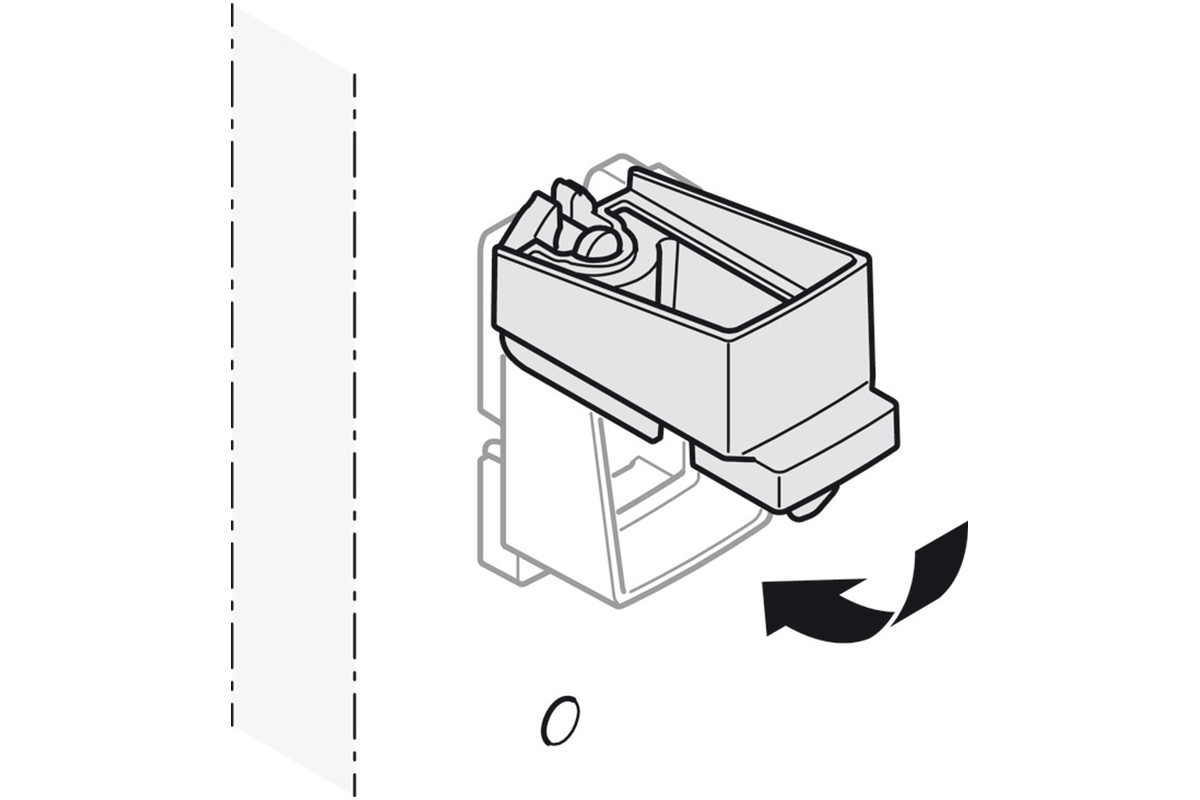

Installation
for push fitting into 5 mm drill holes without tools

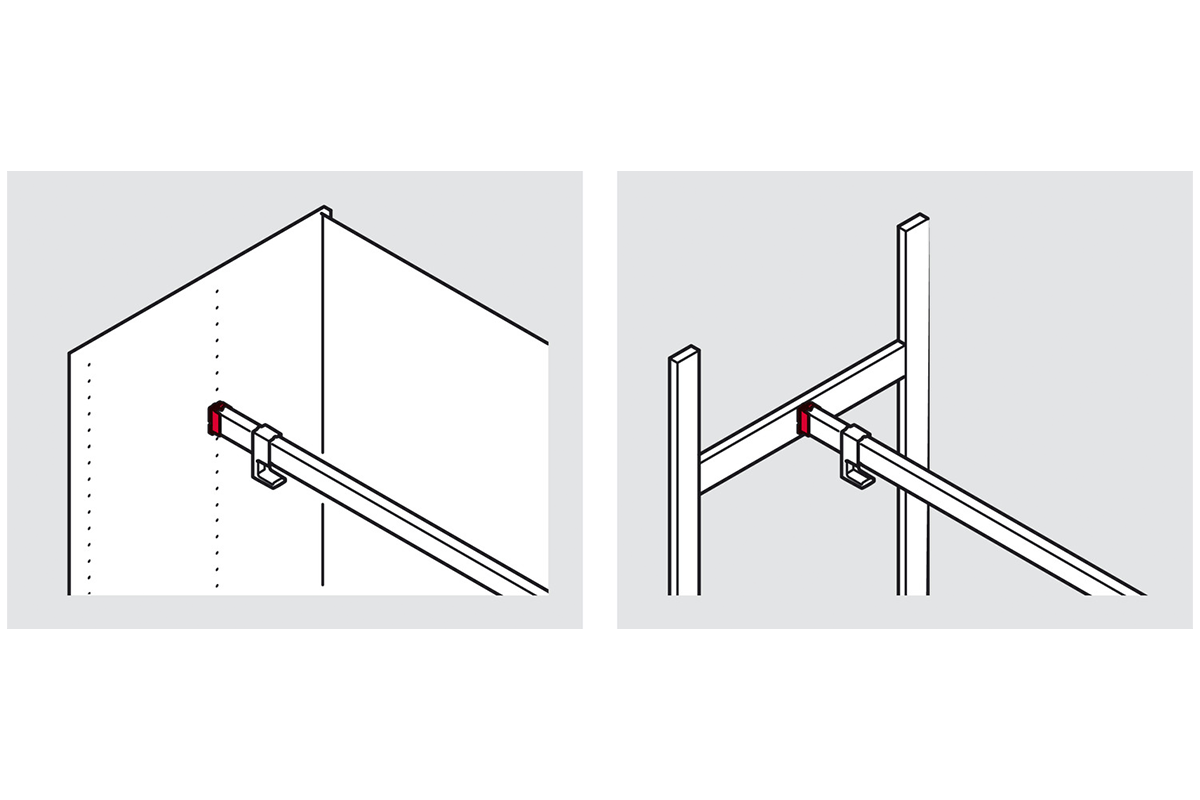

On side panel inside the cabinet or on the Häfele Dresscode aluminium frame system
Order reference
Wardrobe rail length = internal cabinet width – 26 mm
Supplied with
2 Rail end support
Additional information attributes
Load bearing capacity: 40 kg with wardrobe rail 1,000 mm in accordance with DIN 68890:2009
Item code: 803.17.720
Rail end support, For Häfele Datasheet
