Pull-out, Häfele, for installation behind fronts
Pull-out, Häfele, for installation behind fronts
Item code: 549.37.700 , 549.37.300
Load bearing capacity 12 kg, wooden shelf, anthracite powder coated, black
For cabinet width: 150 mm, load bearing capacity 12 kg, wooden shelf
Article details
- 3D adjustment via front connection

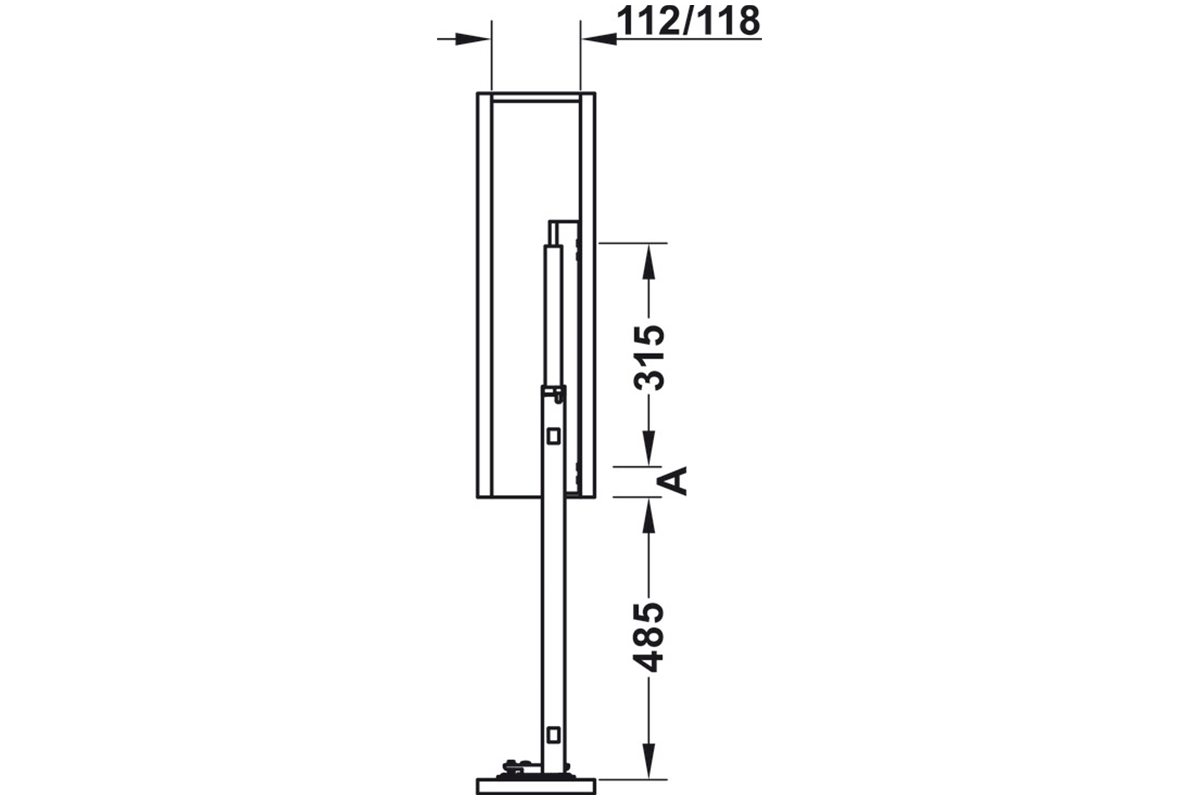

For cabinet width
150 mm
For internal cabinet width
≥112 mm
For internal cabinet depth
≥515 mm
For internal cabinet height
515 – 600 mm
Mounting
Right-mounted
Width
95.0 mm
Depth
485.0 mm
Type of pull out
Full extension
Load bearing capacity
12.0 kg
Installation depth
515.0 mm
