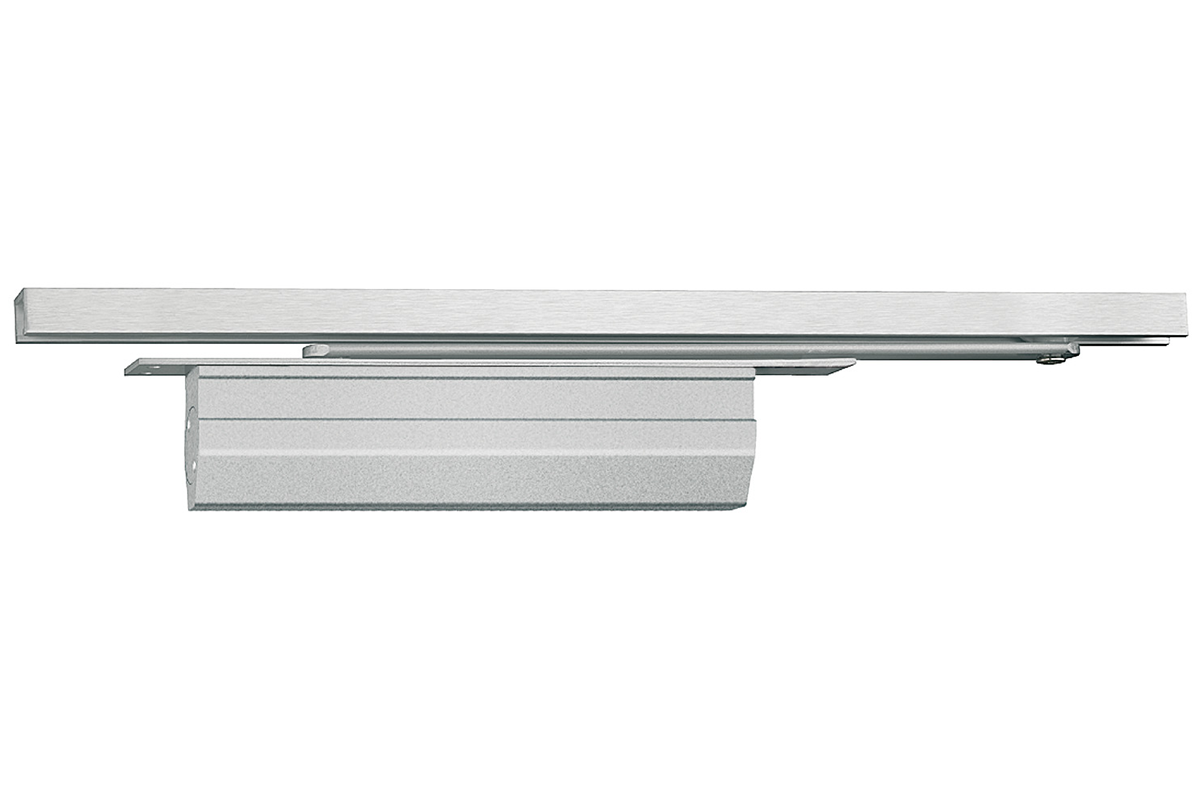

Overhead door closer, DCL 34, concealed, EN 3, Startec
Overhead door closer, DCL 34, concealed, EN 3, Startec
Supplier:
Häfele
Category:
Architectural Ironmongery
Overhead door closer, DCL 34, concealed, EN 3, Startec
With hold-open function
Article details
Mounting
For DIN left and DIN right hand use
Fire resistance
Yes
Area of application
Door closer and guide rail for concealed installation
Version
With hold-open function
For number of doors
1-leaf doors
Adjustment facility
Closing speed continuously adjustable
latching action continuously adjustable
Closing force
3
For door width
≤950 mm
For door thickness
≥ 40 mm
Opening angle
≤120 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|3|0|1|3
Item code: 931.84.279
Overhead door closer, DCL 34, concealed, EN 3, Startec,Datasheet
