Mortise lock, for hinged doors, Startec, grade 3, profile cylinder
Mortise lock, for hinged doors, Startec, grade 3, profile cylinder
Supplier:
Häfele
Category:
Architectural Ironmongery

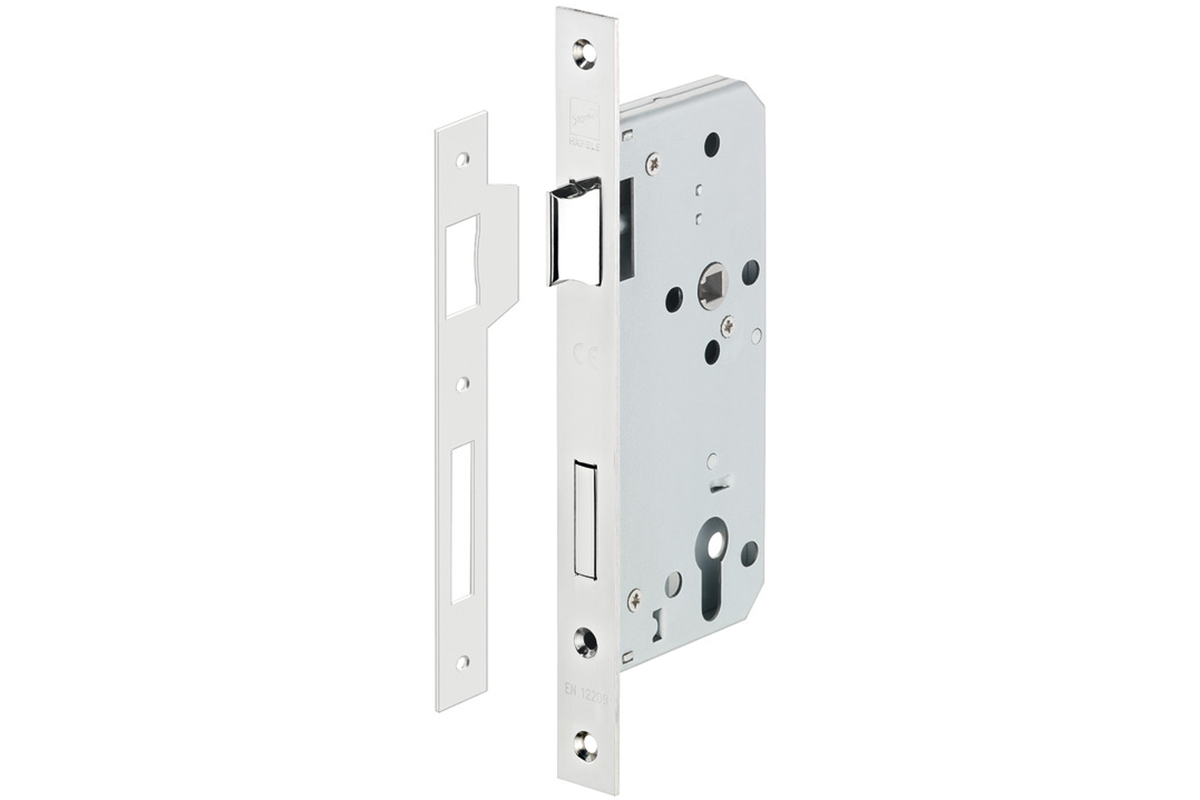

Mortise lock, for hinged doors, Startec, grade 3, profile cylinder
for fire resistant/smoke control doors, Forend: 24 mm, square, satin stainless steel

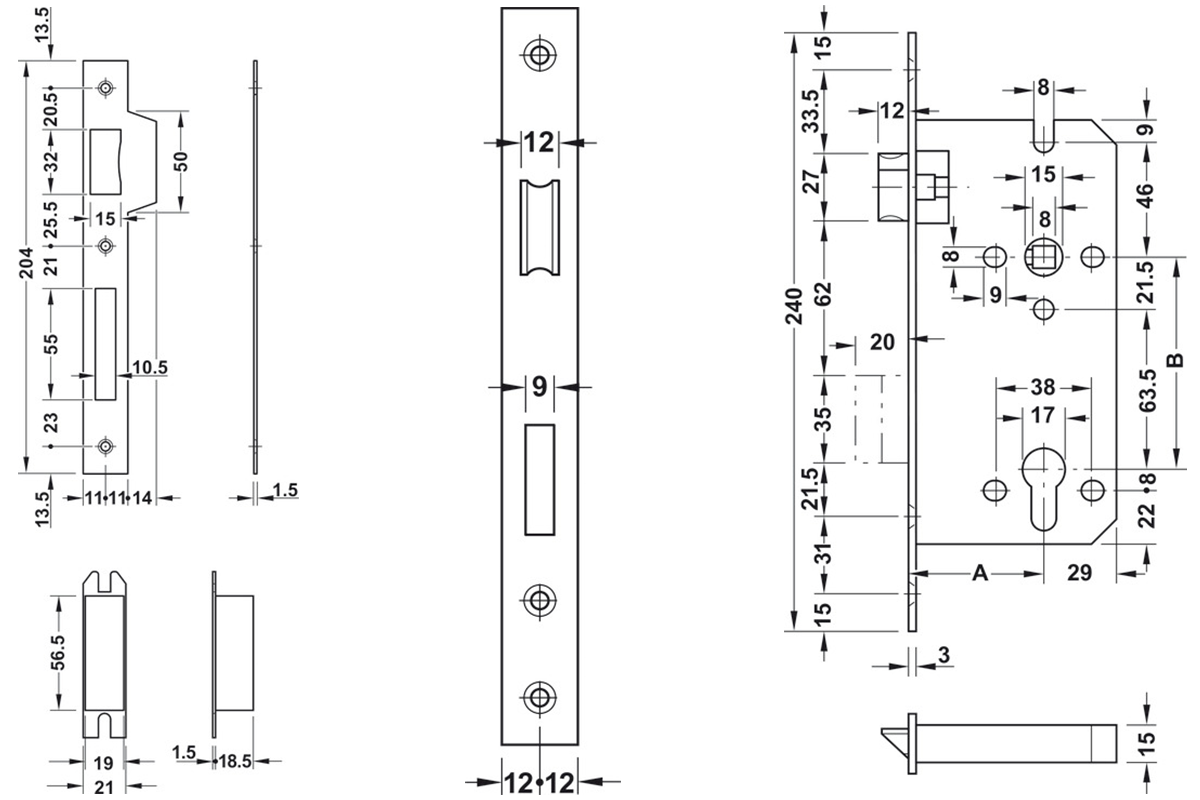

Article details
Type of locking
PC
Distance
85.00 mm
Forend
Flat forend edged
Forend width
24.00 mm
Door construction
Unrebated
Lever follower
8.00 mm
Mounting
DIN left/right (reversible)
Material
Forend, latchbolt and deadbolt: Stainless steel
Lock case: Steel
Deadbolt pocket: Plastic
Latchbolt version
Standard latch
For door type
Hinged doors, Fire resistant and smoke control doors
Version
Strike plate with bolt pocket
Colour/finish
Matt
Forend length
240.00 mm
Deadbolt version
Standard deadbolt
Standard
Certified in compliance with EN 12209: 2003
Classification in compliance with EN 12209
3|X|8|1|0|G|3|B|C|2|0
Supplied with
1 mortise lock
1 flanged striking plate
2 deadbolt pockets
Item code: 911.02.165
Mortise lock, for hinged doors, Startec, grade 3, profile cylinder, Datasheet
