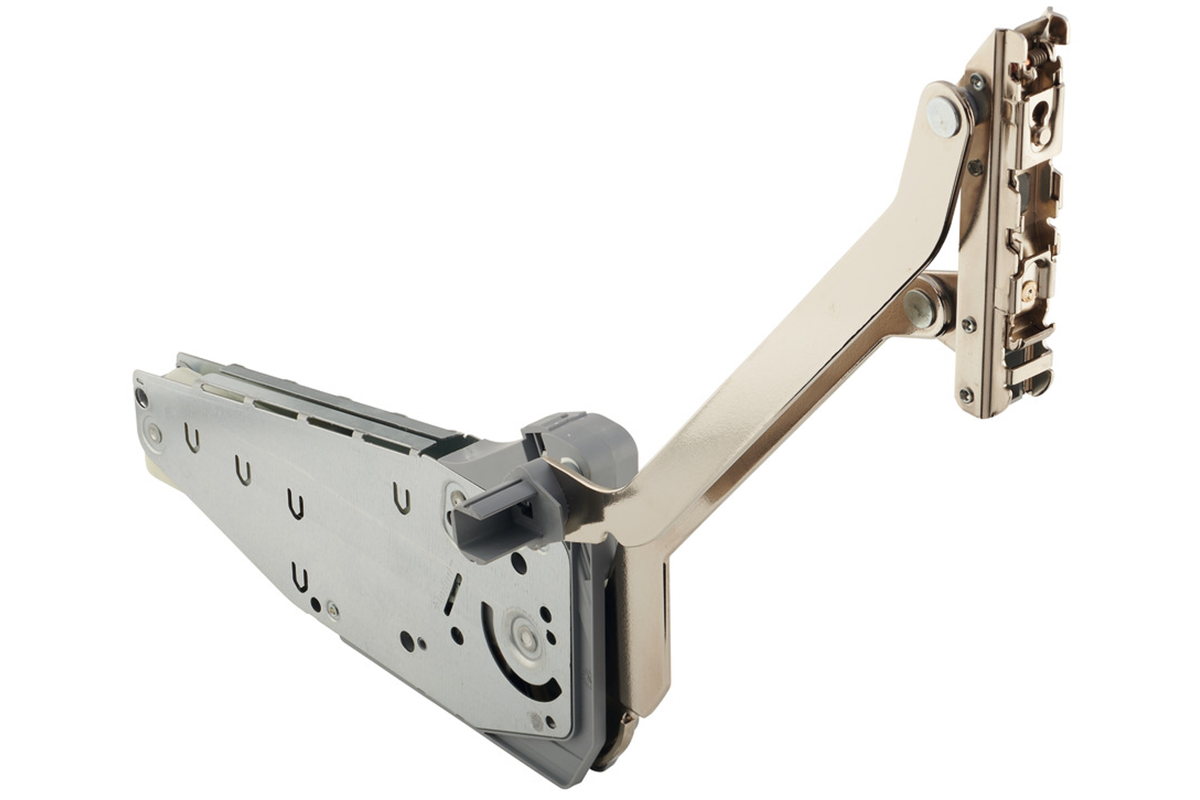

Lift up front fitting, Free up
Lift up front fitting, Free up

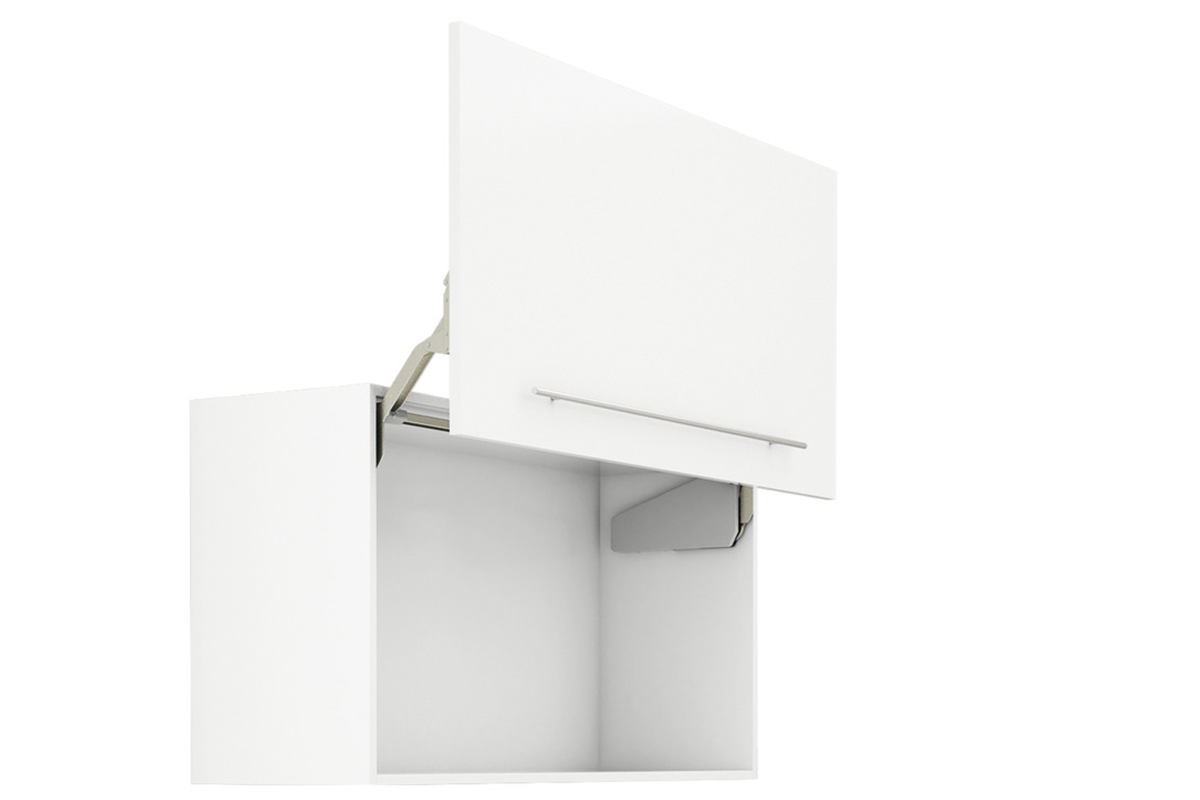

For one-piece flaps made of wood, glass or with aluminium frame, Cabinet height: 430-600 mm, flap weight: 7.4-14.6 kg
Article details
- Ideal for cabinets with front panels above
Modern design thanks to clear lines
Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel
Efficient and time-saving processing thanks to pins, pre-mounted Euro screws, quick fixing system for front panel and cross bar, and eccentric front panel adjustment
Area of application
For one-piece flaps made from wood, glass or with aluminium frame
Material
Fitting: Plastic, steel
Colour/finish
Fitting: Nickel plated
Lid material
Wood, Glass, Aluminium frame
Flap type
one-piece
Adjustment facility
Height adjustment ±1.5 mm
Side adjustment ±1.5 mm
Tilt angle ±1.5°
Holding power
Item code: 372.33.633
Lift up front fitting, Free up , Datasheet
