Floor Springs, DCL 41
Floor Springs, DCL 41
Hold-open function at 90°
Article details
Closing force EN
3
Hold-open angle
Hold-open angle 90°
For door width max.
950.0 mm
For door weight
≤105 kg
Mounting
For DIN left and DIN right hand use
Area of application
For double action doors
Version
With hold-open function for door opening angle 90°
Replaceable pivot, with top centre set
Cover plate material
Stainless Steel
Cover plate finish
satin-finish
Closing force
3
Opening angle max.
130.0 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|3|0/1|1|3
Supplied with

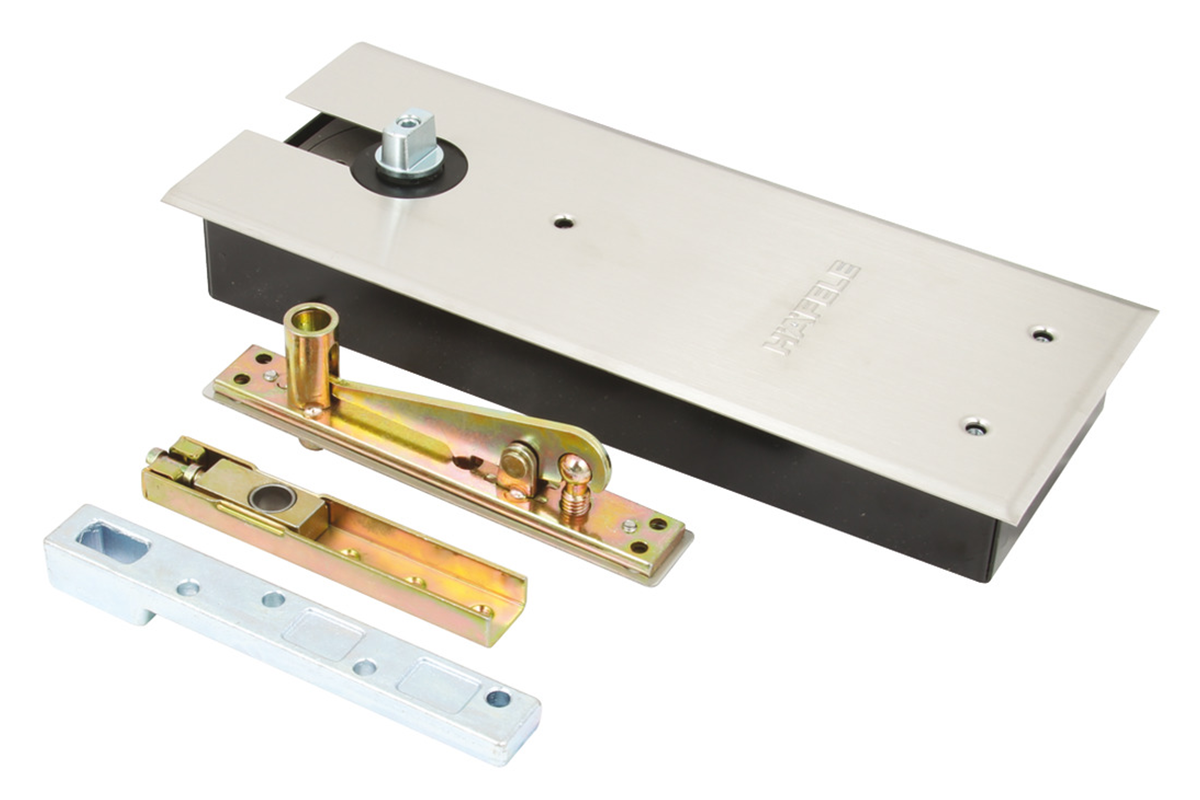

1 floor spring

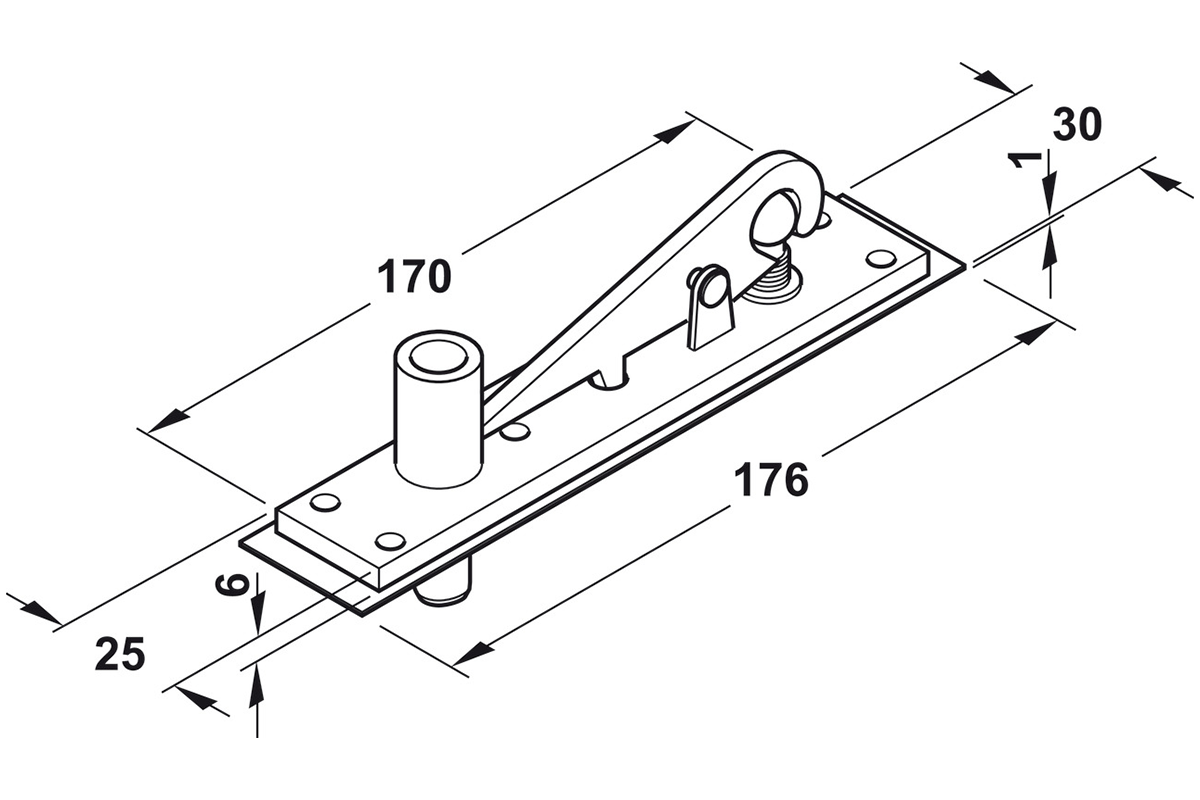

1 door set

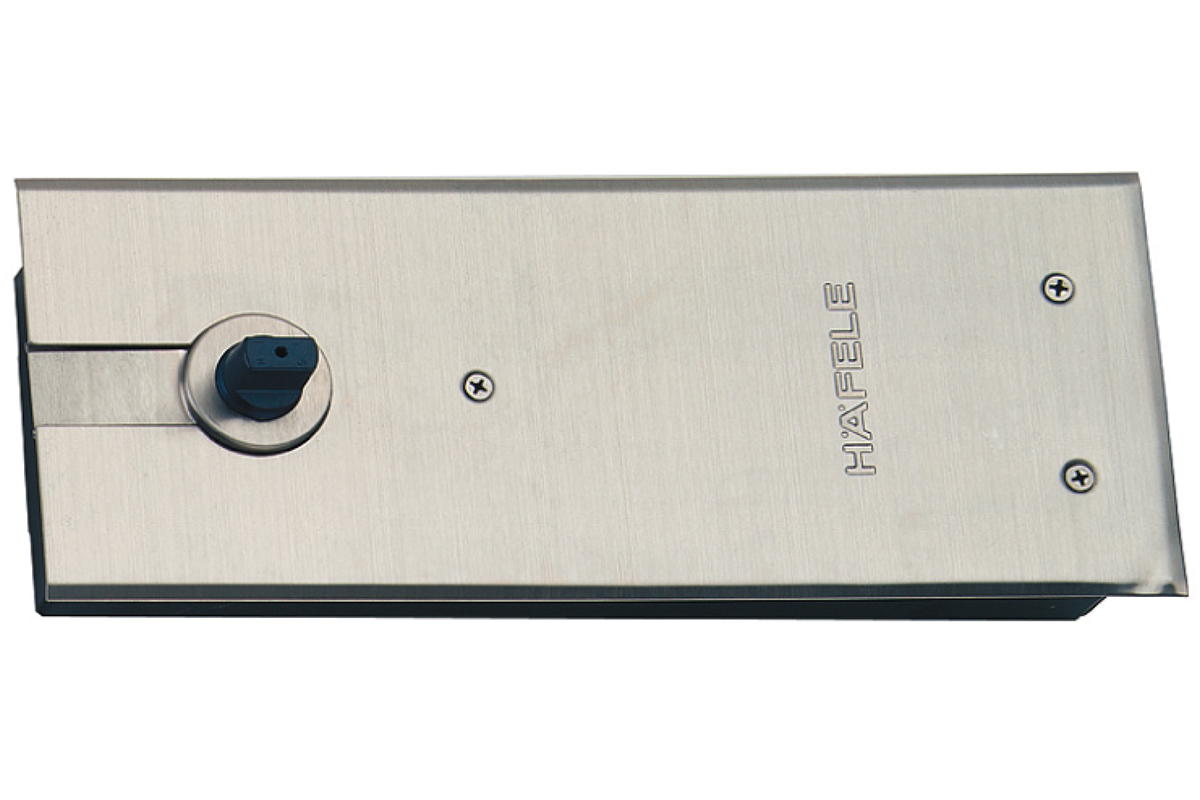

1 cover plate
1 set of fixing material

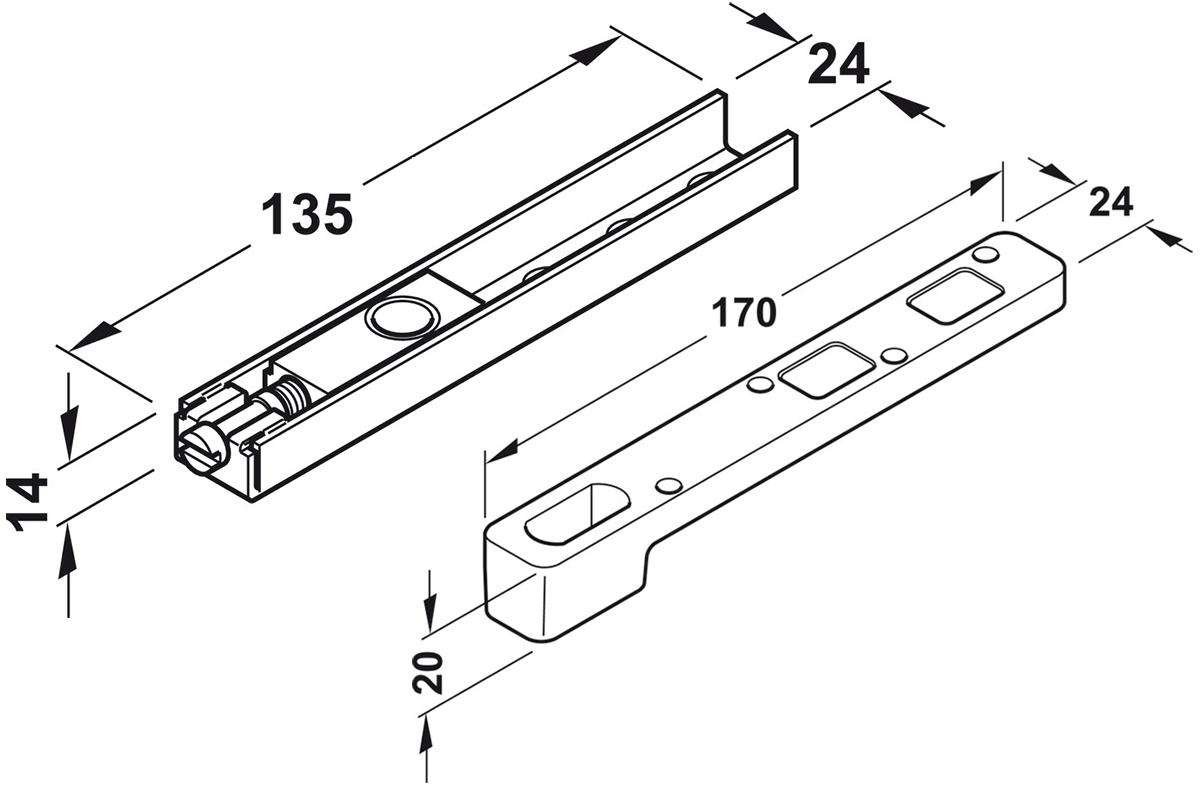

1 top centre set
Item code: 932.84.030
Floor Springs, DCL 41, Datasheet
