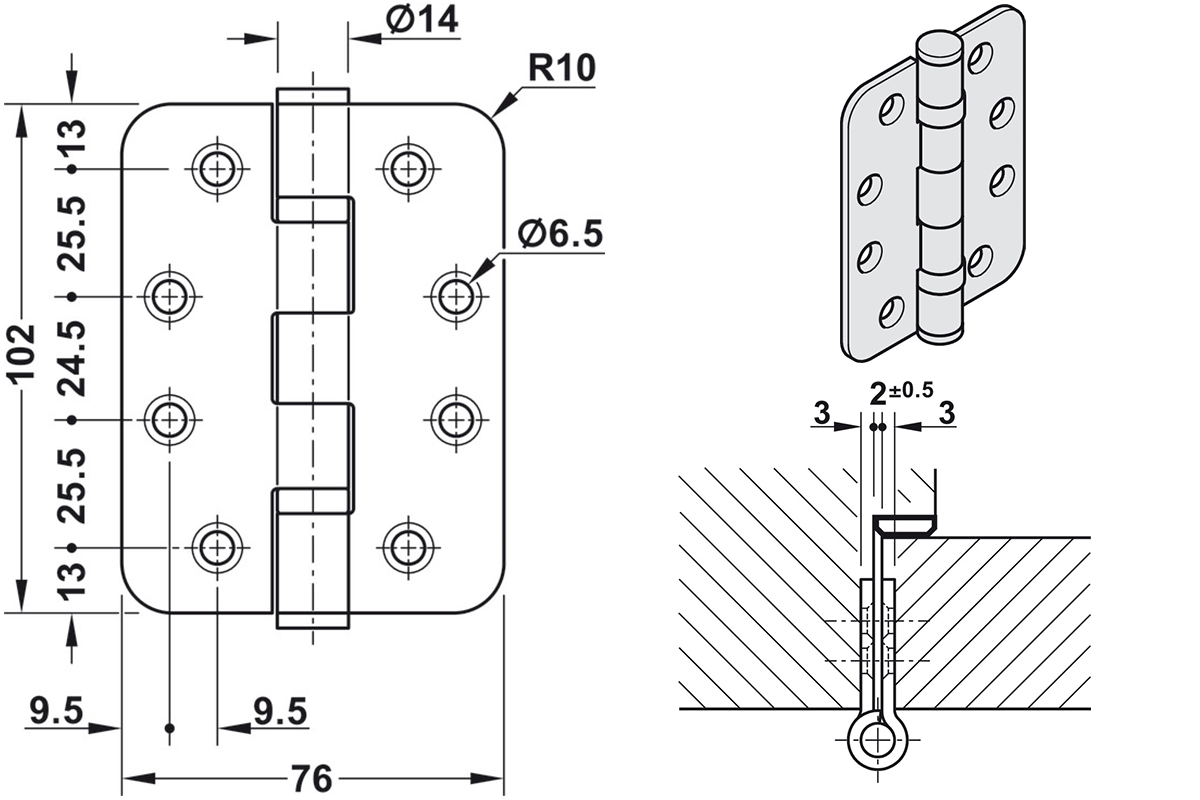

Fire-rated Butt hinge-2 BB
Fire-rated Butt hinge-2 BB

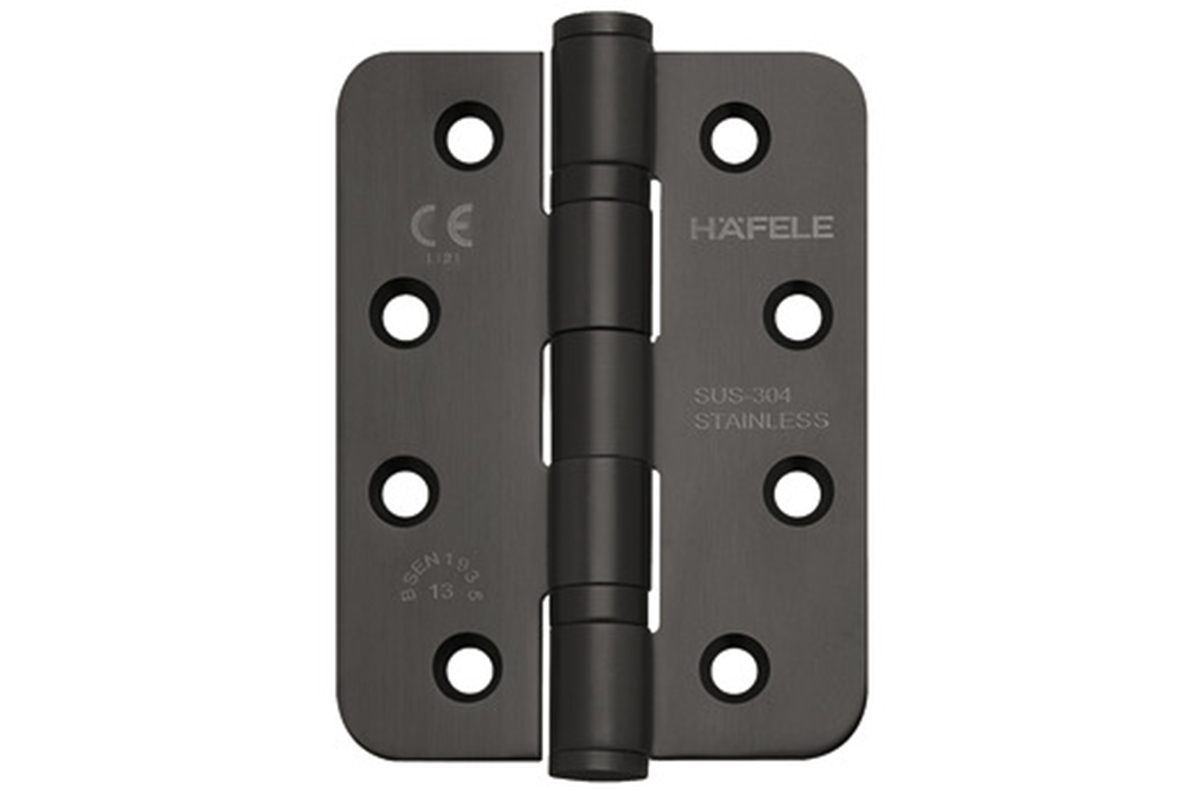

Model: DHB 3221, matt black, PVD coated
Model: DHB 3221, brass coloured polished, PVD coated
Item code: 926.98.053 , 926.98.058
Article details
Mounting
For DIN left and DIN right hand use
Radius
10,00 mm
Area of application
For wooden frames
for flush interior doors
For frame type
Wooden frame
Max. door weight for 2 hinges
120,00 kg
Knuckle length
102,00 mm
Router bit Ø
20,00 mm
Bearing type
With fixed pin, Knuckle with two ball bearings
Standard
Certified in compliance with EN 1935:2002
Grade
4|7|6|1|1|4|0|13
