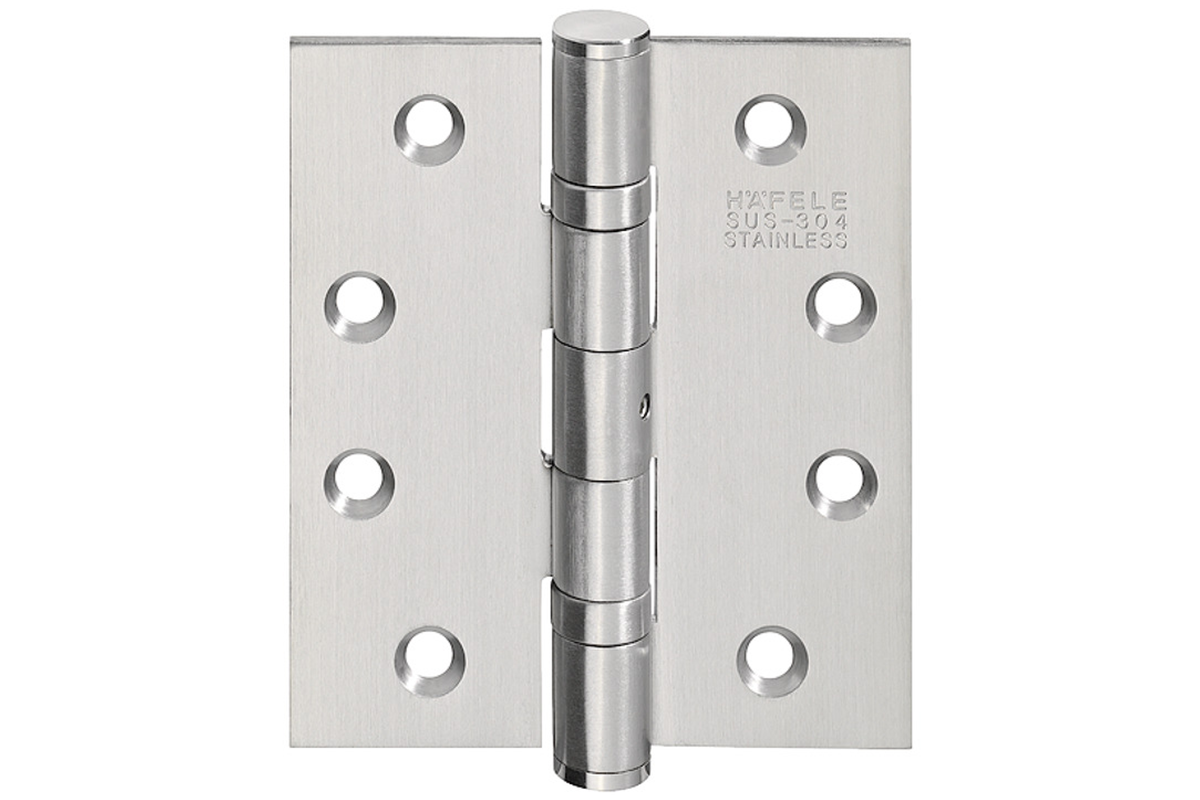

Drill-in hinge, Startec, for flush doors up to 58 kg
Drill-in hinge, Startec, for flush doors up to 58 kg
Supplier:
Häfele
Category:
Architectural Ironmongery
Drill-in hinge, Startec, for flush doors up to 58 kg
size 102 mm, Satin stainless steel, up to 58 kg
Article details
Mounting
For DIN left and DIN right hand use
Flange shape
square
Colour/finish
matt
Product Material
Stainless steel

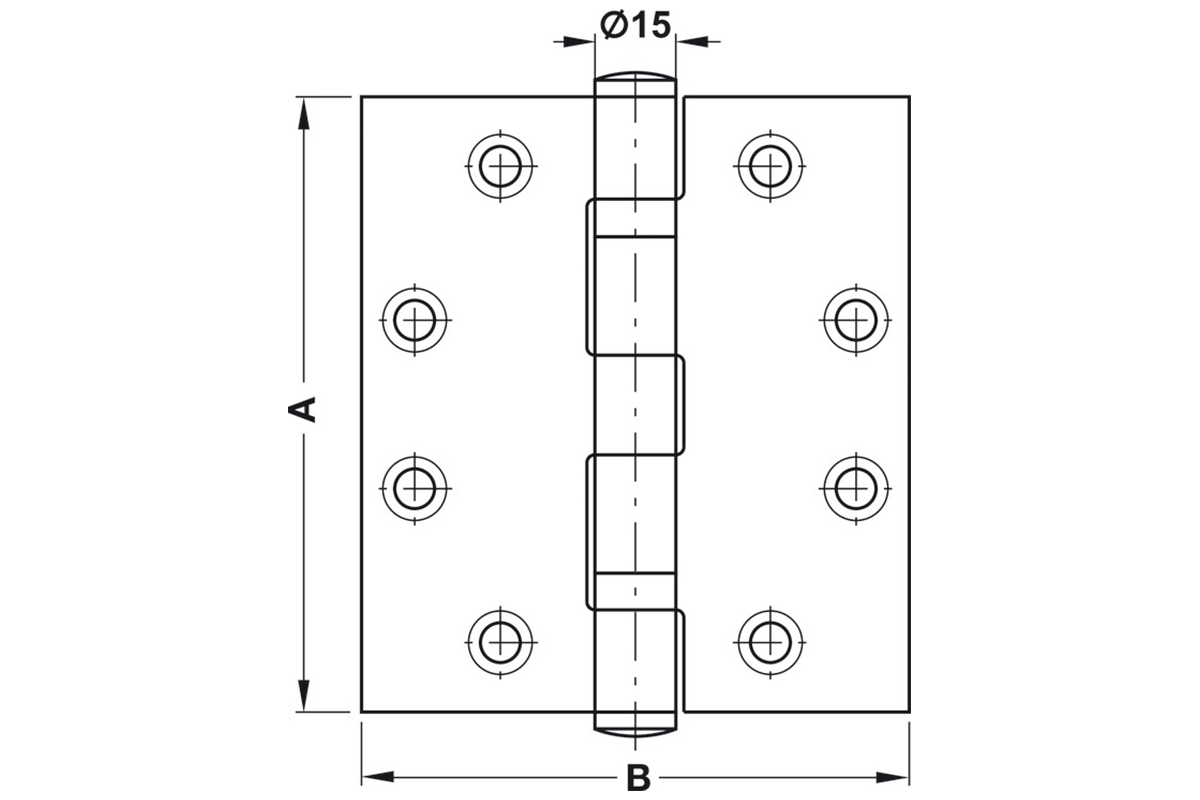

Knuckle diameter
15.0 mm

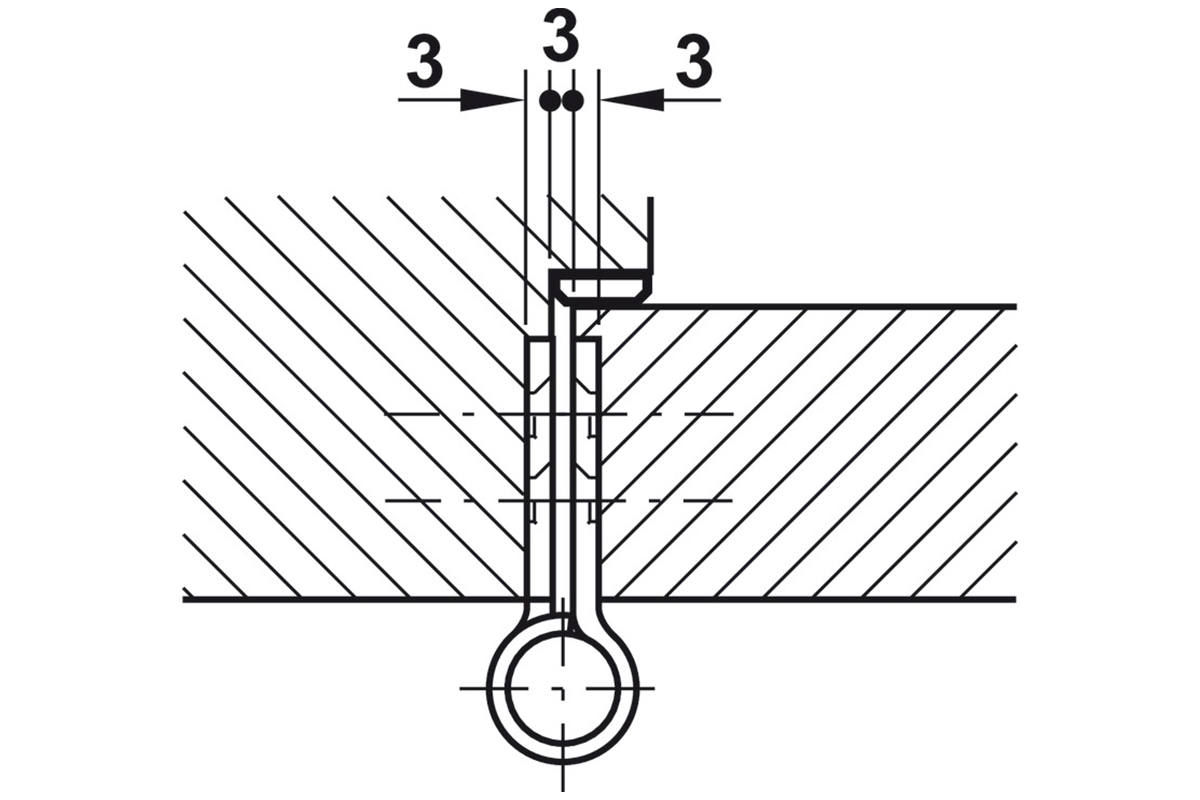

Flange thickness
3.0 mm
Flange height
102 mm
Model series
Butt hinge
Area of application
For wooden or metal frames
for flush wooden or metal doors
For door type
Wooden door leaf, metal door
For frame type
Wooden frame, Metal frame
Max. door weight for 3 hinges
58.0 kg
Knuckle length
102.0 mm
Bearing type
With fixed pin, Knuckle with two ball bearings
Item code: 926.29.603
Drill-in hinge, Startec, for flush doors up to 58 kg,Datasheet
