Drill-in hinge, for flush interior doors up to 40 kg, Startec
Drill-in hinge, for flush interior doors up to 40 kg, Startec
Supplier:
Häfele
Category:
Architectural Ironmongery

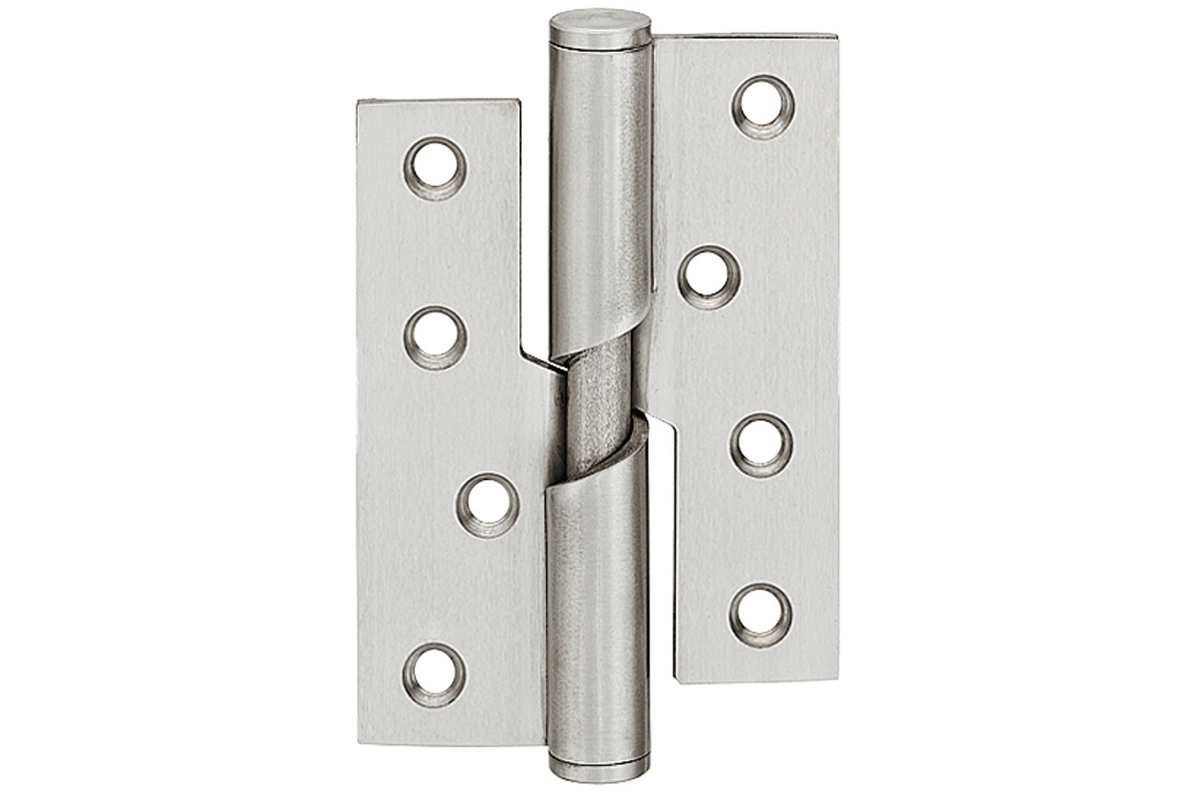

Drill-in hinge, for flush interior doors up to 40 kg, Startec
size 101 mm, rising, DIN right hand
Article details
Flange shape
square
Flange width
30 mm
Colour/finish
matt
Product Material
Stainless steel
Knuckle diameter
16.0 mm
Flange thickness
3.0 mm
Flange height
101 mm
Model series
Butt hinge
Area of application
For wooden frames,
for flush interior doors
For door type
Wooden door leaf
For frame type
Wooden frame
Max. door weight for 2 hinges
40.0 kg
Pin Ø
10.0 mm
Bearing type
With fixed pin
Item code: 926.26.103
Drill-in hinge, for flush interior doors up to 40 kg, Startec,Datasheet
