Door hinge, Startec H12 S, concealed, For flush interior doors up to 60 kg
Item code: 927.91.088 , 927.91.074 , 927.91.073

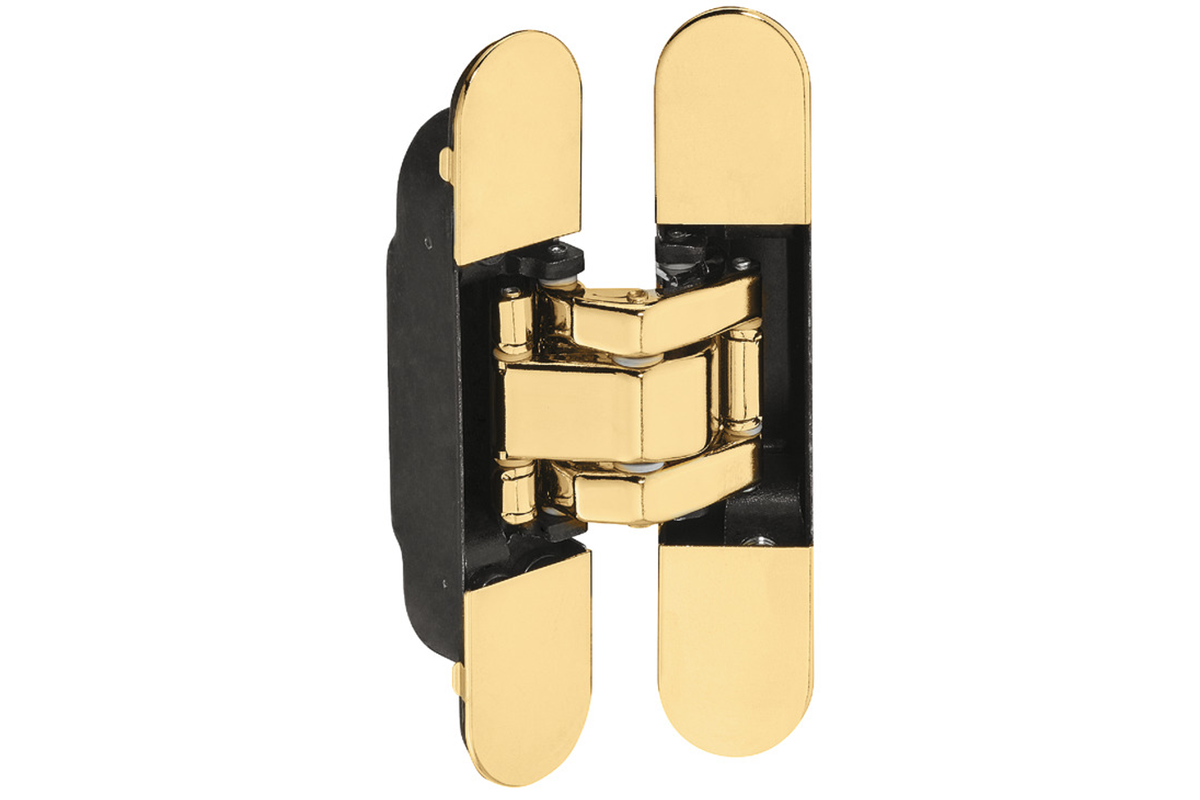

3D adjustable, size 110 mm, Polished

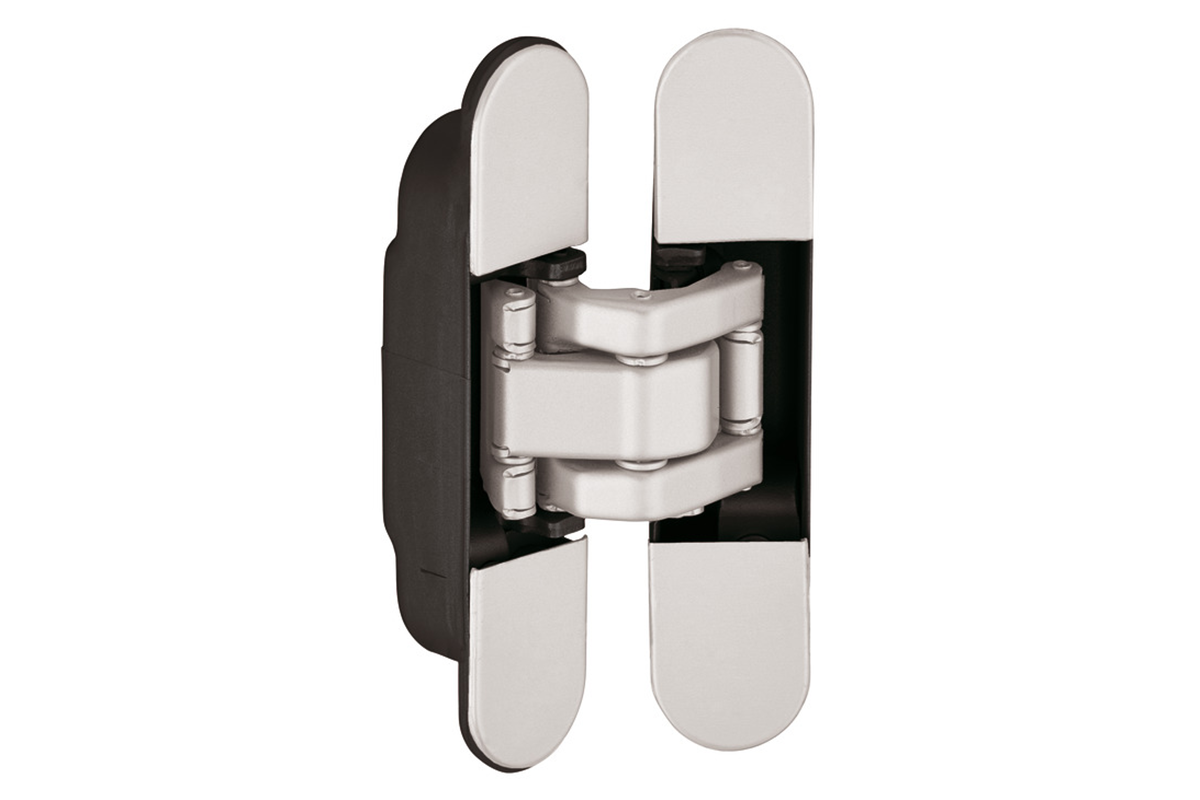

3D adjustable, size 110 mm, Matt chrome plated

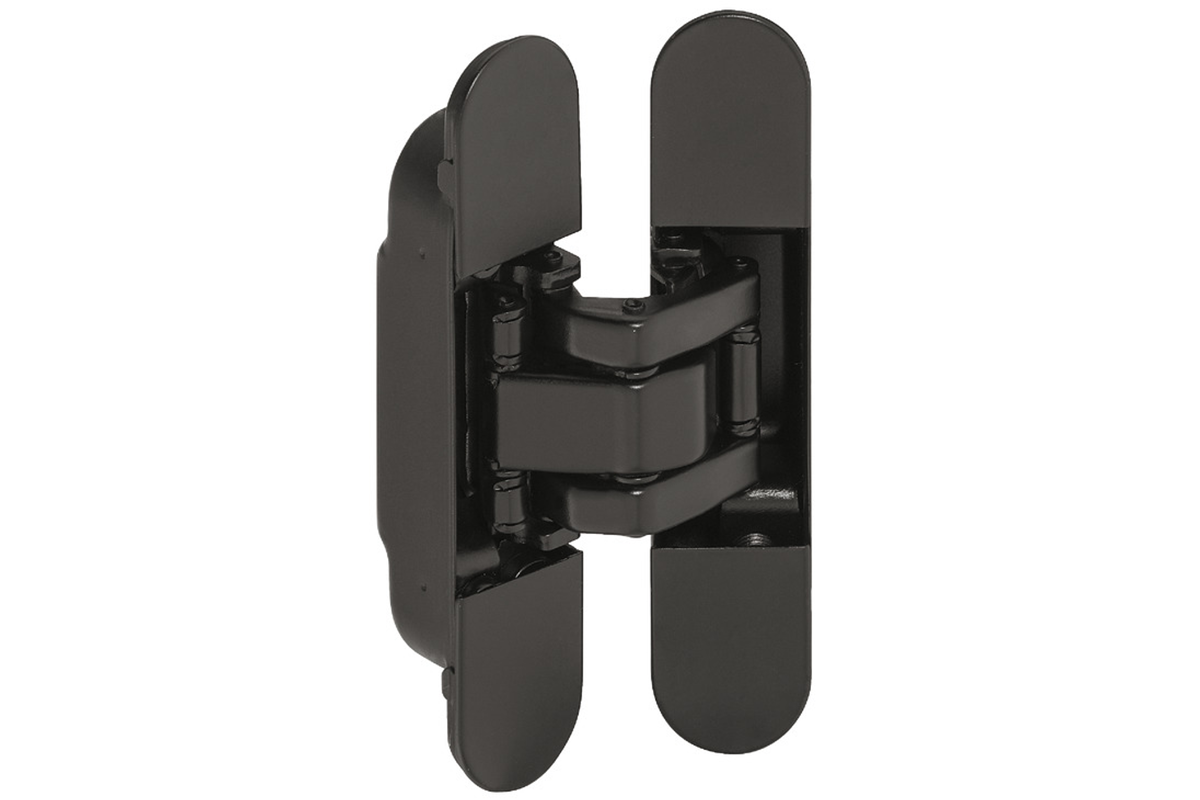

3D adjustable, size 110 mm, Matt black
Article details
Door width max.
900.0 mm
Flange shape
rounded
Flange width
24 mm
Product Material
Steel
Model
H12 S
Flange height
110 mm
Model series
H12 S
Area of application
for wooden frames,
for flush wooden interior doors
For door type
Wooden door leaf
For frame type
Wooden frame
Max. door weight for 2 hinges
60.0 kg
Opening angle
180.0 °
Door height max.
2,100.0 mm
Door thickness
≥32 mm
Adjustment facility
3DContinuous, Side: ±1 mm, Height: 2.5 mm, Closing pressure: ±1.5 mm
Order reference
Other finishes available on request
Item code: 927.91.088 , 927.91.074 , 927.91.073
