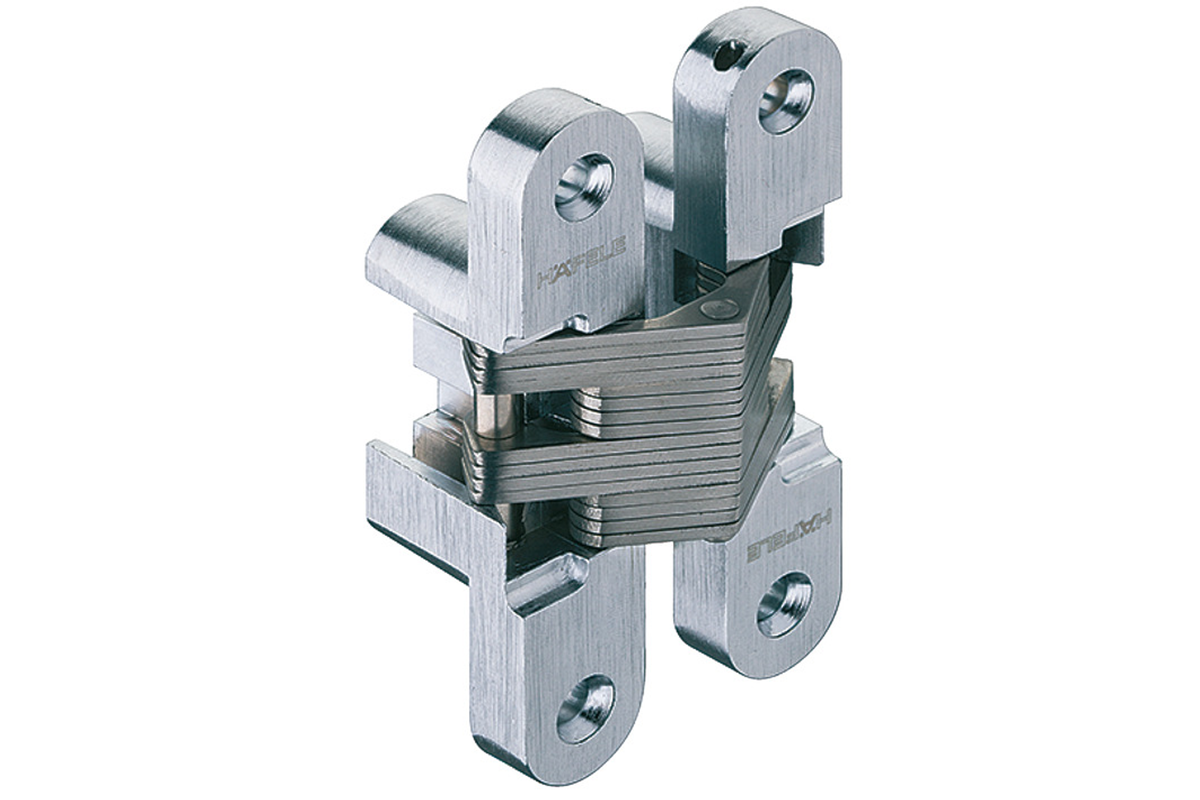

Door hinge, concealed, for flush interior doors up to 45 kg, Startec
Door hinge, concealed, for flush interior doors up to 45 kg, Startec
Supplier:
Häfele
Category:
Architectural Ironmongery
Door hinge, concealed, for flush interior doors up to 45 kg, Startec

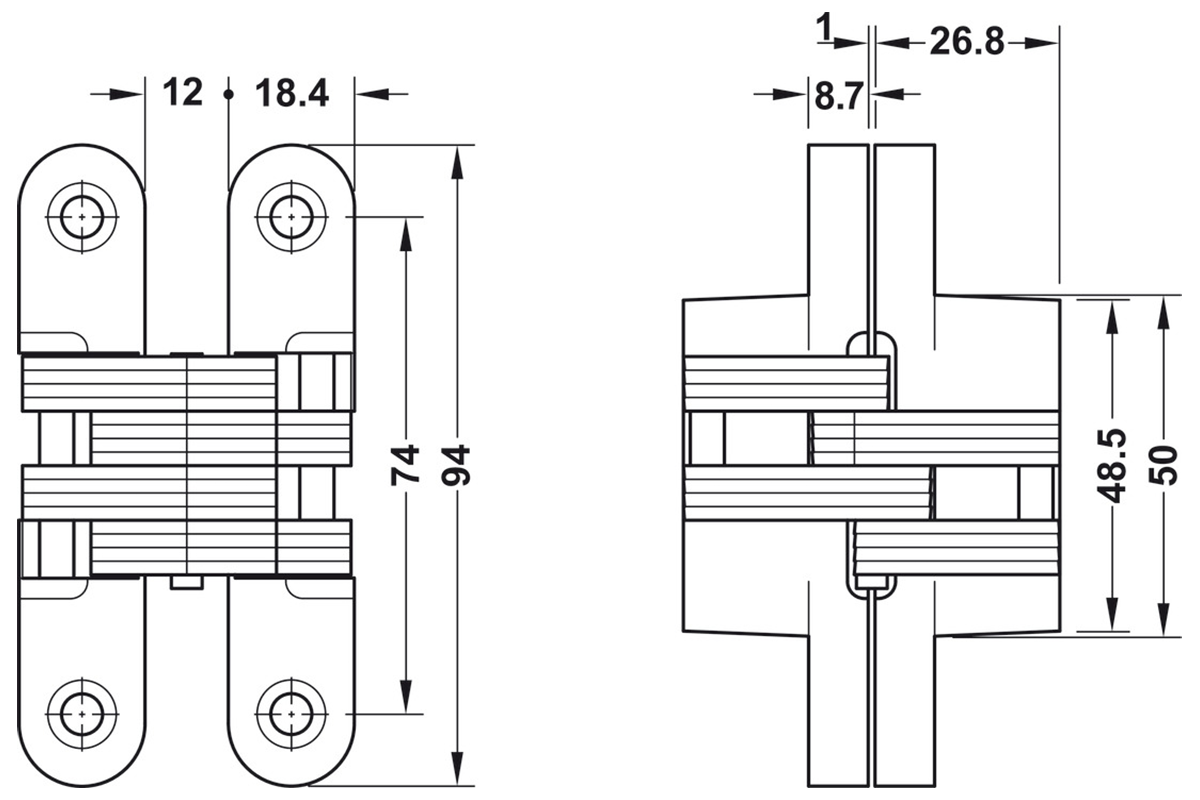

size 94 mm
Article details
Mounting
For DIN left and DIN right hand use
Flange shape
rounded
Flange width
18.4 mm
Colour/finish
matt, chrome plated
Product Material
Zinc alloy
Flange height
94 mm
Area of application
for wooden frames,
for flush wooden interior doors
For door type
Wooden door leaf
For frame type
Wooden frame
Max. door weight for 2 hinges
45.0 kg
Opening angle
180.0 °
Door thickness
≥25 mm
Item code: 927.97.000
Door hinge, concealed, for flush interior doors up to 45 kg, Startec,Datasheet
