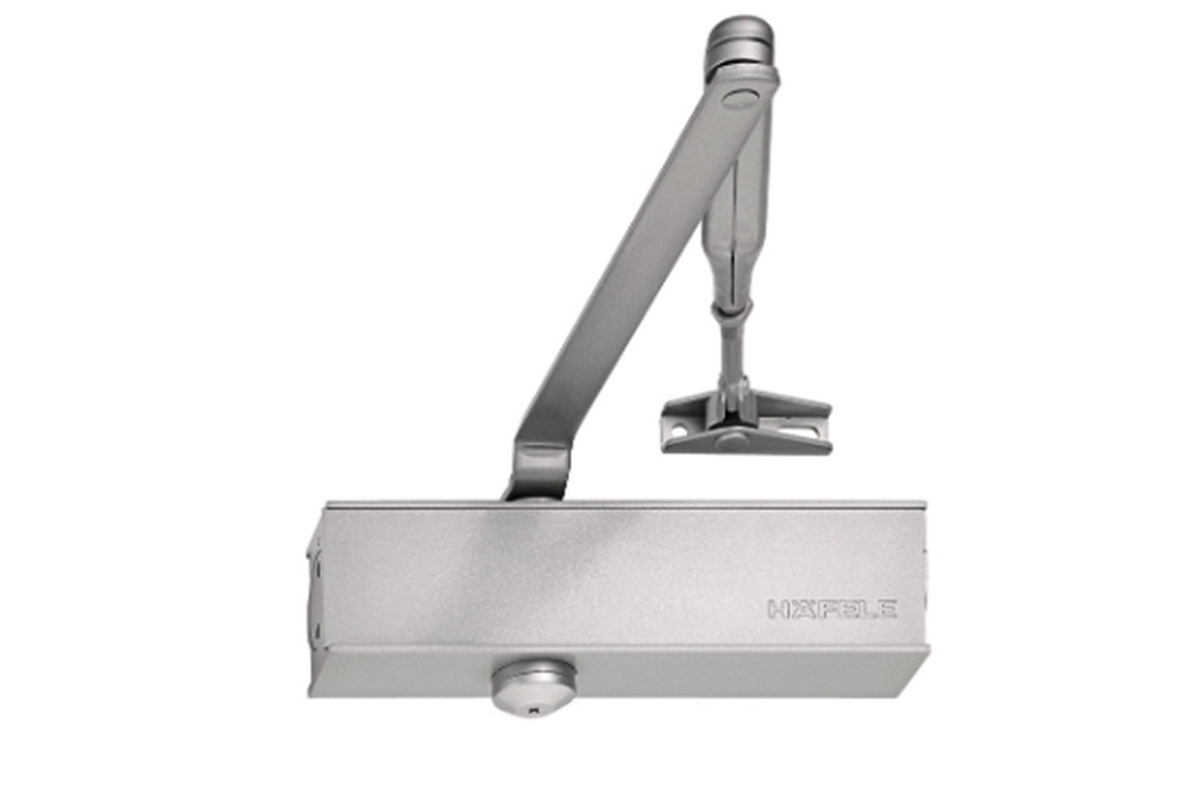

Door closer, DCL 15
Door closer, DCL 15
with standard arm, silver colour lacquered
Article details
Mounting options

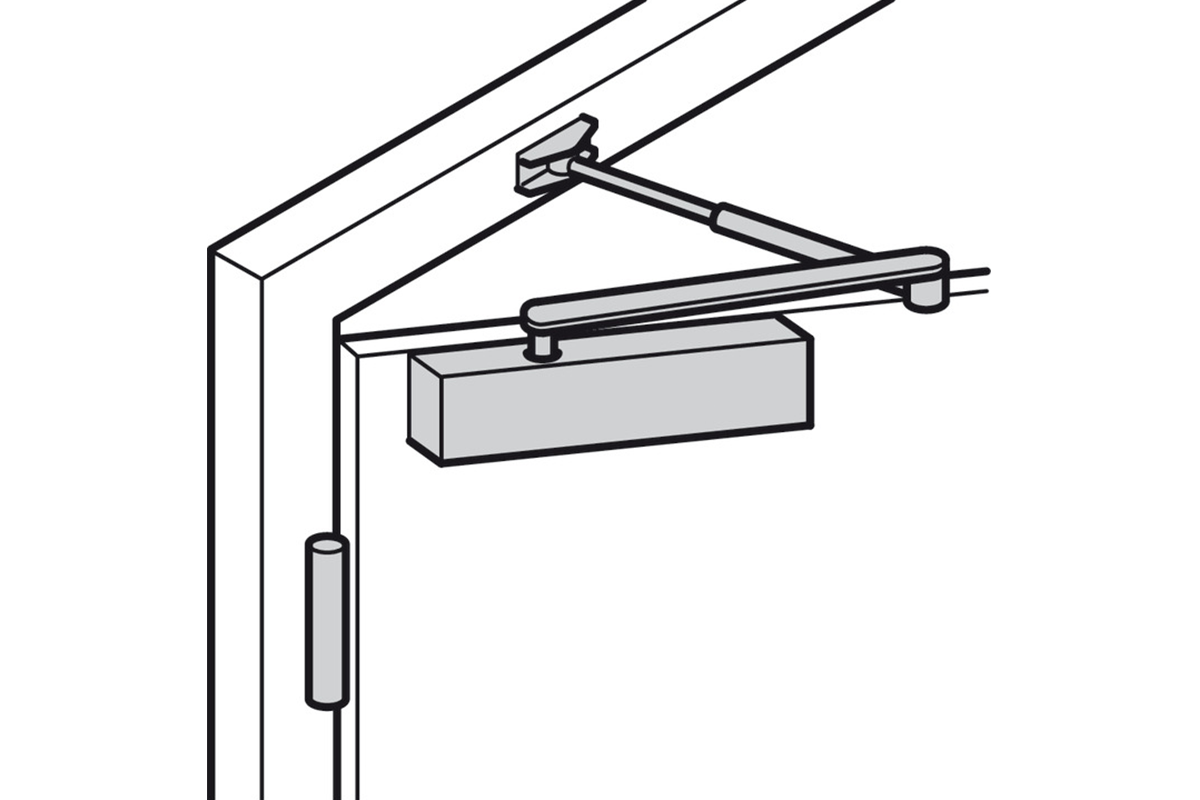

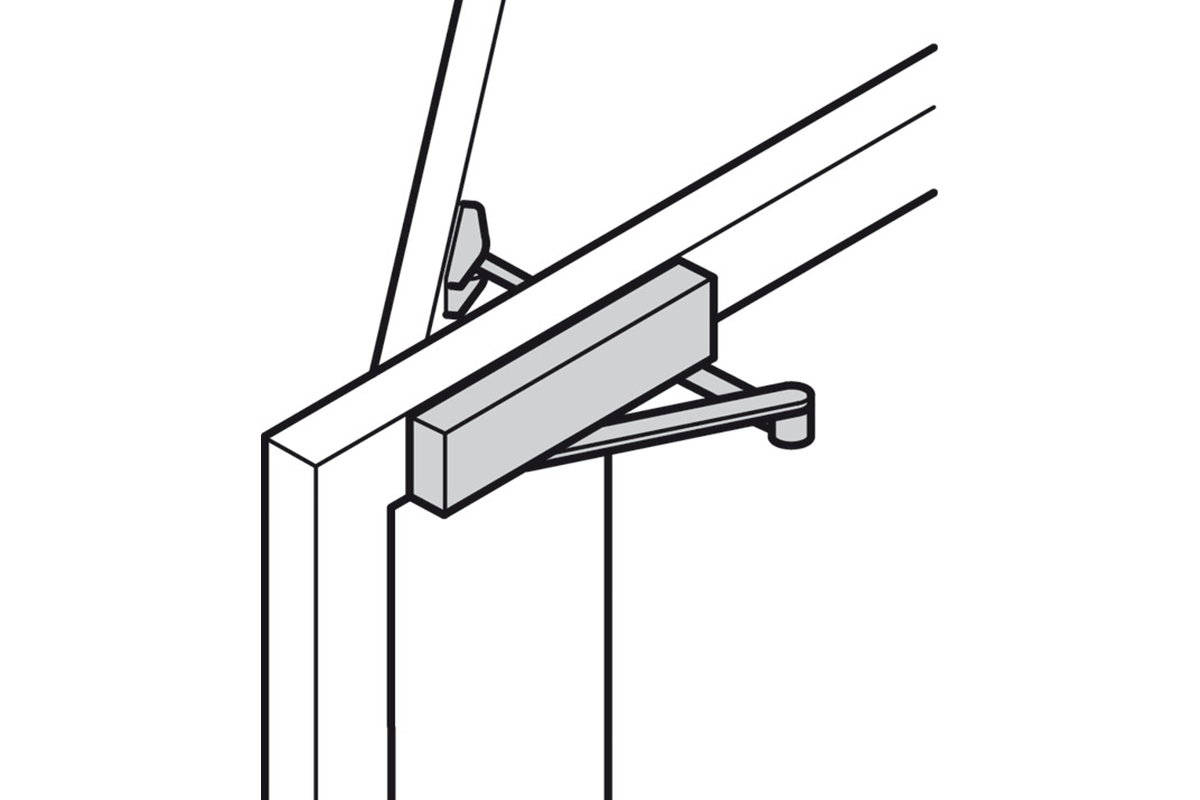

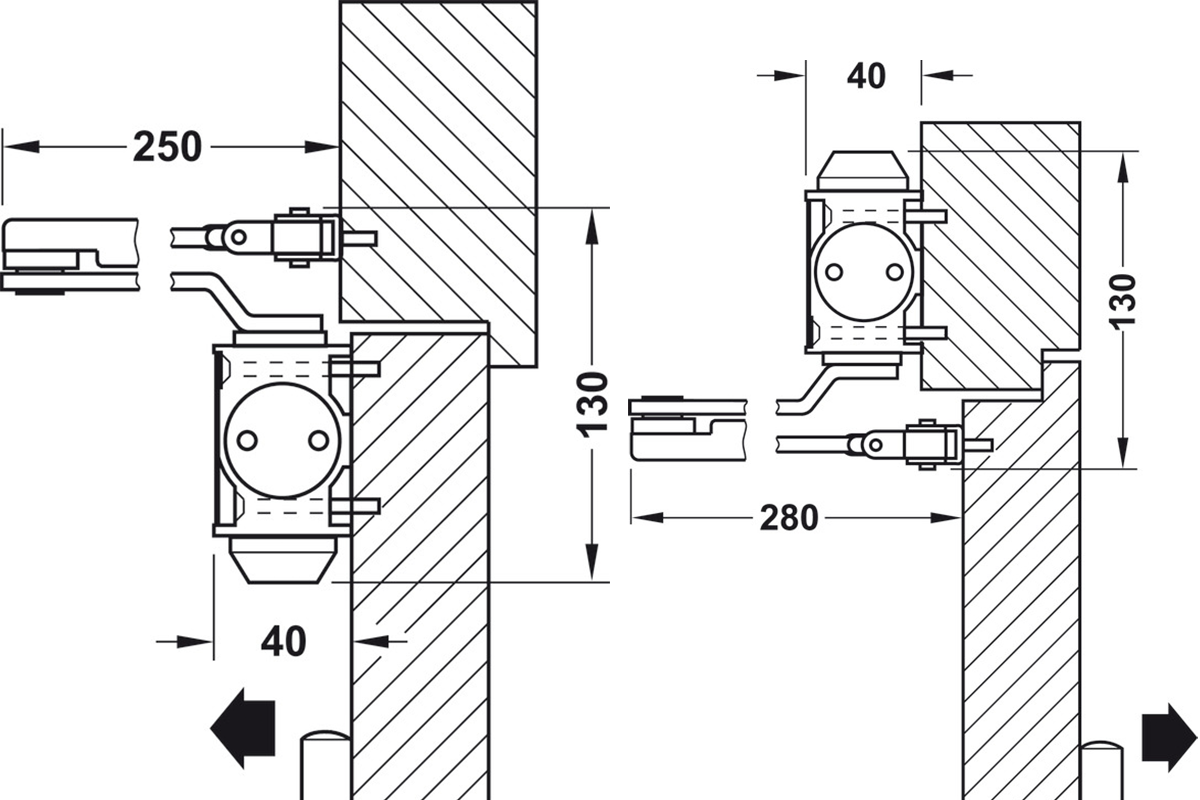

Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on push side
For door width
≤1,100 mm
Mounting
For DIN left and DIN right hand use
Colour/finish
lacquered
For number of doors
1-leaf doors
Adjustment facility
Closing speed and latching action adjustable
Closing force
2–4 in accordance with EN 1154
Hold-open angle
≤145 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
4|8|2 – 4|1|1|3
Supplied with
Door closer complete with arm assembly
Item code: 931.84.629
Door closer, DCL 15, Datasheet
