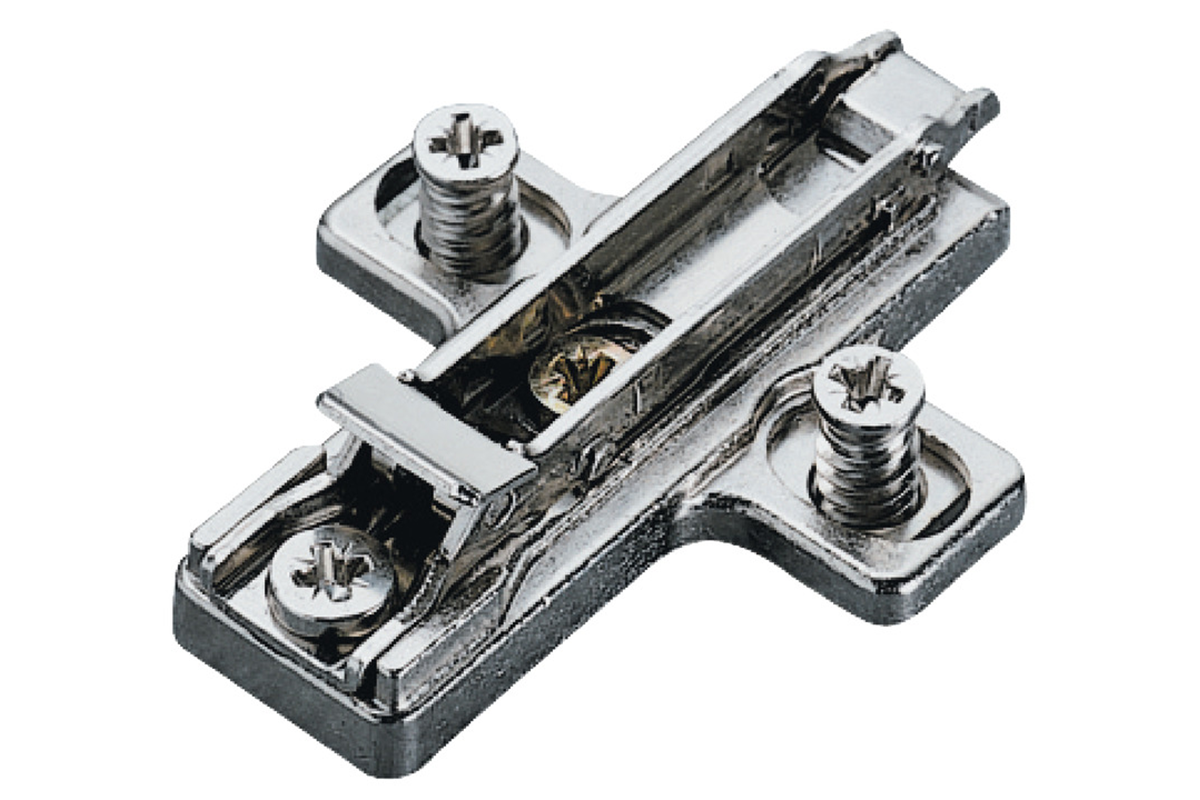

Cruciform mounting plate, For Tiomos, with pre-mounted Euro screws
Cruciform mounting plate, For Tiomos, with pre-mounted Euro screws
Supplier:
Häfele
Category:
Furniture & Living Solutions
Cruciform mounting plate, For Tiomos, with pre-mounted Euro screws
quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, Distance D: 3 mm
Article details
- Spring lever
Area of application
For Häfele Metalla 510 concealed hinges
Product Material
Zinc alloy
Colour/finish
nickel plated
For drill hole Ø
5,00 mm
For side panel thickness
19 mm
For centre panel thickness
Screw distance

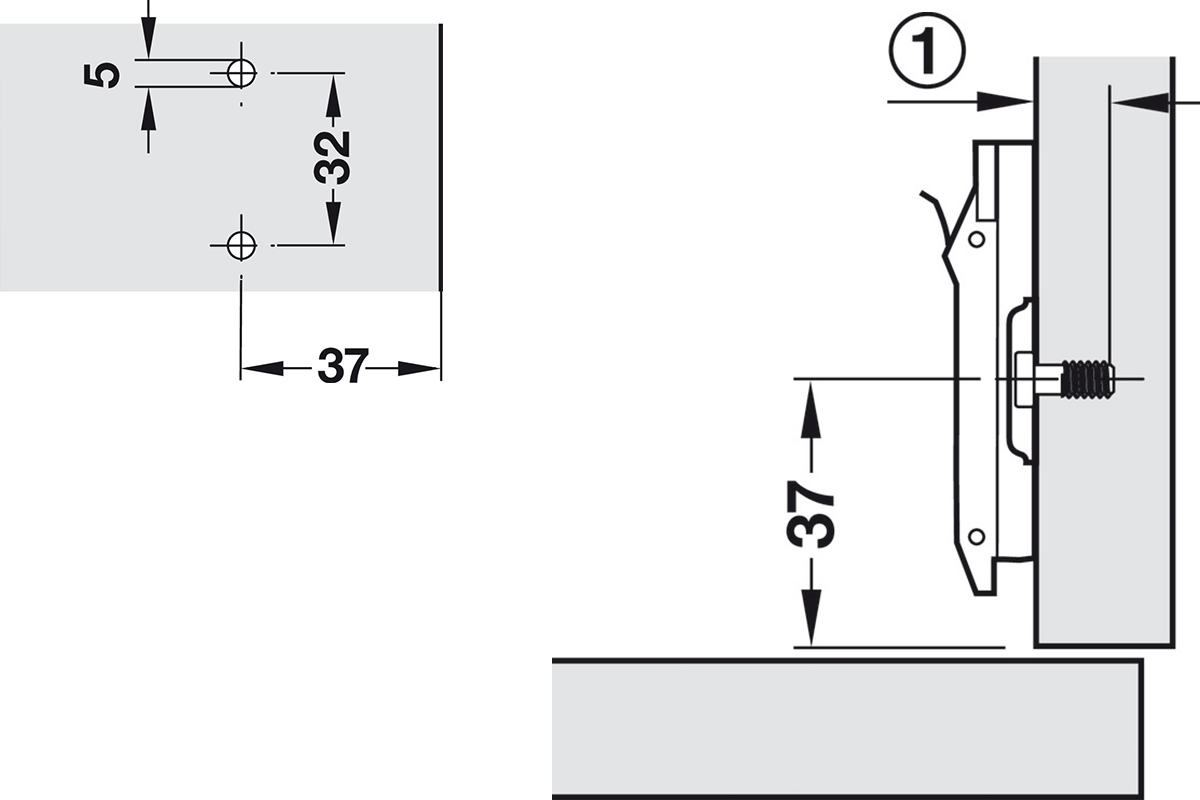

32,00 mm
Edge distance
37,00 mm
Adjustment facility
Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm
Fixing method
Quick fixing system SM
Mounting plate version
For screw fixing with pre-mounted Euro screws
Manufacturer
Häfele
Model series
Metalla 510 SM
Suitable for
Häfele Metalla 510 concealed hinges
Item code: 329.71.513
Cruciform mounting plate, For Tiomos,Datasheet
