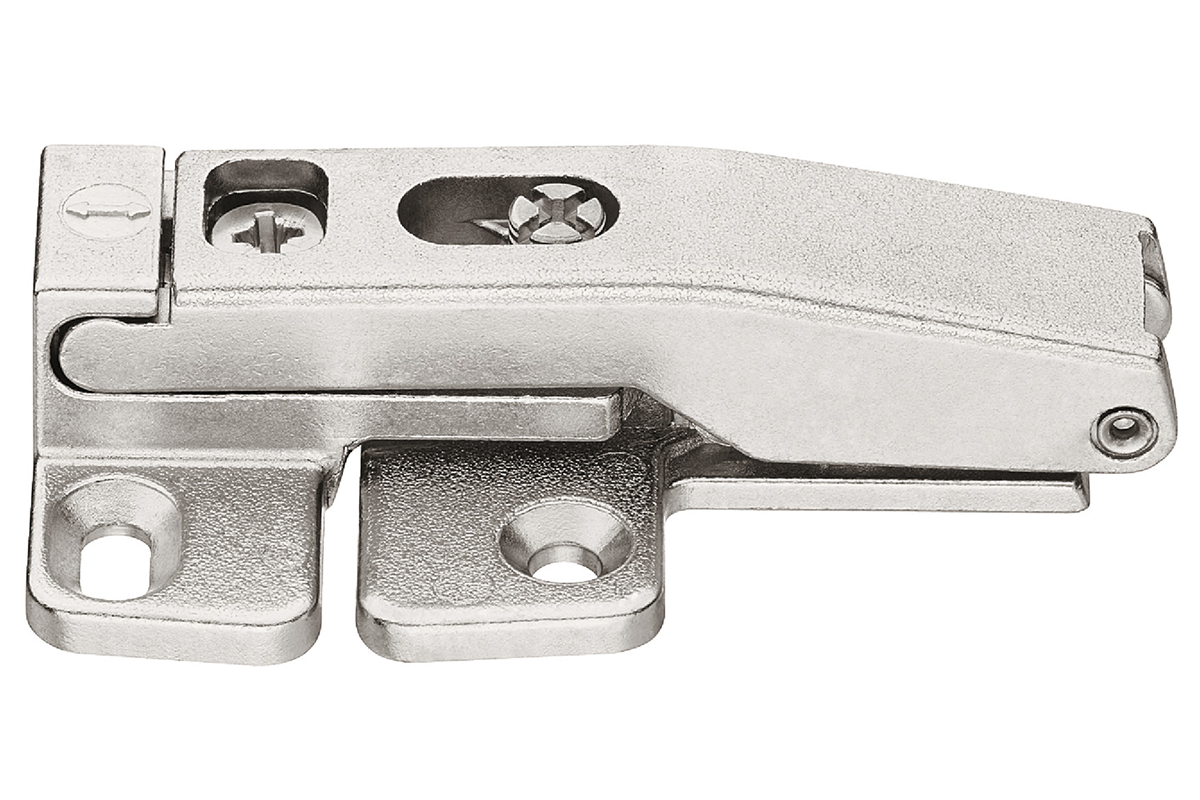

Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
Supplier:
Häfele
Category:
Furniture & Living Solutions
Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame

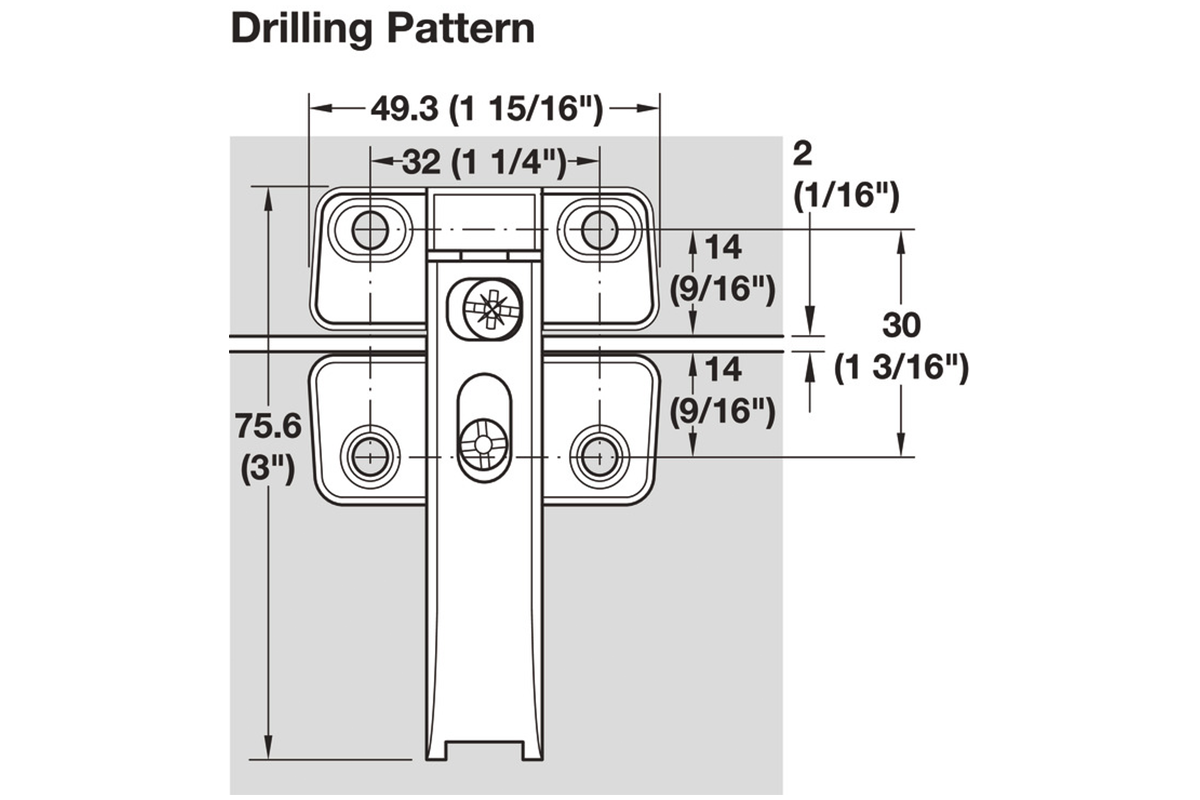

installation: With chipboard screws
Item details
With finger protection function
Installed with chipboard screws

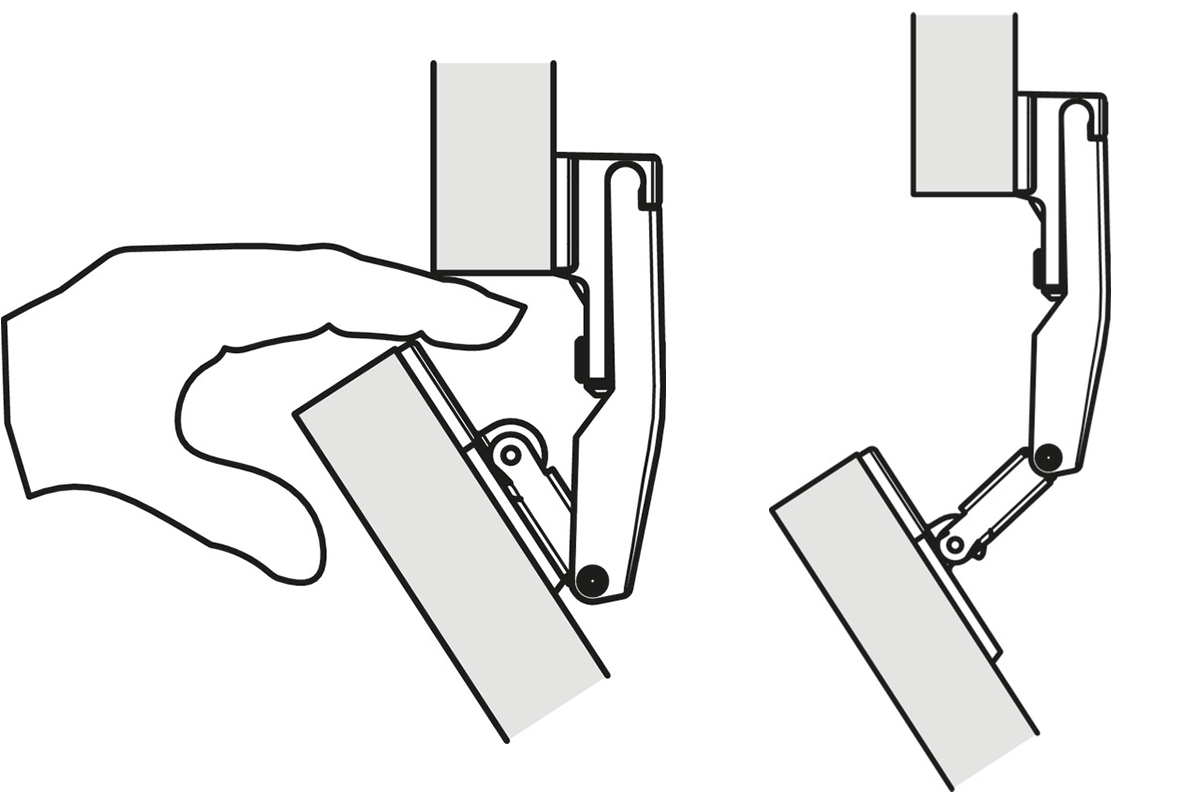

- If fingers are accidentally inserted into the flap gap, the hinge unhooks itself to prevent injuries.
- Two required per door, for doors over 900 mm (35 7/16”) three are required.
The hinge comes apart when fingers get unintentionally in the gap of the door.
Version
With finger trapping protection function
Color/finish
nickel plated
Area of application
For wood and aluminum frame doors from frame width 20 mm (13/16")
Material
Zinc alloy

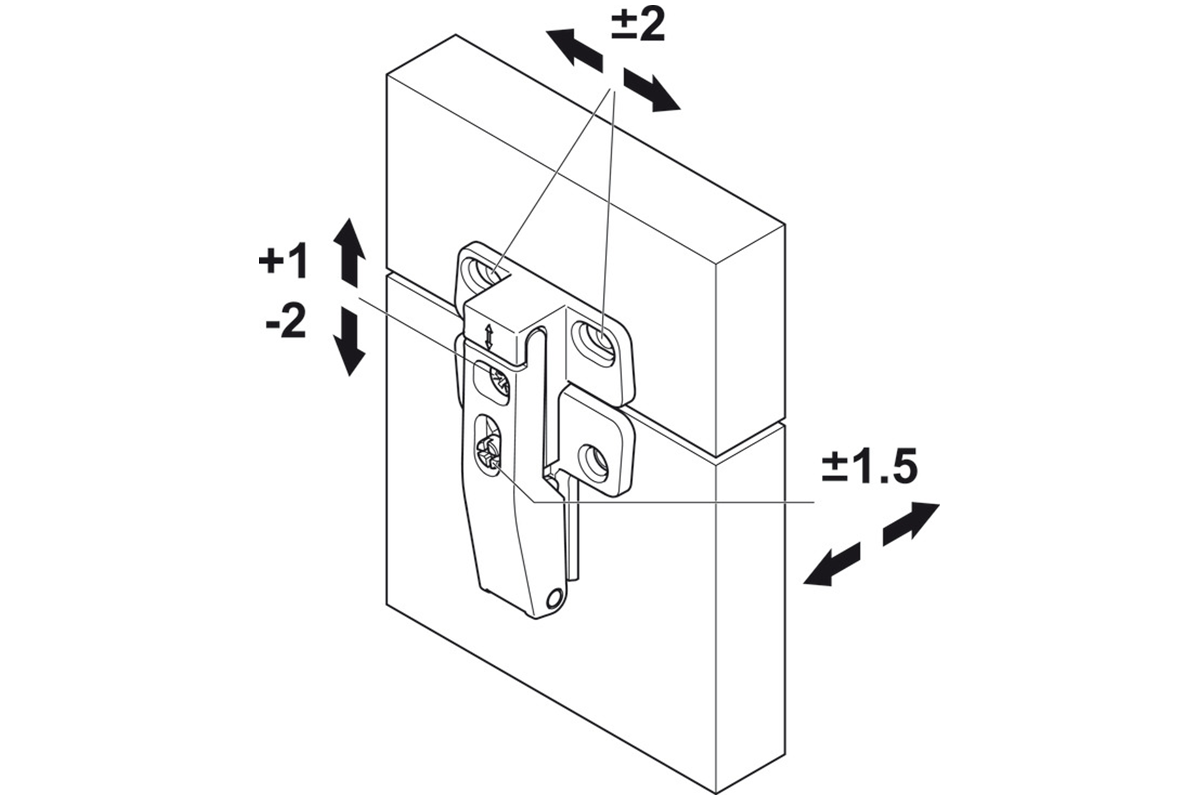

Adjustment facility
3-dimensional
Side adjustment ±2 mm
Gap adjustment –2 to +1 mm
Depth adjustment ±1.5 mm
Additional information
The hinge comes apart when fingers get trapped unintentionally in the gap of the door.
Item code: 372.64.796
Connecting Hinge, for Doors with 20 mm, Datasheet
