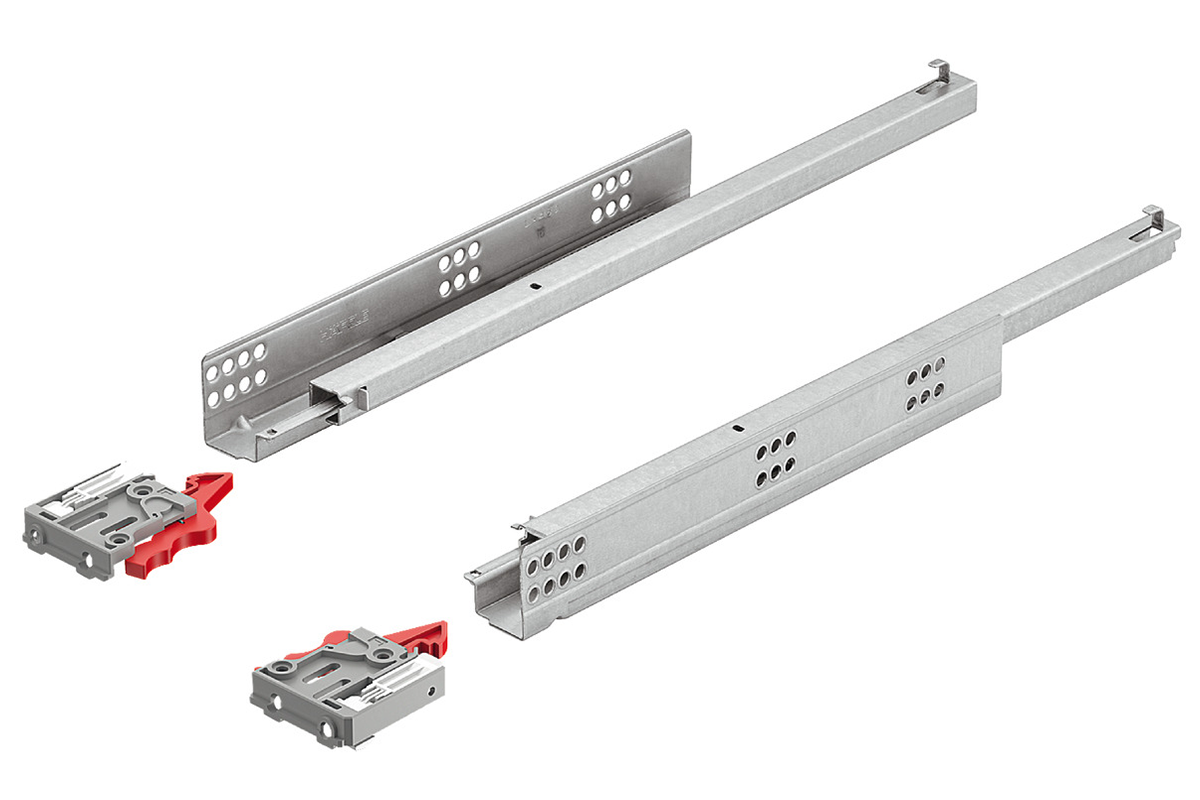

Concealed runner, Häfele Matrix Runner UM A25, single extension, load bearing capacity up to 25 kg
Concealed runner, Häfele Matrix Runner UM A25, single extension, load bearing capacity up to 25 kg
Supplier:
Häfele
Category:
Furniture & Living Solutions
Concealed runner, Häfele Matrix Runner UM A25, single extension, load bearing capacity up to 25 kg
Steel, coupling installation
Product details
Model
25
Model series
Matrix Runner UM
Type of pull out
Single extension
Comfort functions
Soft close fluid damped, Soft close, Self close
Load bearing capacity
25.00 kg
Adjustment facility
Height adjustment up to + 3 mm on snap-in coupling without tools
Material
Steel
Colour/finish
Zinc plated, Galvanized
Supplied with
1 pair of runners
1 coupling for single extension
Item code: 433.03.000 , 433.03.002 , 433.03.004 , 433.03.005 , 433.03.007 , 433.03.011 , 433.03.013 , 433.03.014 , 433.03.015 , 433.03.016 , 433.03.017
