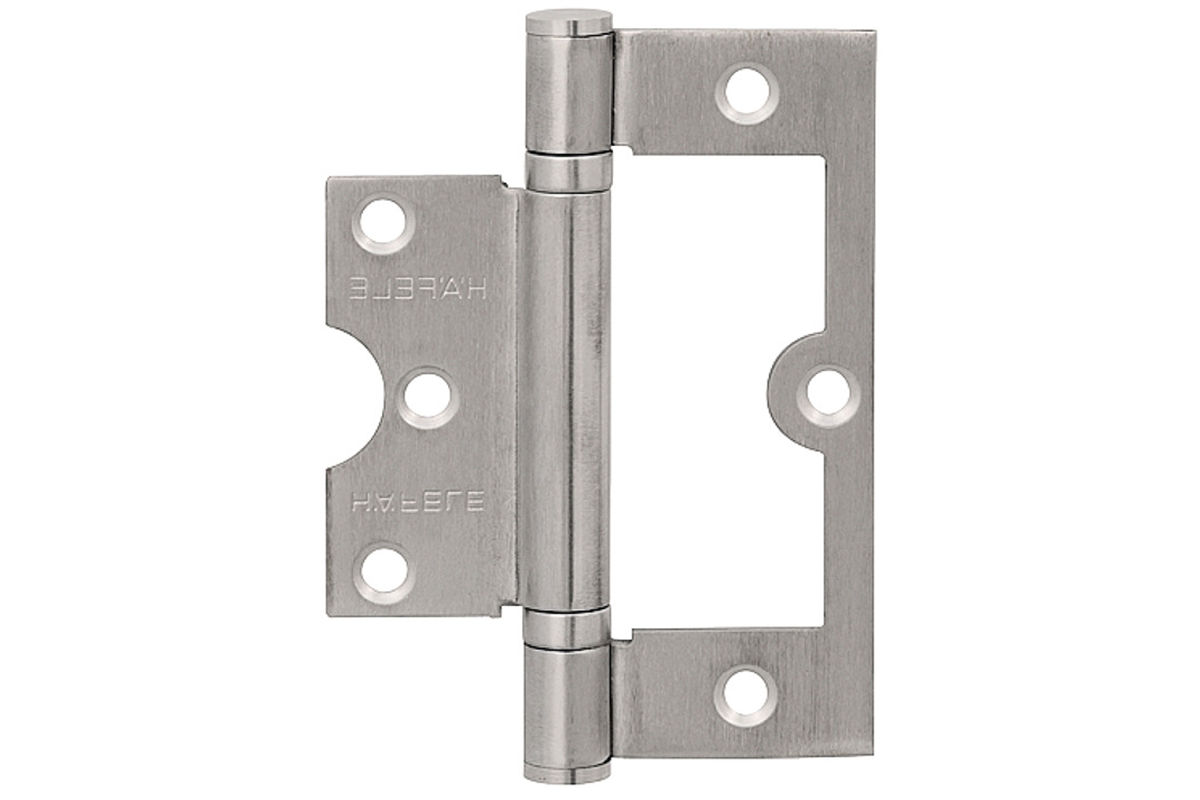

Butt hinge, for flush mounting, size 102 mm
Butt hinge, for flush mounting, size 102 mm
For interior doors, Startec, stainless steel matt
Article details
Mounting
For DIN left and DIN right hand use
Flange shape
square

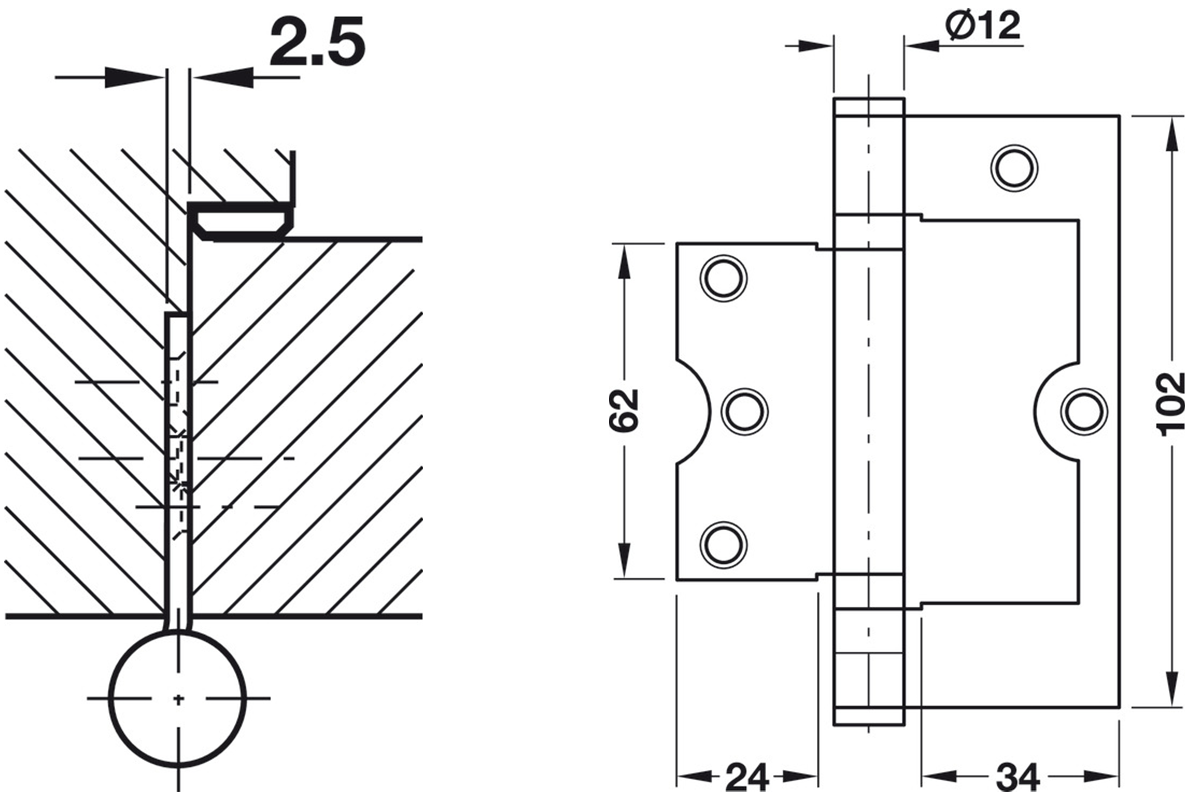

Flange width
24 mm / 34 mm
Colour/finish
matt
Knuckle diameter
12.0 mm
Flange thickness
2.5 mm
Flange height
62 mm / 102 mm
Model series
Butt hinge
Area of application
For wooden or metal frames
for flush wooden or metal interior doors
for flush mounting
For door type
Wooden door leaf, metal door
For frame type
Wooden frame, Metal frame
Max. door weight for 2 hinges
60.0 kg
Knuckle length
102.0 mm
Bearing type
Knuckle with two ball bearings
Supplied with
Fixing material supplied
Item code: 926.22.103
Butt hinge, for flush mounting, size 102 mm, Datasheet
