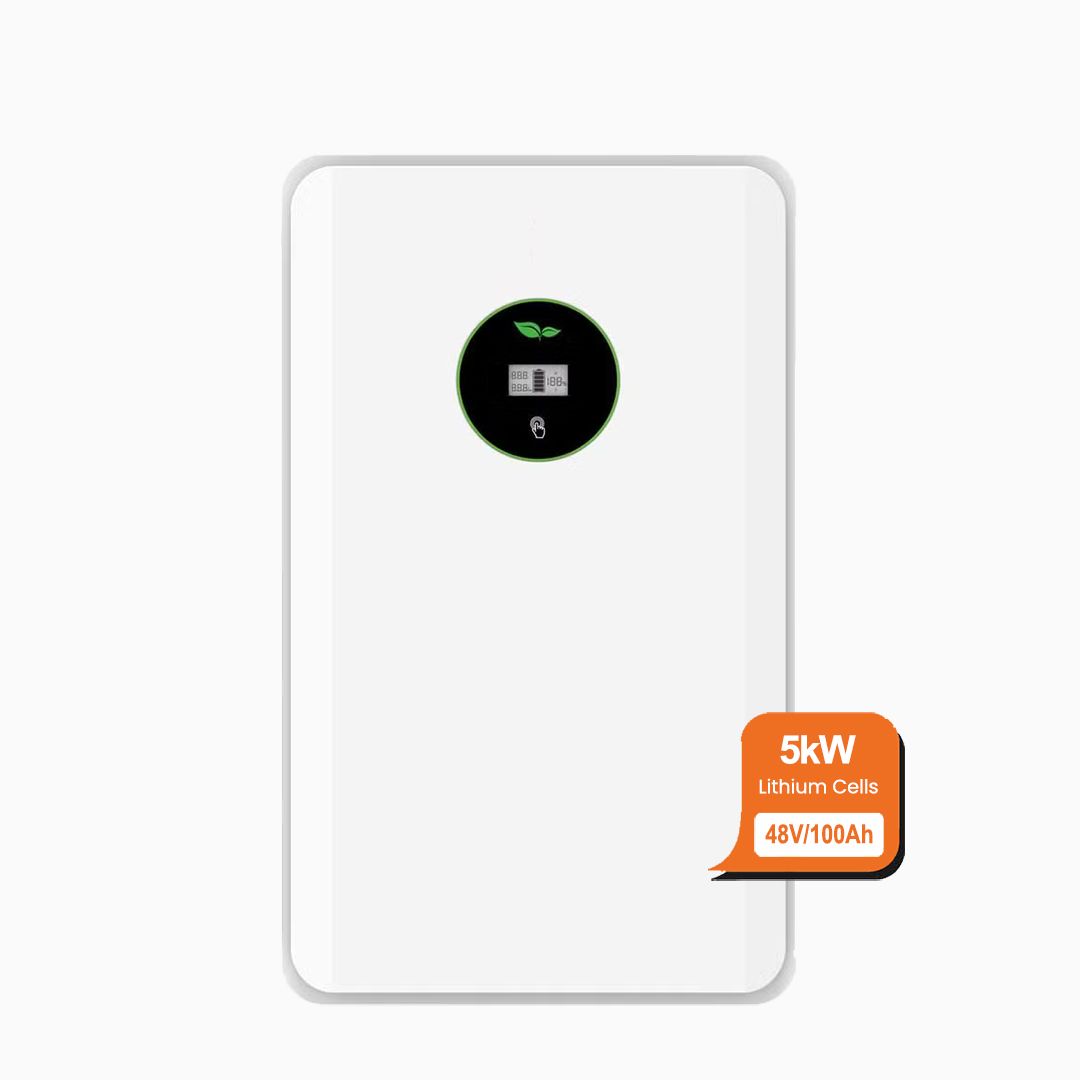

5kWh 48v 100Ah LiFePO4 Battery
Here is the professional English product description for your website, structured and formatted for e-commerce or technical product pages:
FLA Series LiFePO4 Battery Energy Storage System
The FLA Series offers advanced, highly reliable lithium iron phosphate (LiFePO4) battery energy storage solutions designed for residential and commercial solar systems. Engineered for safety, longevity, and efficiency, these batteries deliver dependable backup power and off-grid performance.
🌟 Key Features
- Exceptional Cycle Life: Over 6,000 deep discharge cycles for long-term operational durability.
- High Depth of Discharge (DOD): Greater than 95% DOD, allowing maximum usable energy capacity.
- Integrated Smart Protection: Equipped with a Smart BMS (Battery Management System), internal circuit breaker, and fuse to safeguard against overcharging, overheating, and short circuits.
- High Scalability: Supports parallel connection of up to 15 units, expanding system capacity up to 187.5 kWh.
- Real-time Monitoring: Integrated LCD + LED display provides immediate status updates and battery health metrics.
- Flexible Installation: Supports both Wall-Mounted and Floor-Mounted configurations.
- Long-term Warranty: Backed by a 7-Year Manufacturer Warranty.
📊 Technical Specifications Comparison
Specification
FLA48100
FLA48200
FLA48250
Usable Capacity
5.12 kWh
10 kWh
12.5 kWh
Battery Chemistry
LiFePO4
LiFePO4
LiFePO4
Nominal Voltage
51.2 V
51.2 V
51.2 V
Operating Voltage Range
44.8 V – 57.6 V
44.8 V – 57.6 V
44.8 V – 57.6 V
Recommended Charge/Discharge Current
< 100A
< 120A
< 150A
Recommended Charge/Discharge Power
< 5000 W
< 6000 W
< 7500 W
Max Charge/Discharge Current (15s)
150A
150A
200A
Max Charge/Discharge Power (15s)
7500 W
7500 W
10000 W
Parallel Scalability
Up to 15 units (76.8 kWh)
Up to 15 units (150 kWh)
Up to 15 units (187.5 kWh)
Net Weight (KG)
55 kg
68 kg
97 kg
Gross Weight (KG)
75 kg
88 kg
118 kg
Product Dimensions (WDH MM)
775 * 425 * 209
735 * 433 * 188
783 * 450 * 274
Package Dimensions (WDH MM)
892 * 545 * 384
815 * 552 * 362
900 * 570 * 450
🌡️ General Specifications
- Communication Ports: CAN & RS485
- Ingress Protection Rating: IP21
- Charging Temperature Range: 0°C to 55°C
- Discharging Temperature Range: -20°C to 55°C
