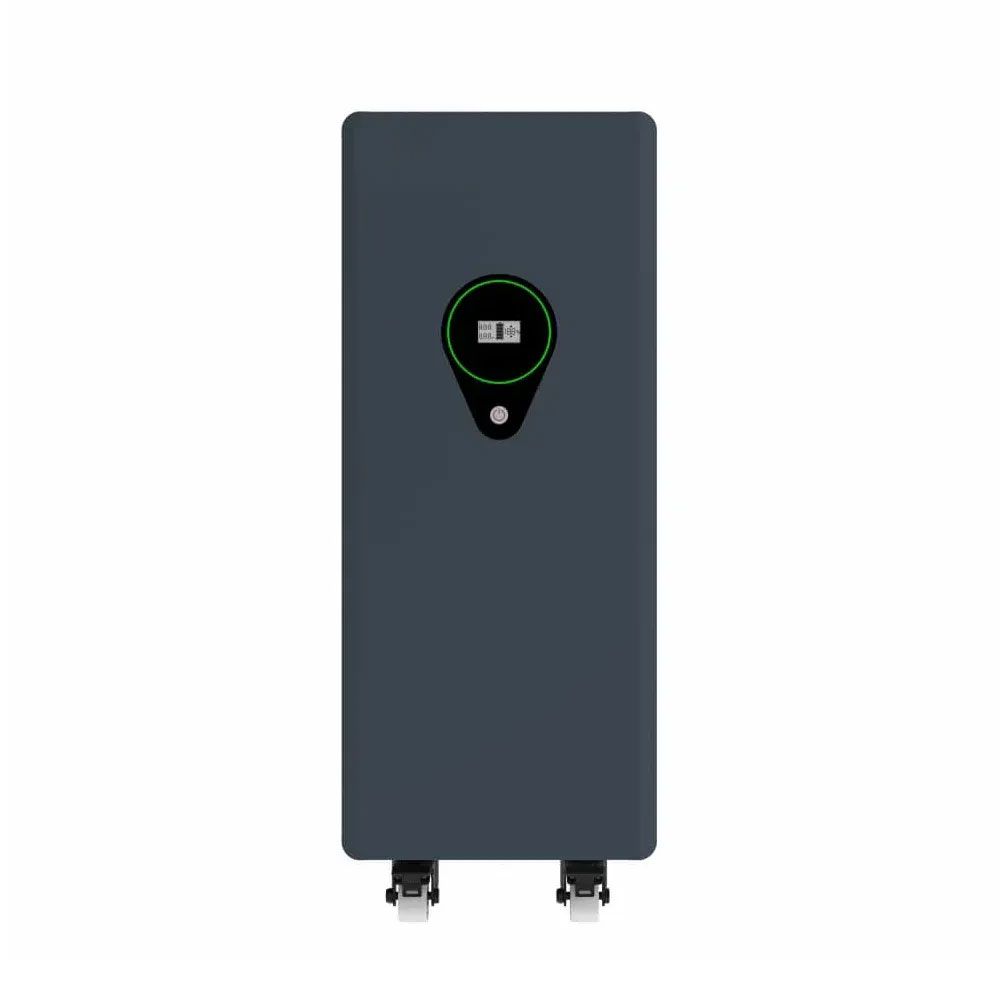

25kWh 48V 500ah LiFePO4 Battery
FLA48500 LiFePO4 Lithium Battery (25kWh Capacity)
The FLA48500 is a commercial-grade, high-capacity energy storage solution delivering a massive 25 kWh of power for large residential setups, commercial buildings, and high-demand solar backup installations. Powered by premium Lithium Iron Phosphate (LiFePO4) technology, it is engineered for heavy power requirements, ultimate stability, and maximum safety.
🌟 Key Features
- Massive Storage Capacity: Provides 25 kWh of total capacity to handle heavy power loads and extended outage requirements.
- High Surge & Continuous Output: Supports a recommended charge/discharge power of ≤10,000W and a peak power output of 15,000W (15s).
- Long Service Life: Rated for ≥6,000 charge/discharge cycles for long-term operational performance.
- High Depth of Discharge (DOD): Features a ≥95% DOD, allowing maximum utilization of stored battery energy.
- Integrated Safety & Protection: Equipped with a Built-in Smart BMS, internal circuit breaker, and fuse to protect against overcurrent, short circuits, and overheating.
- Commercial Scalability: Connect up to 15 units in parallel to reach an total energy capacity of 375 kWh.
- Real-time Performance Display: Integrated LCD + LED screen for seamless status updates and monitoring.
- Floor-Mounted Design: Engineered as a sturdy, floor-standing unit to support high-density battery storage.
📊 Technical Specifications
Parameter
Specification (FLA48500)
Capacity
25 kWh
Battery Type
LiFePO4
Nominal Voltage
51.2 V
Operating Voltage Range
44.8 V – 57.6 V
Recommended Charge/Discharge Current
≤ 200A
Recommended Charge/Discharge Power
≤ 10,000 W
Max Charge/Discharge Current (15s)
300A
Max Charge/Discharge Power (15s)
15,000 W
Parallel Scalability
Up to 15 units (375 kWh)
Installation
Floor-Mounted
Net Weight
218 kg
Gross Weight
248 kg
Product Dimensions (WDH)
718 * 380 * 990 mm
Package Dimensions (WDH)
825 * 498 * 1162 mm
🌡️ Additional Specifications
- Communication Interface: RS485 / CAN
- Protection Level: IP21
- Charging Temperature Range: 0°C to 55°C
- Discharging Temperature Range: -20°C to 55°C
