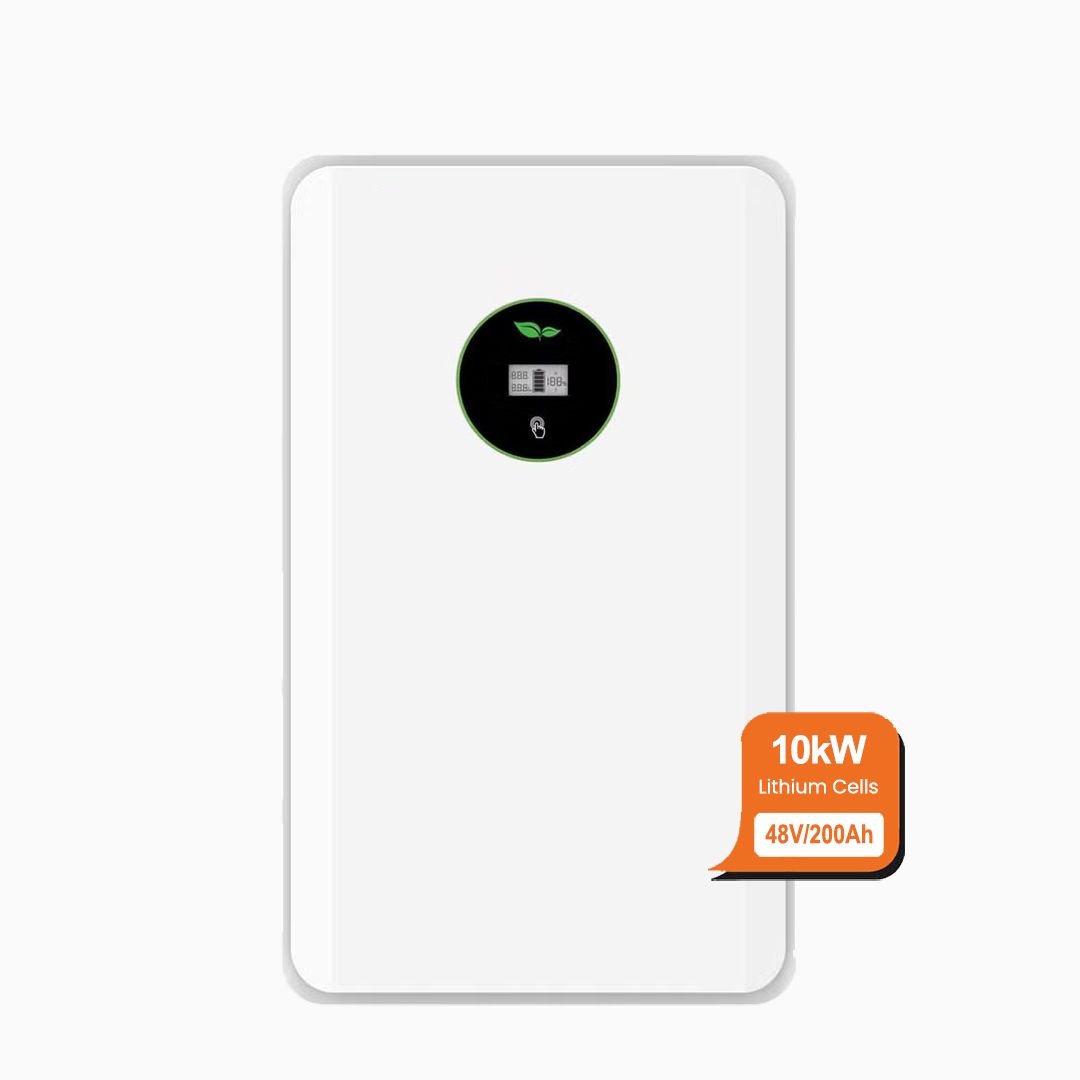

10kWh 48v 200Ah LiFePO4 Battery
FLA48200 LiFePO4 Lithium Battery (10kWh Capacity)
The FLA48200 is a high-performance, long-lasting LiFePO4 energy storage solution designed for residential, commercial, and solar backup power systems. Engineered with premium Lithium Iron Phosphate chemistry, it delivers exceptional reliability, high energy density, and complete operational safety.
🌟 Key Features
- High Storage Capacity: Packs 10 kWh of total usable energy for continuous power supply.
- Long Service Life: Delivers over 6,000 charge/discharge cycles for extended longevity.
- High Depth of Discharge (DOD): Greater than 95% DOD, allowing maximum utilization of stored power.
- Smart Integrated Protection: Features a Smart BMS, internal circuit breaker, and fuse to protect against overcharging, short circuits, and high temperatures.
- Scalable Power: Connect up to 15 units in parallel to scale total storage capacity up to 150 kWh.
- Real-time Status Display: Built-in LCD + LED screen for instant monitoring of operational status and battery level.
- Flexible Mounting Options: Supports both Wall-Mounted and Floor-Mounted installations.
- Reliable Warranty: Comes with a 7-Year Manufacturer Warranty.
📊 Technical Specifications
Parameter
Specification (FLA48200)
Usable Capacity
10 kWh
Battery Chemistry
LiFePO4
Nominal Voltage
51.2 V
Operating Voltage Range
44.8 V – 57.6 V
Recommended Charge/Discharge Current
< 120A
Recommended Charge/Discharge Power
< 6000 W
Max Charge/Discharge Current (15s)
150A
Max Charge/Discharge Power (15s)
7500 W
Parallel Scalability
Up to 15 units (150 kWh)
Net Weight
68 kg
Gross Weight
88 kg
Product Dimensions (WDH)
735 * 433 * 188 mm
Package Dimensions (WDH)
815 * 552 * 362 mm
🌡️ Additional Specifications
- Communication Interface: CAN & RS485
- Ingress Protection: IP21
- Charging Temperature: 0°C to 55°C
- Discharging Temperature: -20°C to 55°C
