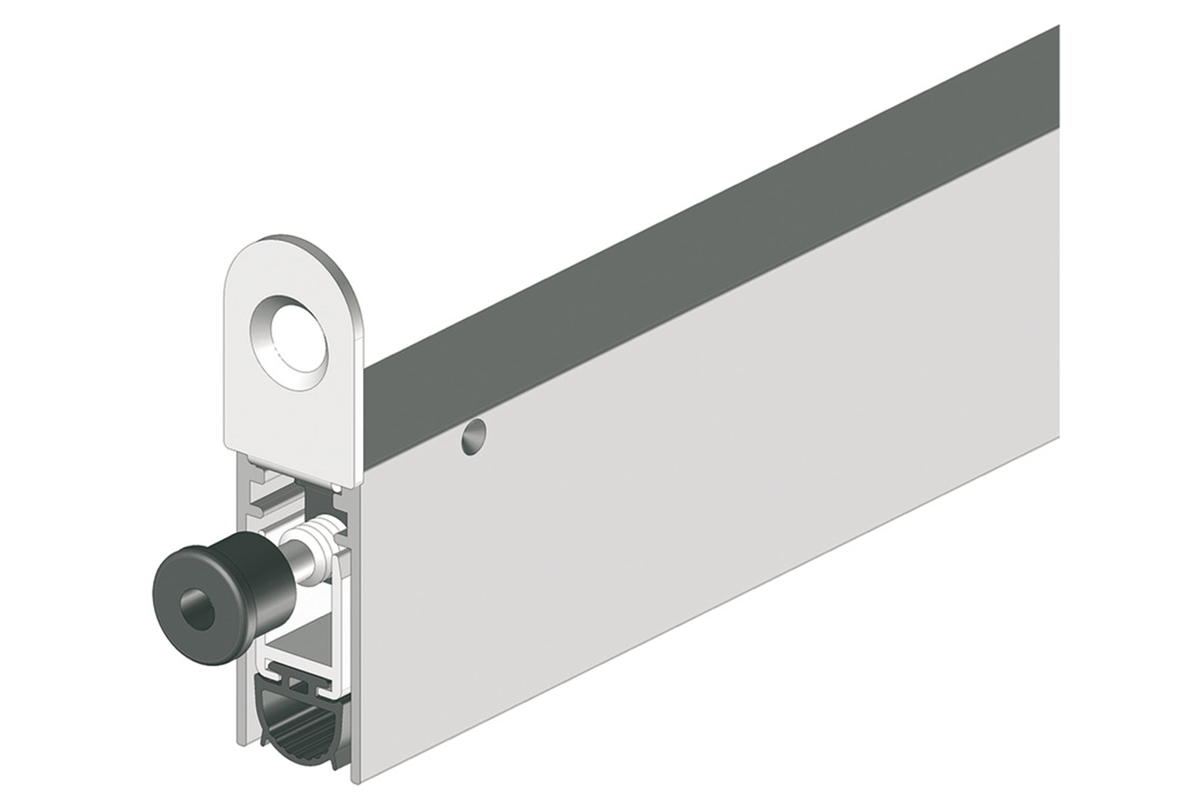

Retractable door seal, with smoke control and fire resistance

Retractable door seal, with smoke control and fire resistance

Product details

Area of application

For soundproof doors in compliance with
EN ISO 10140-1 / 10140-2 / 717-1
for smoke control doors in compliance
with EN 1634-3
for fire resistant doors in compliance
with EN 1634-1 / BS 476

Material

Carrier: Aluminium
Sealing profile: Silicone

Release

single-side

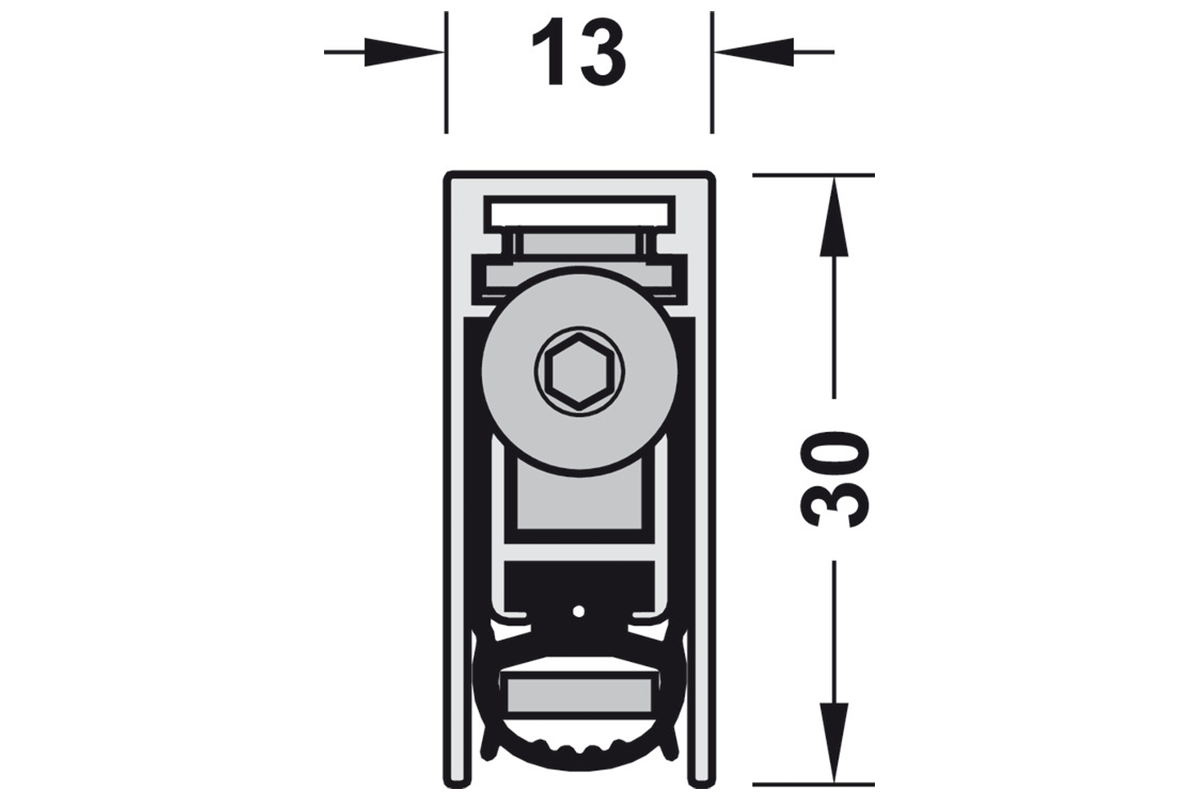

Installation dim.

Groove: 13 x 30 mm

Mounting

For DIN left and DIN right hand use

Fire resistance duration

60.0 min

Colour/finish

Sealing profile: Grey, Carrier: Bright

Product type

Retractable door seal

Mounting

For DIN left and DIN right hand use

Colour sealing profile

Grey

Material sealing profile

Silicone

Material carrier

Aluminium

Version

Single-side release, 1,330 mm and
1,430 mm with double-side release

Finish

Carrier: Bright

Protective suitability

for smoke control doors in compliance with EN 1634-3, for sound absorbing doors in compliance with EN ISO 10140-1 / 10140-2 / 717-1, For fire resistant doors in compliance with EN 1634-1 / BS 476

Sound proofing value

50 dB

Colour

Sealing profile: Grey

Sealing height max.

20.0 mm

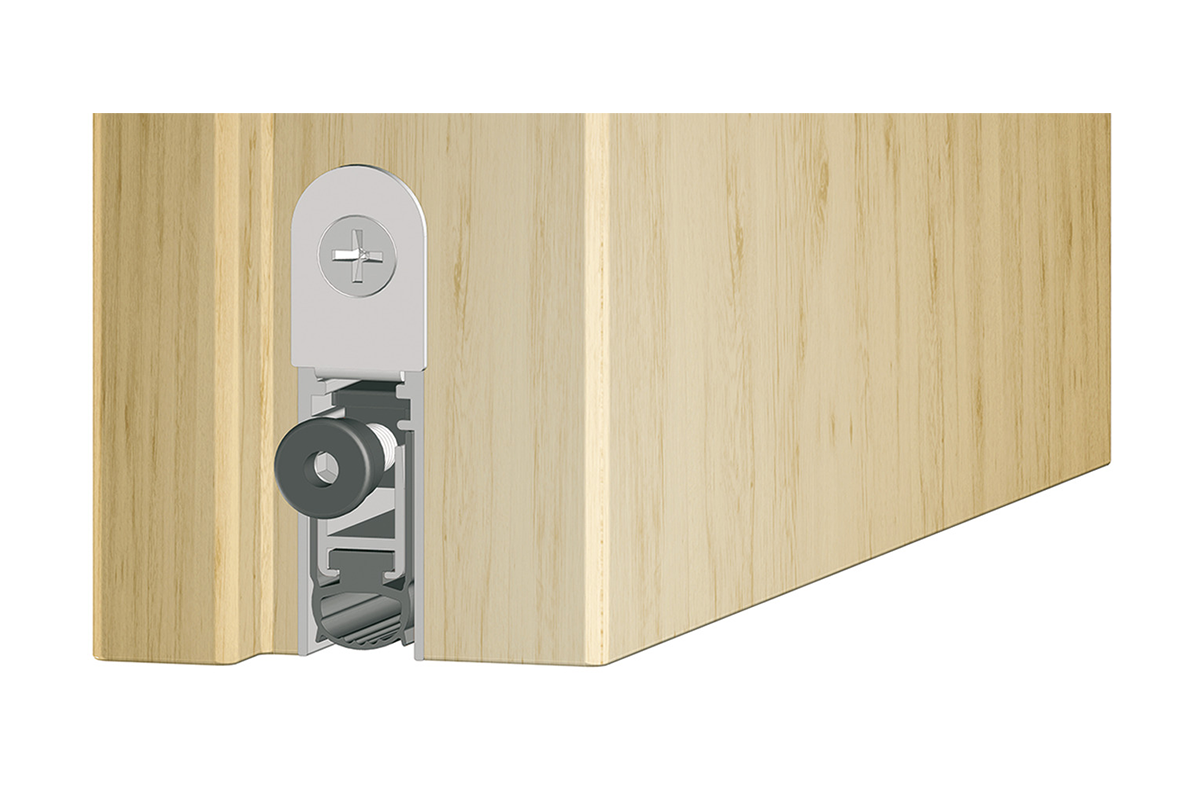

Installation

For full mortice fitting with fixing brackets (also fixed lengths)
lengths from 708 mm can be shortened (also fixed lengths)

Length trimming

≤150 mm

Supplied with

1 retractable door seal
2 mounting brackets with screws
1 release plates with screws

Item code: 950.40.015 , 950.40.017
