Pull-out table and folding fitting, with folding table leg

Pull-out table and folding fitting, with folding table leg

Product details

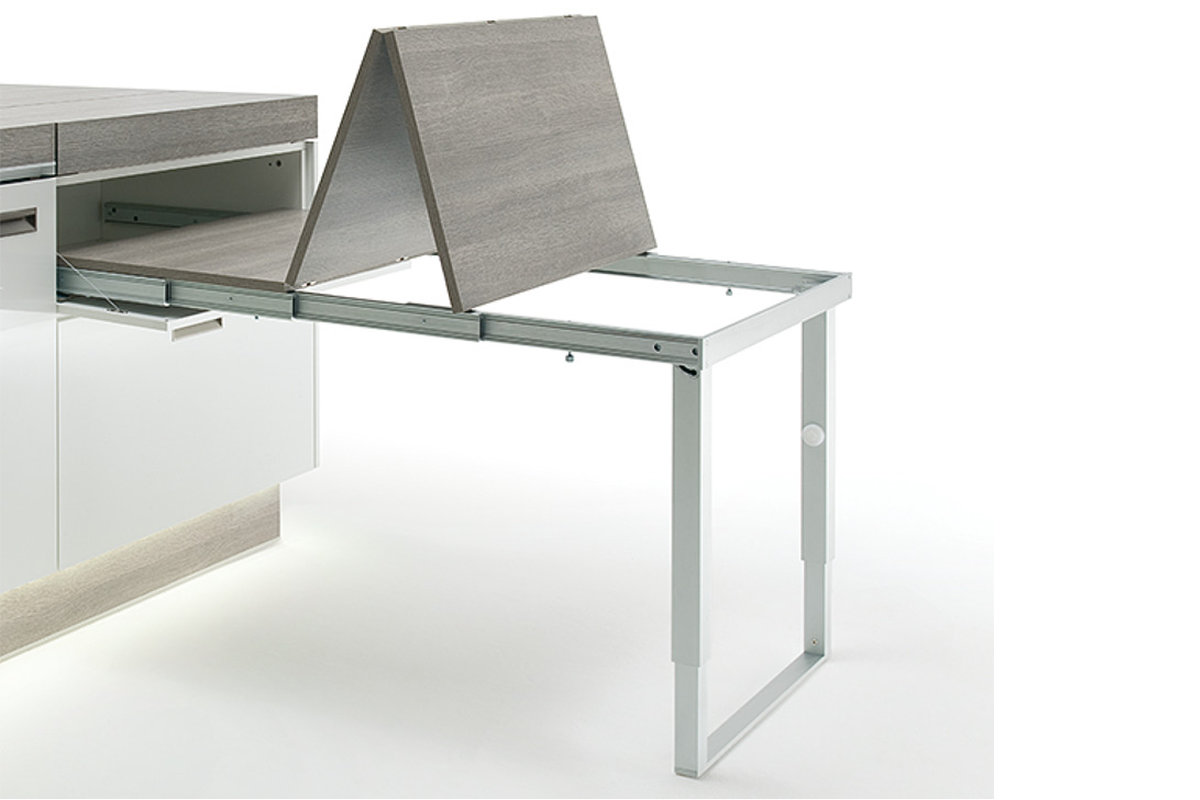

A pull-out table system that can be installed in a drawer space
Seats up to 5 people

Product type

Pull-out table and folding fitting

Load bearing capacity

60.00 kg

Color/finish

Steel: white aluminum, Guide profiles: Anodized, Aluminum: Silver colored anodized

Internal installation depth

≥ 22 1/8"

Load bearing capacity

Approx. 132 lbs

Area of application

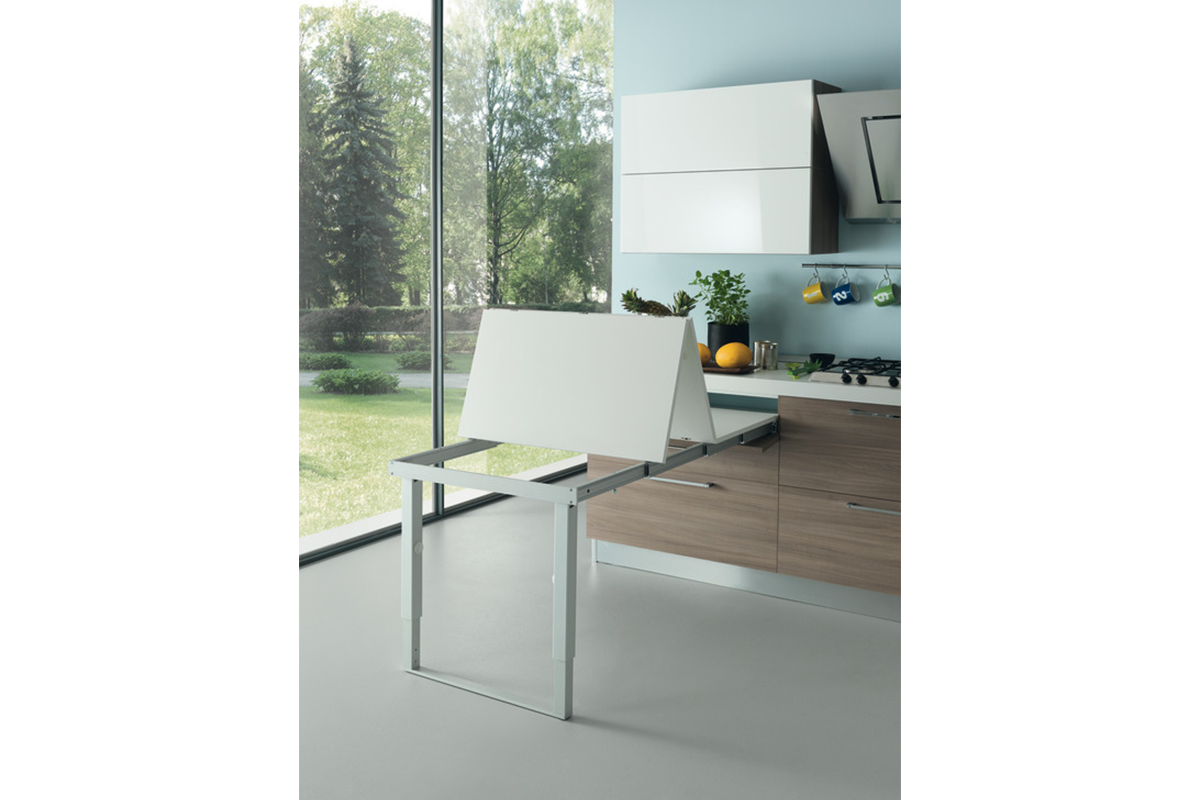

For kitchen and living room furniture

Version

With a fold-down support leg

Material

Guide profiles: Aluminum
Table leg: Steel

Load bearing capacity information

approx. specification

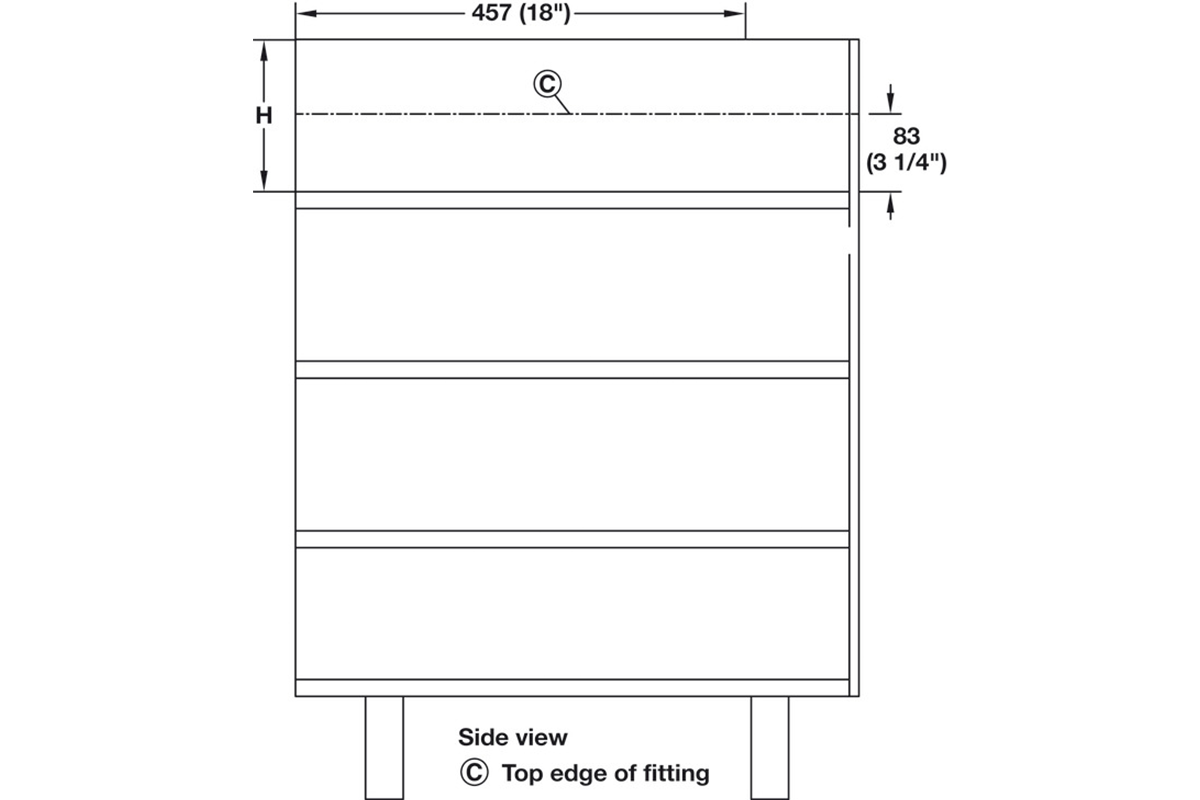

Internal installation height

83 mm (3 1/4") + 3 x top thickness

Internal installation depth

≥562 mm

Installation reference

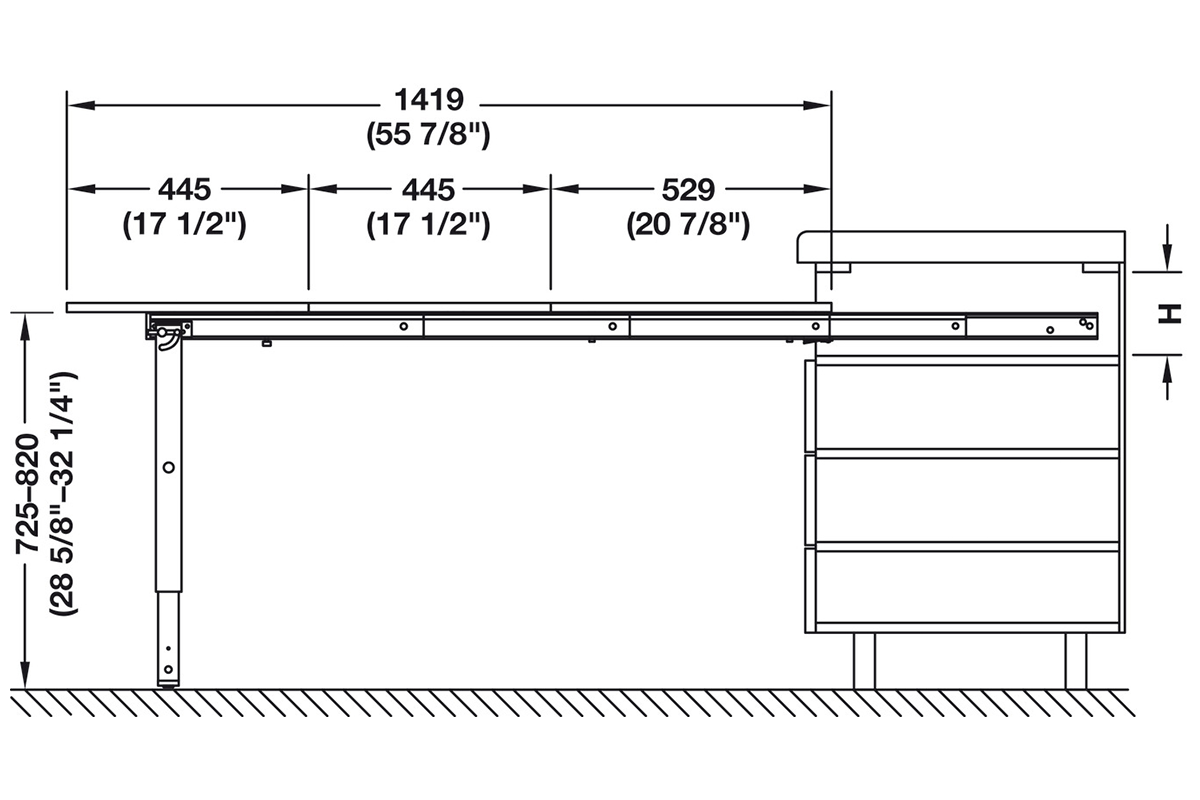

The 3 top leaves dimensions 529 mm (20 7/8"), 445 mm (17 1/2"), 445 mm (17 1/2") cannot be changed

Order reference

Table tops are not supplied - high quality material should be used for folding tops to insure they can withstand the folding procedure.
Hinges for fold down drawer front not supplied.
Folding table hinges not supplied – 6 are required

Supplied with

1 pair of running tracks
Fixing material
Mounting instructions

Additional information

Successful installation of this fitting requires a high degree of skill. Precise location of mounting holes and milling the hinges for folding tops is critical, CNC equipment is recommended.

Item code: 642.19.928
