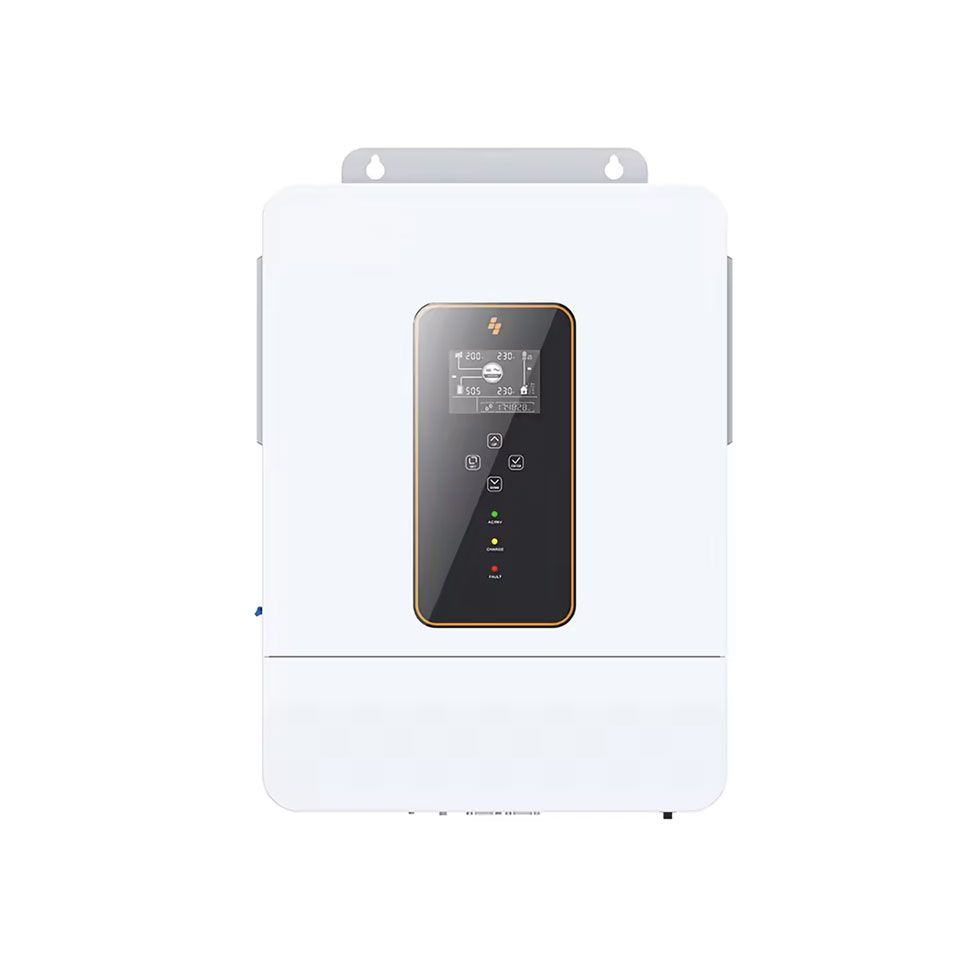

PANTHER | 5kW | Grid-Tied Inverter | 48V | 2-MPPT

Supplier: Felicity Solar

Category: Solar Inverter

Description

PAN Series Hybrid Solar Inverters (4kW – 6.5kW)

The PAN Series of split-phase hybrid solar inverters delivers reliable, high-efficiency power conversion for residential and light commercial solar energy systems. Designed to support multiple battery chemistry types, dual MPPT trackers, and flexible split-phase AC output, these inverters offer uninterrupted backup power with rapid 10ms transfer times.

🌟 Key Features

Flexible AC Output Options: Supports 120Vac single-phase and 240Vac split-phase output configurations.
Pure Sine Wave & Fast Switching: Delivers clean Pure Sine Wave output with a 10ms (typical) switch time for seamless backup protection.
Dual MPPT Trackers: Equipped with 2 independent MPPT channels operating at up to 99.9% tracking efficiency.
Universal Battery Compatibility: Compatible with Lithium-ion, Lead-acid, and custom user-defined battery profiles operating at 48V nominal voltage.
High Parallel Expansion: Supports parallel connection of 1 to 6 units, with 3+ units capable of forming a three-phase system output.
Smart Monitoring & Communication: Built-in RS485, CAN, USB, and Dry Contact communication ports, with optional Wi-Fi / GPRS remote tracking modules.
Comprehensive Protection Suite: Complete protection against PV over-voltage/reverse current, AC input over/under-voltage, battery over-current/voltage, short circuits, and system over-temperature.

📊 Technical Specifications Comparison

Parameter

PAN4840U100-H

PAN4850U120-H

PAN4860U140-H

PAN4865U140-H

Rated Output Power

4,000 W

5,000 W

6,000 W

6,500 W

Max. Output Power (Apparent)

8,000 VA

10,000 VA

12,000 VA

13,000 VA

Max. PV Array Power

3,000W + 3,000W

3,800W + 3,800W

4,500W + 4,500W

5,000W + 5,000W

Max. Hybrid Charging Current

100 A

120 A

140 A

Max. Grid/Gen Charging Current

60 A

80 A

Rated Output Voltage

\multicolumn{4}{c

}{120Vac (Single-Phase) / 240Vac (Split-Phase)}

Rated Frequency / Waveform

\multicolumn{4}{c

}{50/60 Hz | Pure Sine Wave}

Max. Efficiency / MPPT Efficiency

\multicolumn{4}{c

}{93% | 99.9%}

Max. Open Circuit Voltage (Voc)

\multicolumn{4}{c

}{550Vdc + 550Vdc}

MPPT Voltage Range

\multicolumn{4}{c

}{150Vdc – 450Vdc}

Max. Input Current per MPPT

\multicolumn{4}{c

}{18A + 18A}

🌡️ General Specifications

Rated Battery Voltage: 48V (Operating Voltage Range: 40 ~ 60Vdc)
Parallel Scalability: 1~6 Units (More than 3 units in parallel can form three-phase output)
Dimensions (WHD): 584.6 mm * 410 mm * 133 mm
Weight: 18.9 kg
Enclosure Rating: IP20 (Indoor Only)
Cooling Method & Noise: Intelligent fan cooling, <60dB
Warranty: 2 Years
Certifications: RoHS, EN61000-6-1, EN61000-6-3, FCC Part15 ClassB, IEC62109-1, IEC62109-2, UL1741
