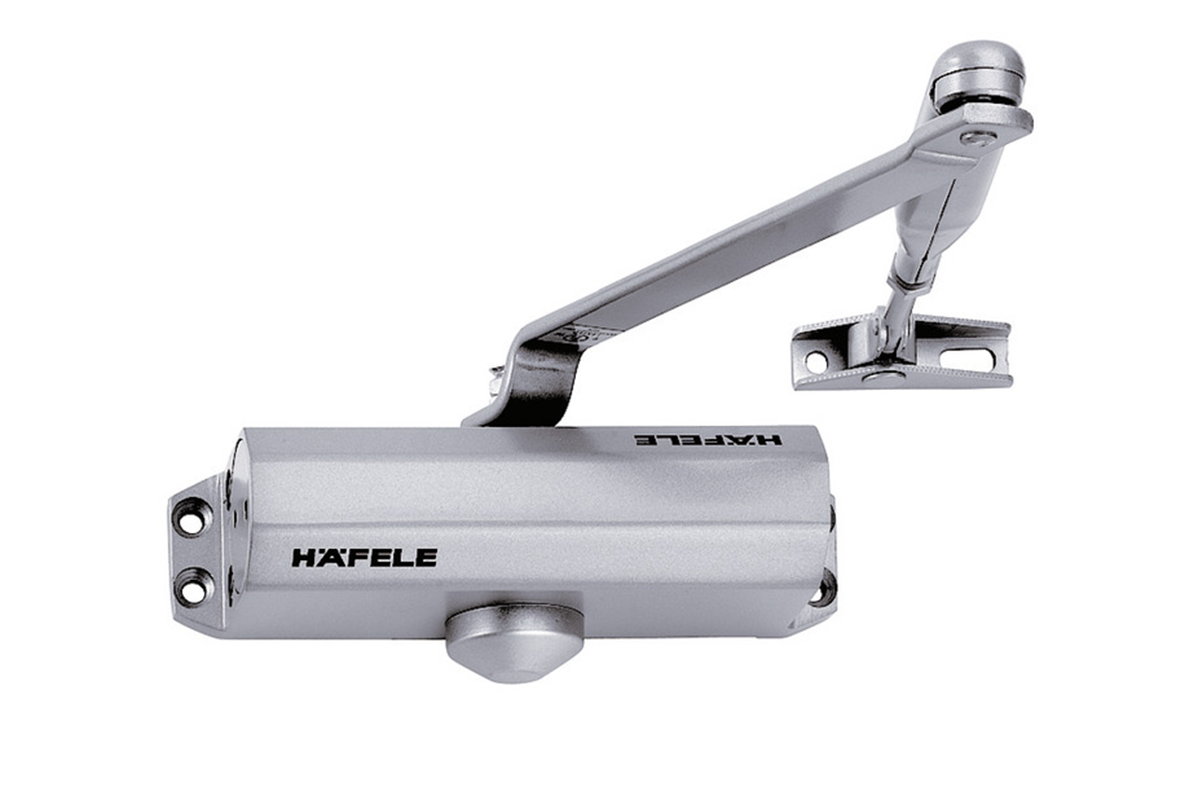

Door closer, DCL11
Door closer, DCL11
with standard arm, silver coloured
Article details
Version
Optical indication of closing force
All functions can be adjusted from the front
With standard arm

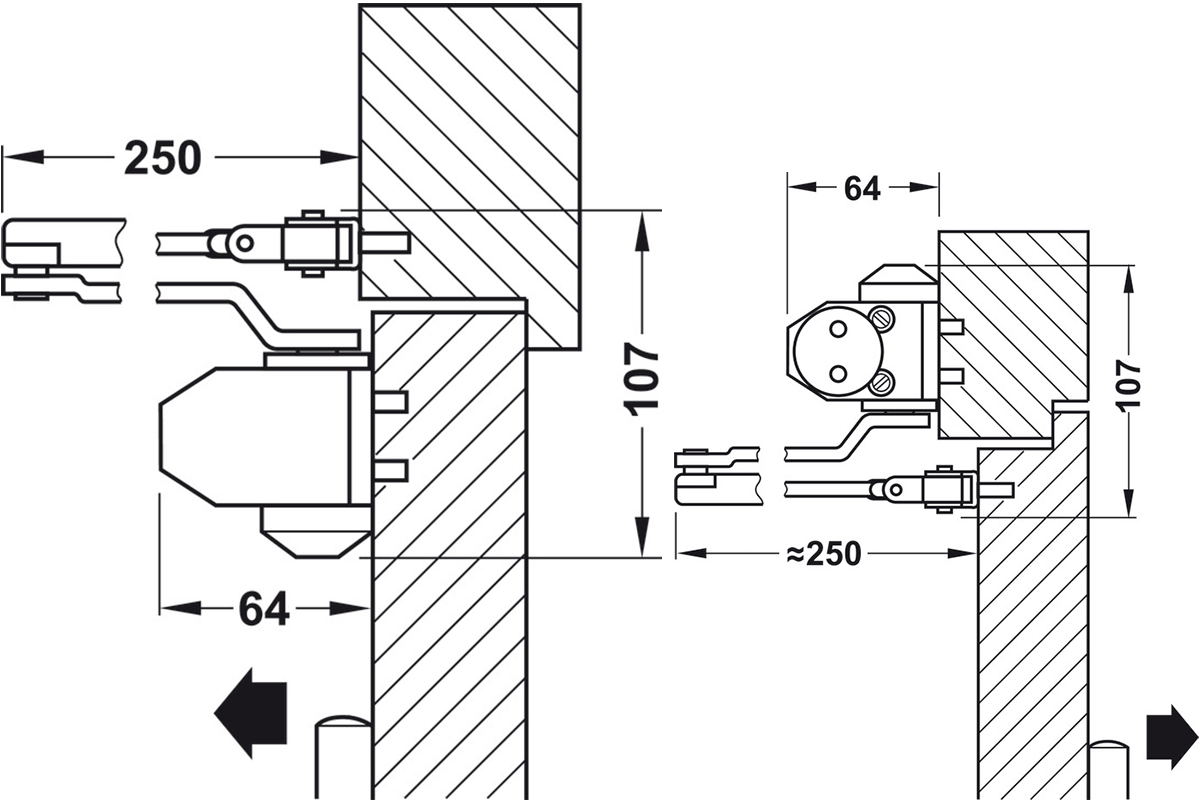

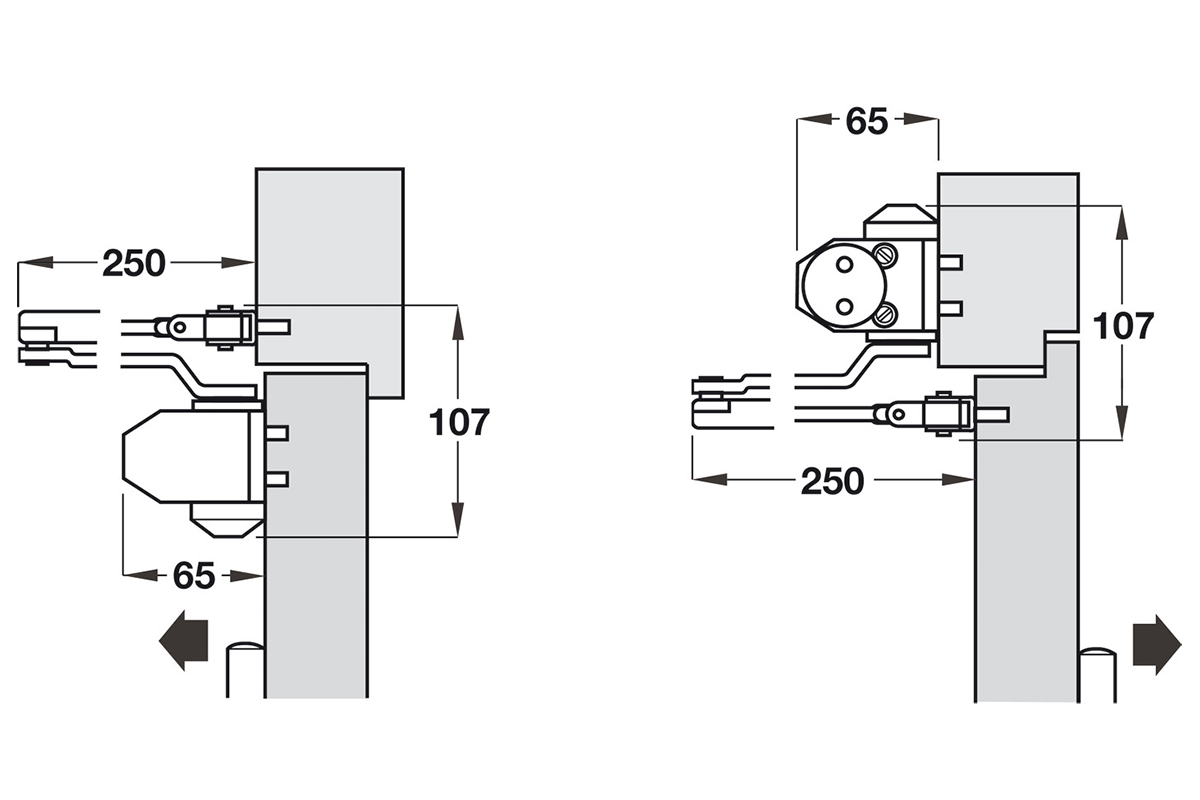

Mounting options
Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on push side
For door width
850 – 950 mm
Mounting
For DIN left and DIN right hand use
Colour/finish
Silver coloured, lacquered
For number of doors
1-leaf doors
Adjustment facility
Closing speed continuously adjustable
Backcheck adjustable
Latching action continuously adjustable
Closing force
3 in accordance with EN 1154
Opening angle
≤180 °
Hold-open angle
≤145 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
4|8|3|1|1|3
Item code: 931.84.649
Door closer, DCL11
