Cup hinge, Häfele Metalla 510 SM 105°, inner stop
Cup hinge, Häfele Metalla 510 SM 105°, inner stop
Supplier:
Häfele
Category:
Furniture & Living Solutions
Cup hinge, Häfele Metalla 510 SM 105°, inner stop
for standard applications, with closing damping, for screwing, drilling pattern 48/6
Product Details
with or without integrated damping in
the hinge cup, the damper can be activated at 30° or 10° opening angle by means of damper switches
Application
for standard applications
Door hinge

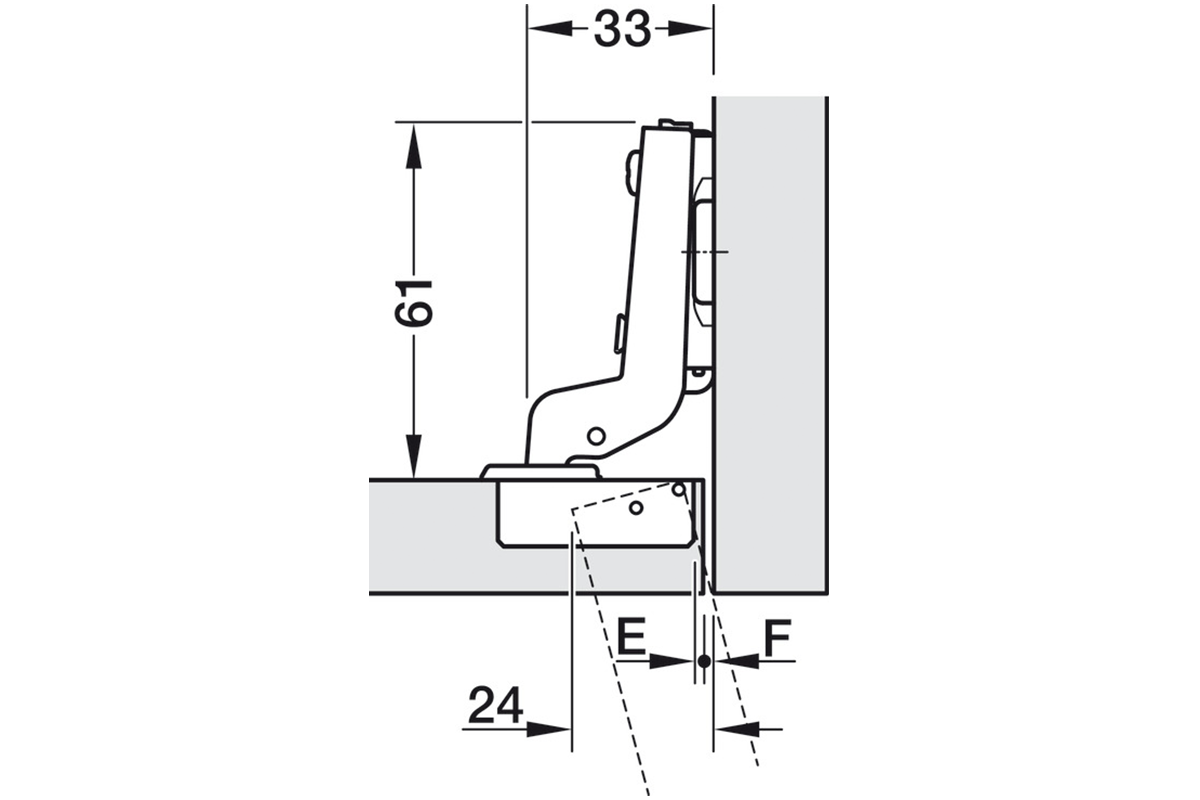

Inside stop
Offset type
cranked up
for door materials
Wood
Material
Steel
Colour/Finish
nickel-plated
Beam angle
105°
Pot Drilling Depth
12.00 mm
Adjustment
Side adjustment -1.5 – 3 mm, height adjustment ±2 mm, depth adjustment 0 – 2.8 mm, height adjustment with mounting plates via slotted holes
Assembly
Door on the carcass with SM quick-assembly technology
Item code: 329.14.302
