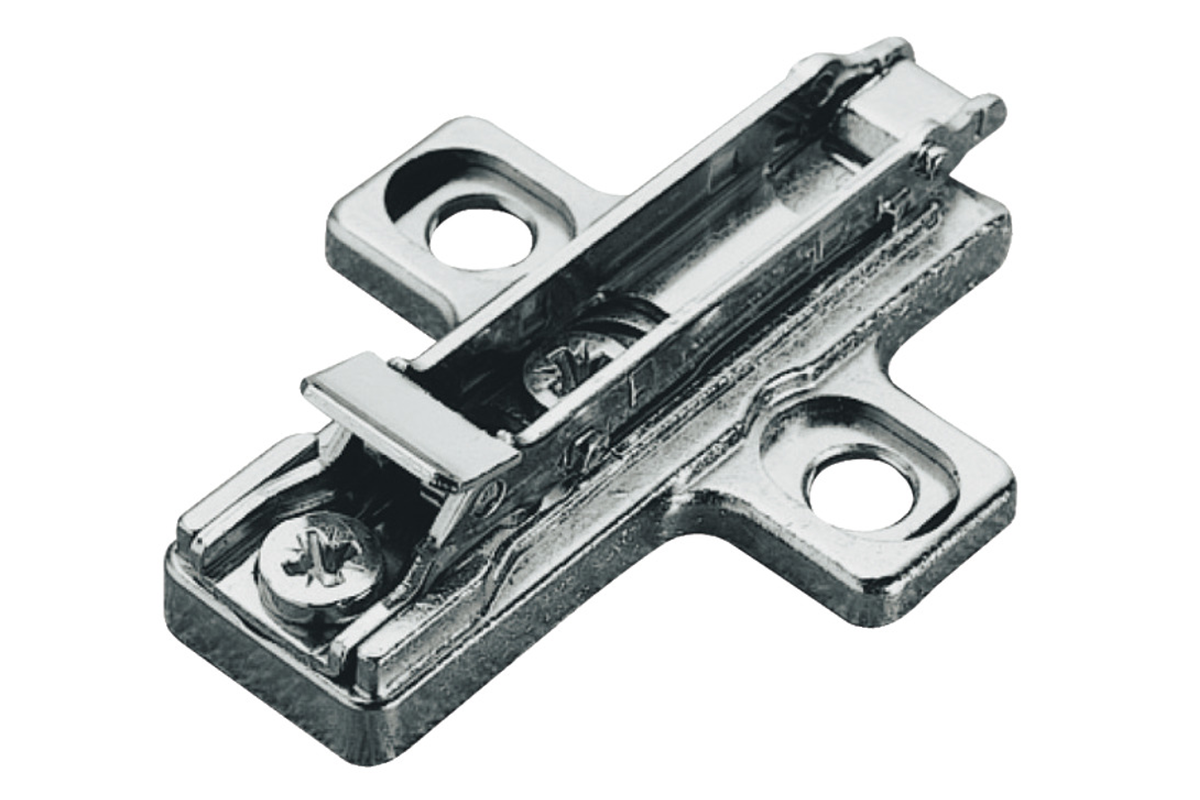

Cruciform mounting plate, Häfele Metalla 510 SM, zinc alloy, with chipboard screws

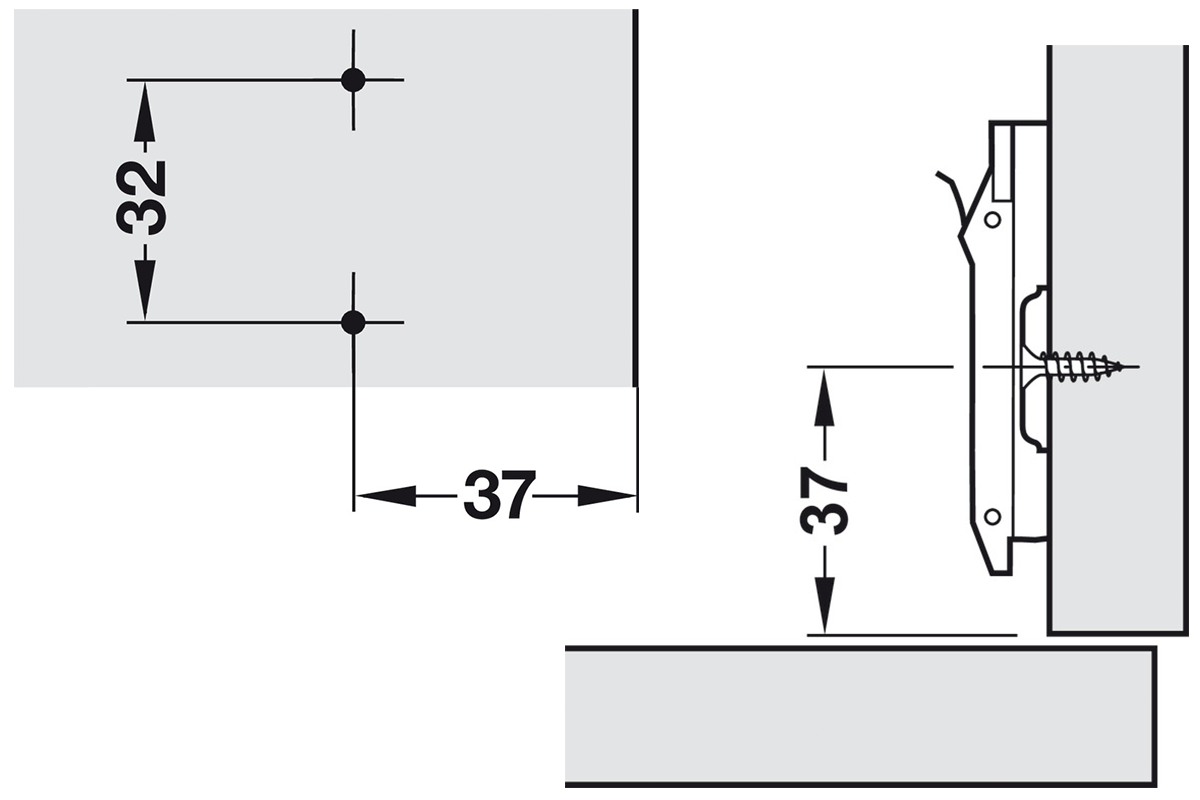

distance D: 2 mm, hole centres: 32 mm
Article details
Area of application
For Häfele Metalla 510 concealed hinges
Version
with quick fixing system and eccentric adjustment
Product Material
Zinc alloy
Colour/finish
nickel plated
For drill hole Ø
2.0 mm
Screw distance
32.0 mm
Edge distance
37.0 mm
Adjustment facility
Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm
Fixing method
Quick fixing system SM
Manufacturer
Häfele
Model series
Metalla 510 SM
Suitable for
Häfele Metalla 510 concealed hinges
Item code: 329.71.502
