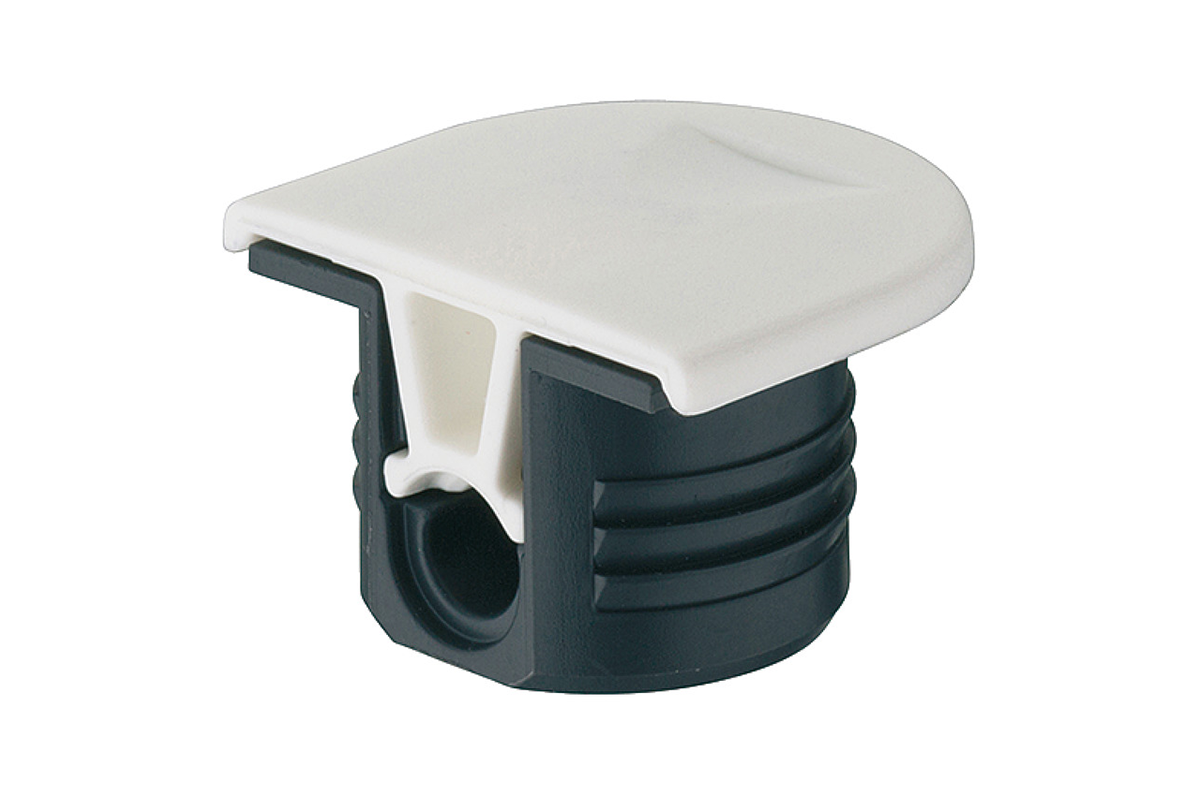

Connector Housing, Rafix Tab
Connector Housing, Rafix Tab
Gray/White
Item details
- Protection against unintentional lifting, tilting or pulling out
Drill hole protected during transport and when moving the shelf
Discreet aesthetics provided by sliding cover cap
installation without tools
no damage to the drill hole when shelf is offset thanks to combination with shelf supports
For wood thickness
≥19 mm

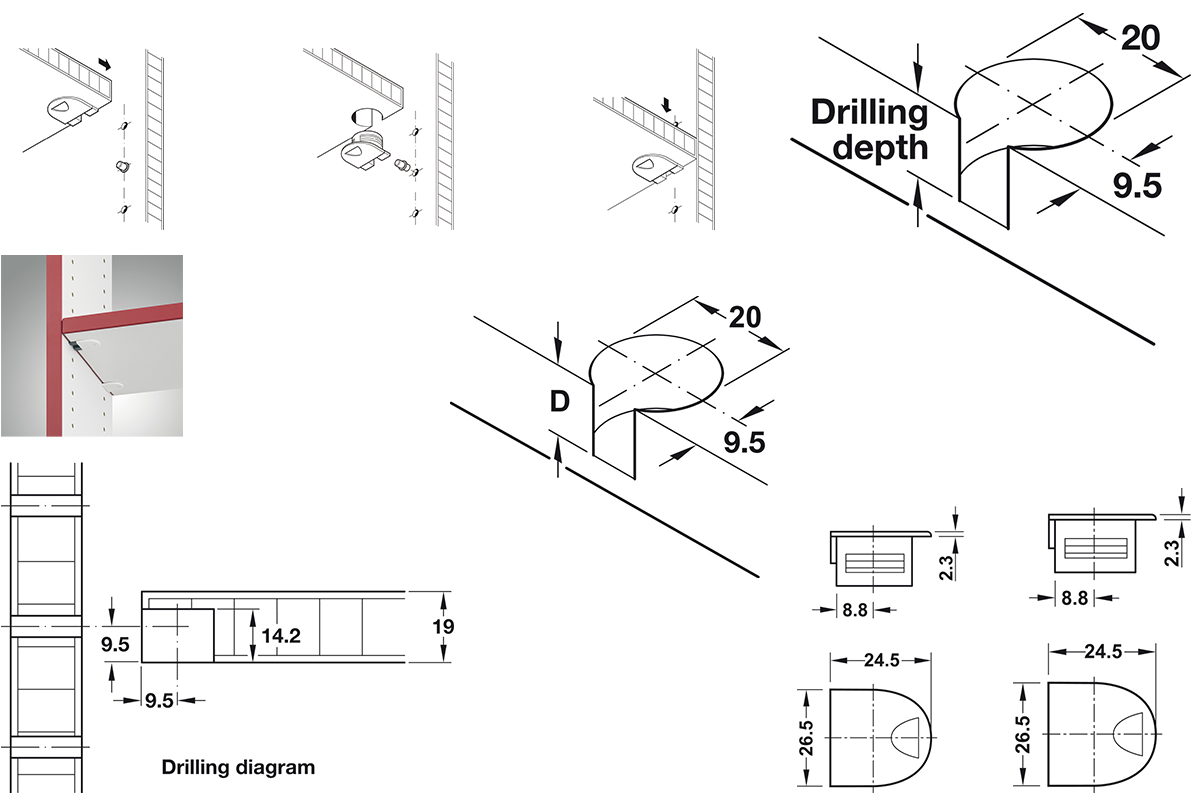

Drilling depth
14.2 mm +0.2 mm
Color/finish
White/gray
Area of application
as shelf connector
Features
with sliding cover cap, Without tightening element
Material
Plastic
Installation
for press in, Without tools
Additional information
Minimum order quantity for customised colour of sliding cover cap: 56,000 pieces
Item code: 263.09.795
Connector Housing, Rafix Tab
