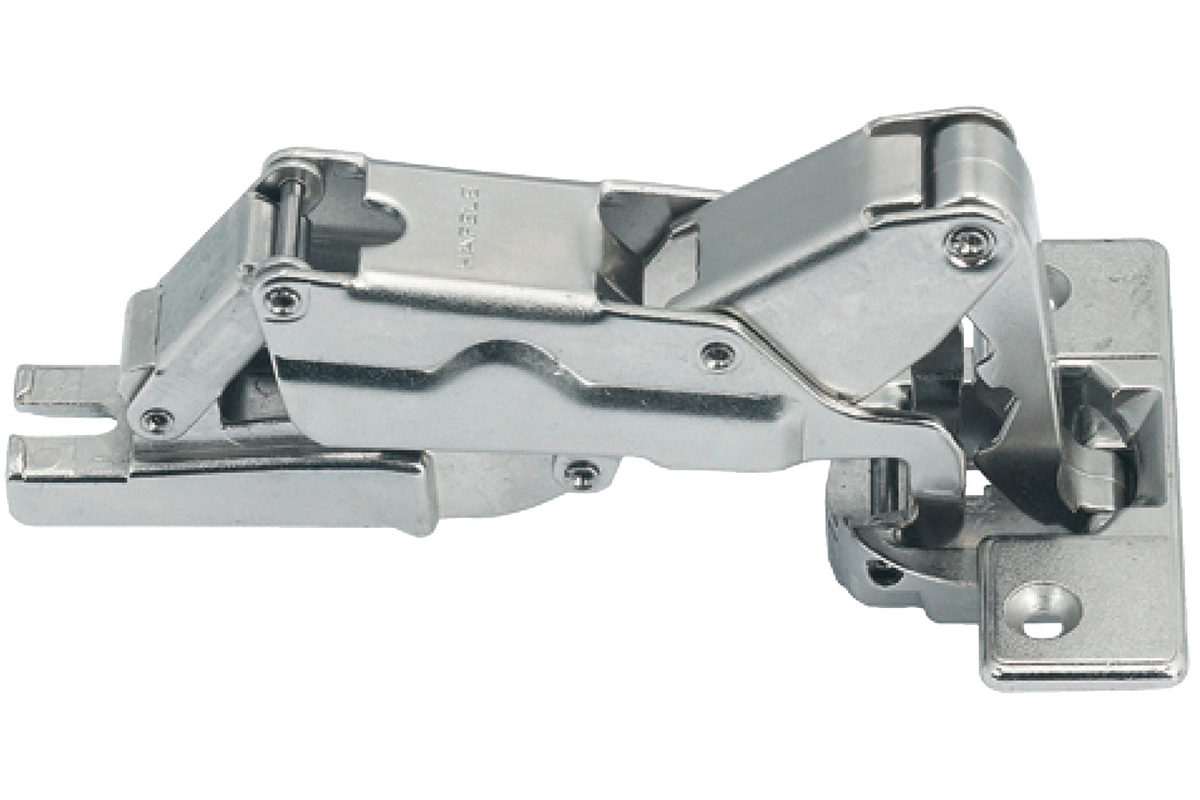

Concealed hinge, Häfele Metallamat A/SM 175°, full overlay mounting
For screw fixing, drilling pattern 48/6, A slide-on system
Article details
Area of application
for cabinets with internal pull outs or extending trays
Function
With automatic closing spring
Concealed hinge version
full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Product Material
Cup: Zinc alloy, Hinge arm: Steel
Colour/finish
nickel plated
Opening angle
175°

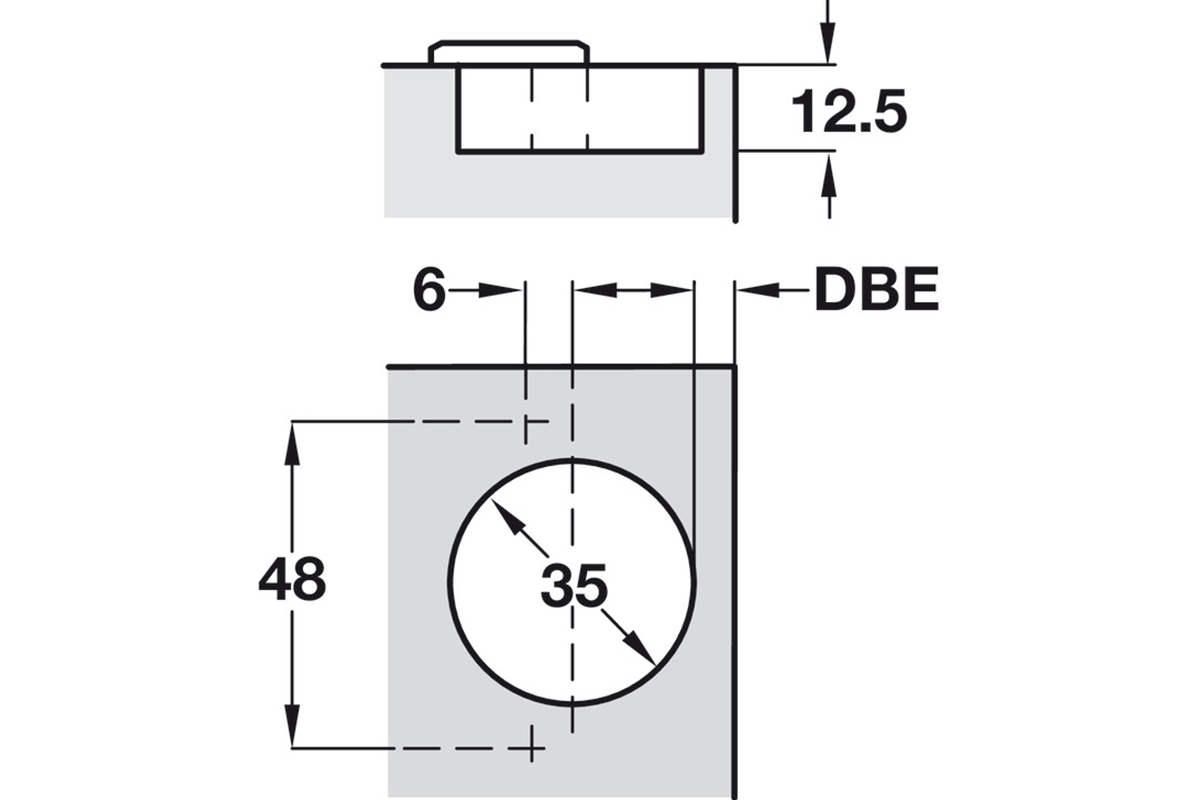

Cup drilling depth
12.50 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing
Drilling pattern
48/6
Adjustment facility
3-dimensional (with appropriate mounting plate)

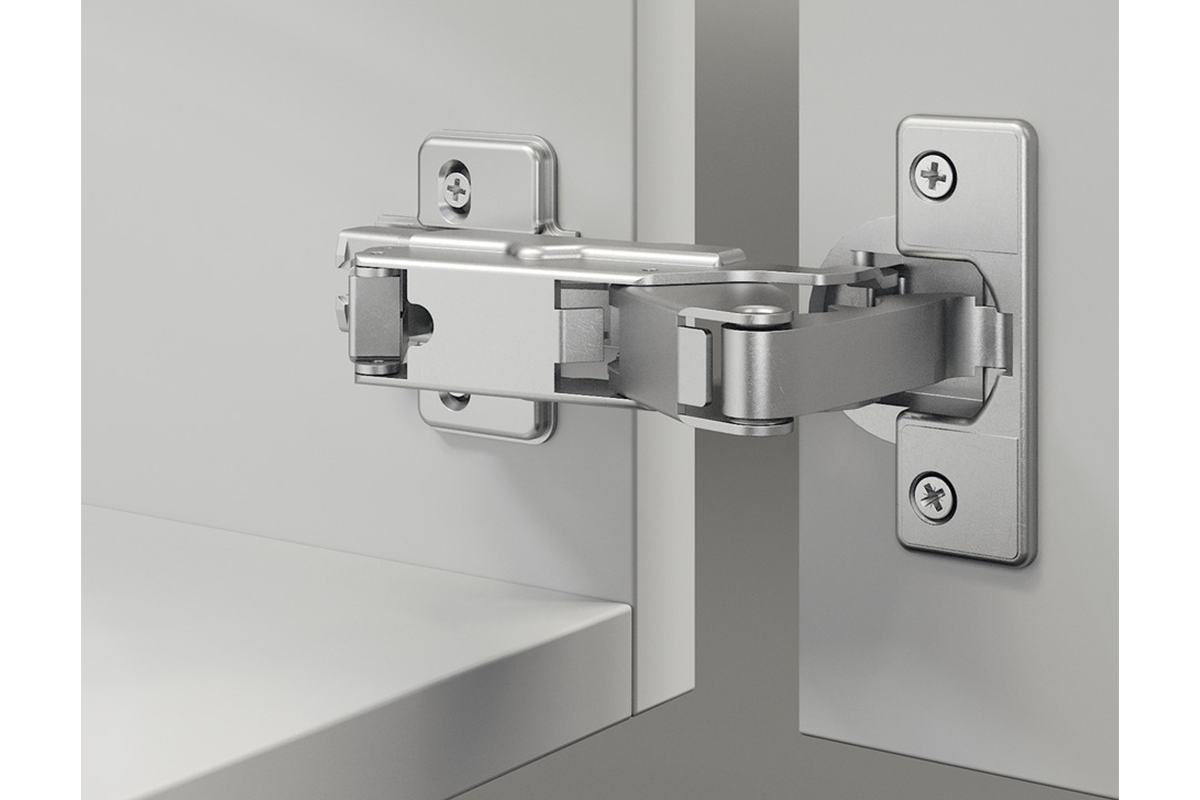

Installation
Door on cabinet with slide-on system A
Item code: 316.32.600
