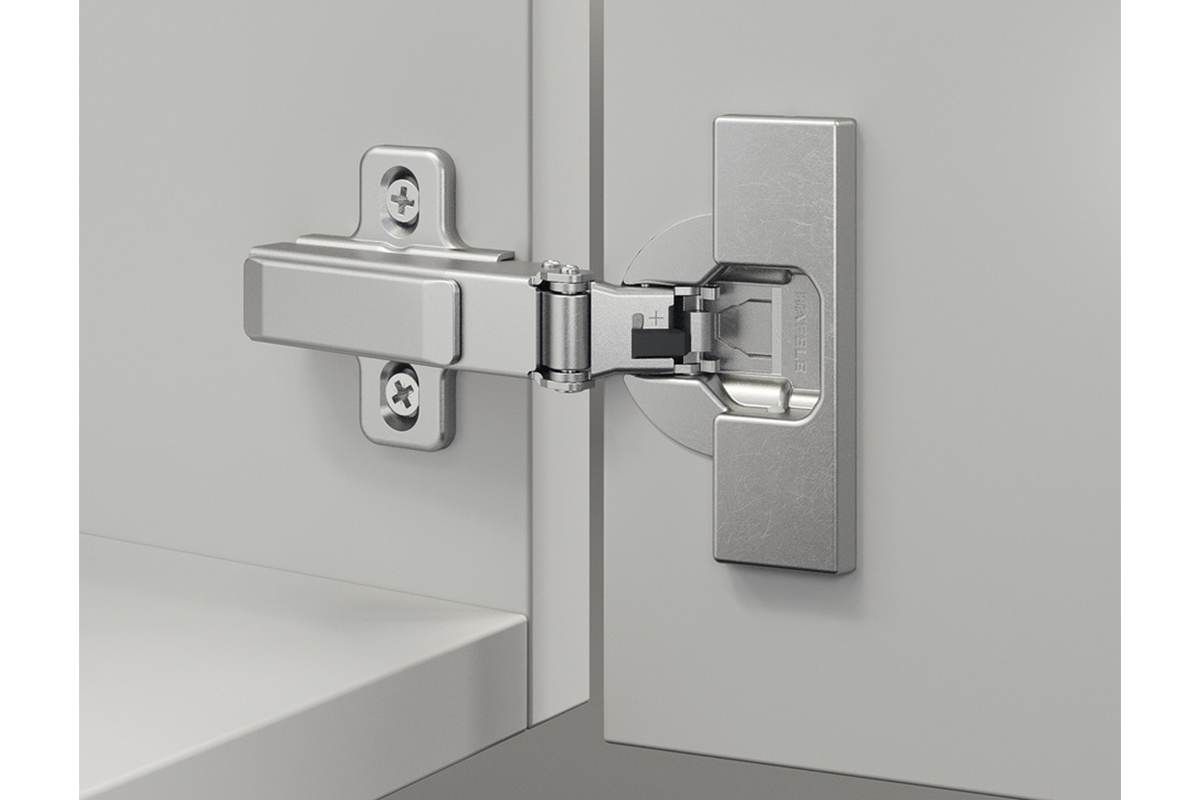

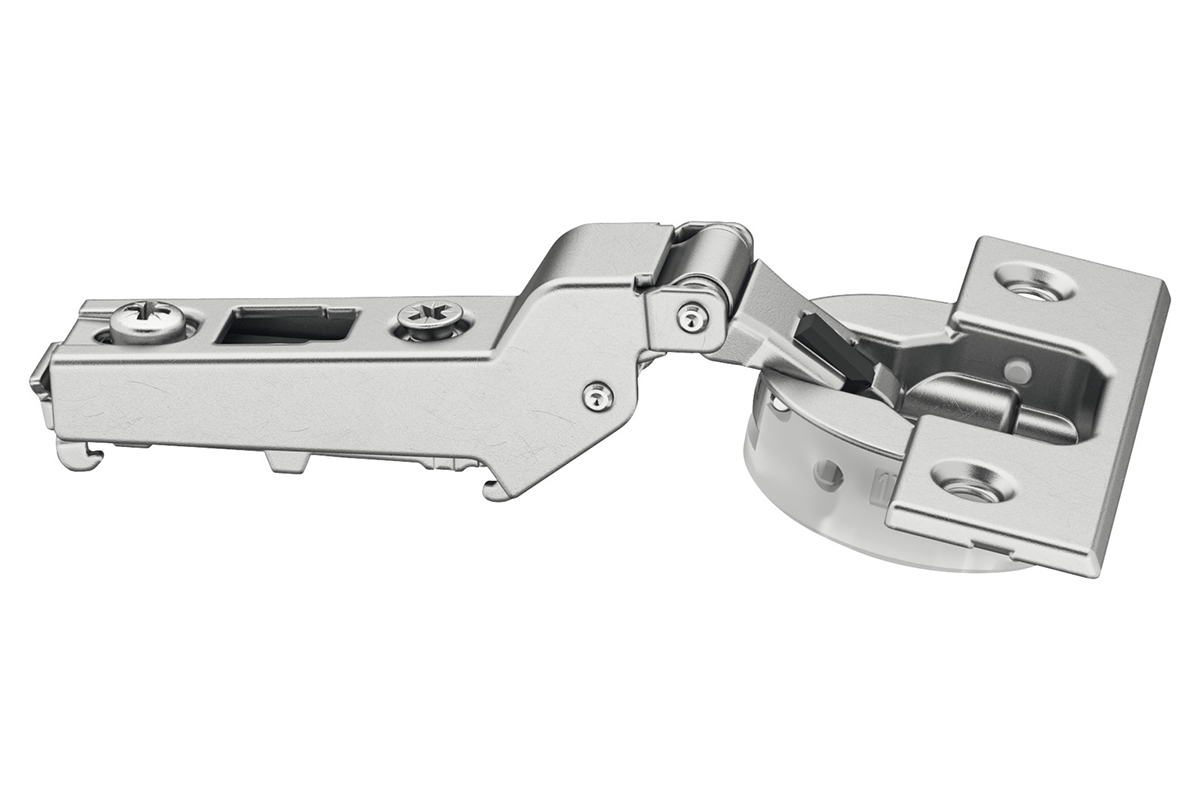

Concealed hinge, Häfele Metalla 510 SM 105°, half overlay mounting/twin mounting

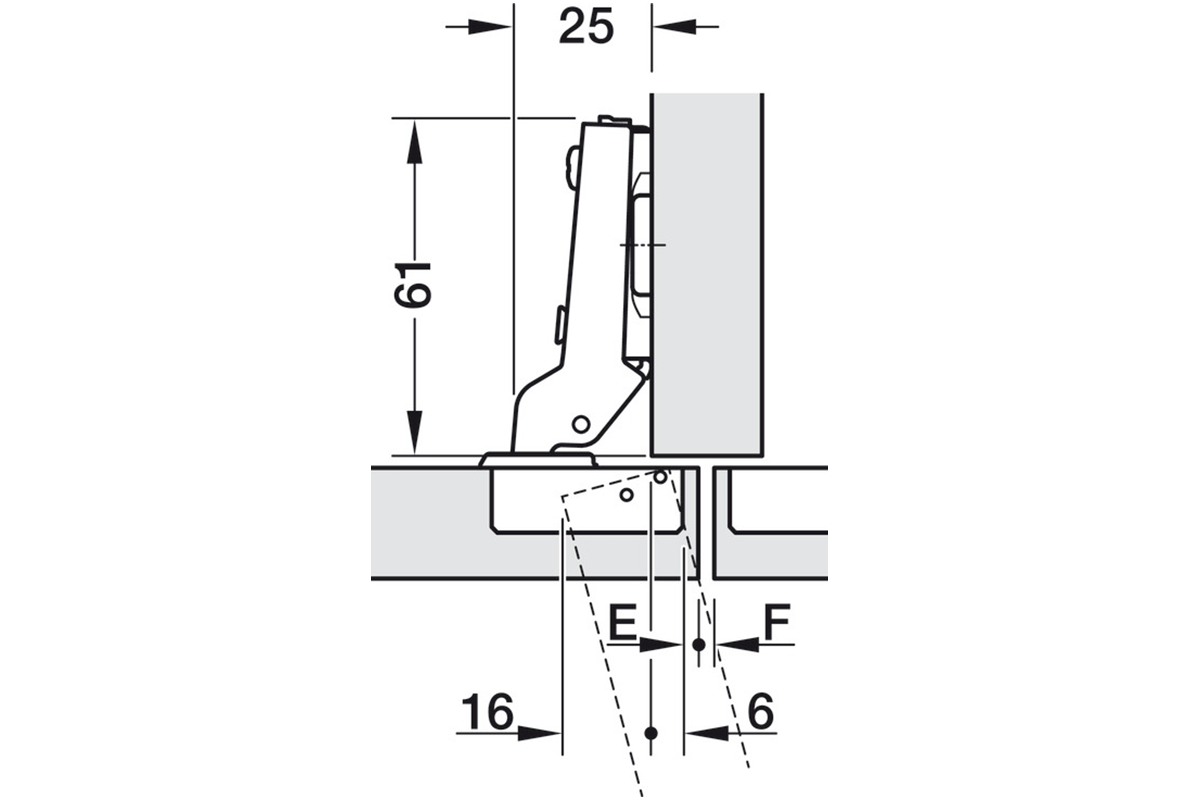

for standard applications, with soft closing mechanism, for screw fixing, drilling pattern 48/6
Article details
with or without integrated soft closing mechanism in hinge cup
the soft closing mechanism can be activated at an opening angle of 30° or 10° using a soft closing mechanism switch
Area of application
for standard applications
Concealed hinge version
Half overlay mounting/twin mounting
Crank type
Cranked
For door material
Wood
Product Material
Steel
Colour/finish
nickel plated
Opening angle
105°
Cup drilling depth
12.00 mm
Cup fixing
for screw fixing
Adjustment facility
Side adjustment 3 mm, Height adjustment -2 – 2 mm, Depth adjustment 0 – 2.8 mm, Height adjustment with mounting plates via slots
Installation
Door on cabinet with quick fixing system SM
Item code: 329.14.301
