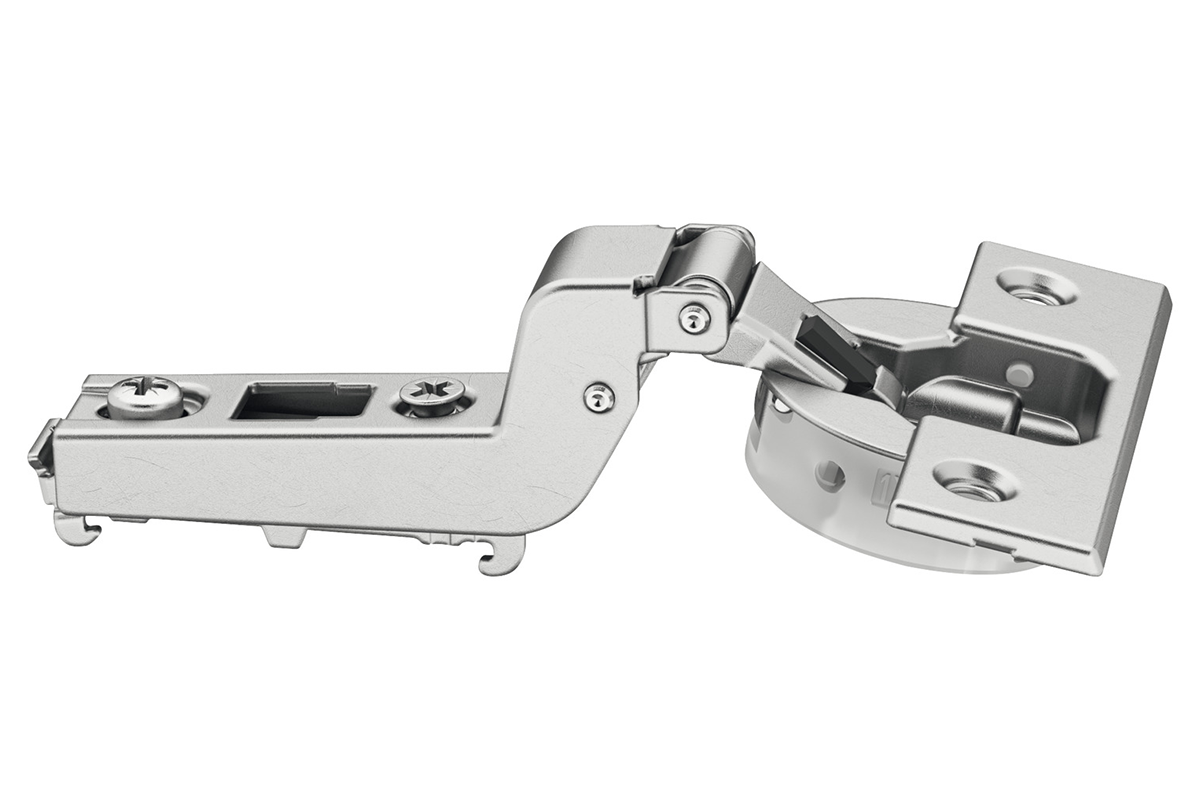

Concealed hinge, Häfele Metalla 510 SM 105°, full overlay mounting
for standard applications, with soft closing mechanism, for screw fixing, drilling pattern 48/6
Article details
with or without integrated soft closing mechanism in hinge cup
the soft closing mechanism can be activated at an opening angle of 30° or 10° using a soft closing mechanism switch
Area of application
for standard applications
Concealed hinge version
full overlay
Crank type
Straight
For door material
wood
Product Material
Steel
Colour/finish
nickel plated
Opening angle
105°

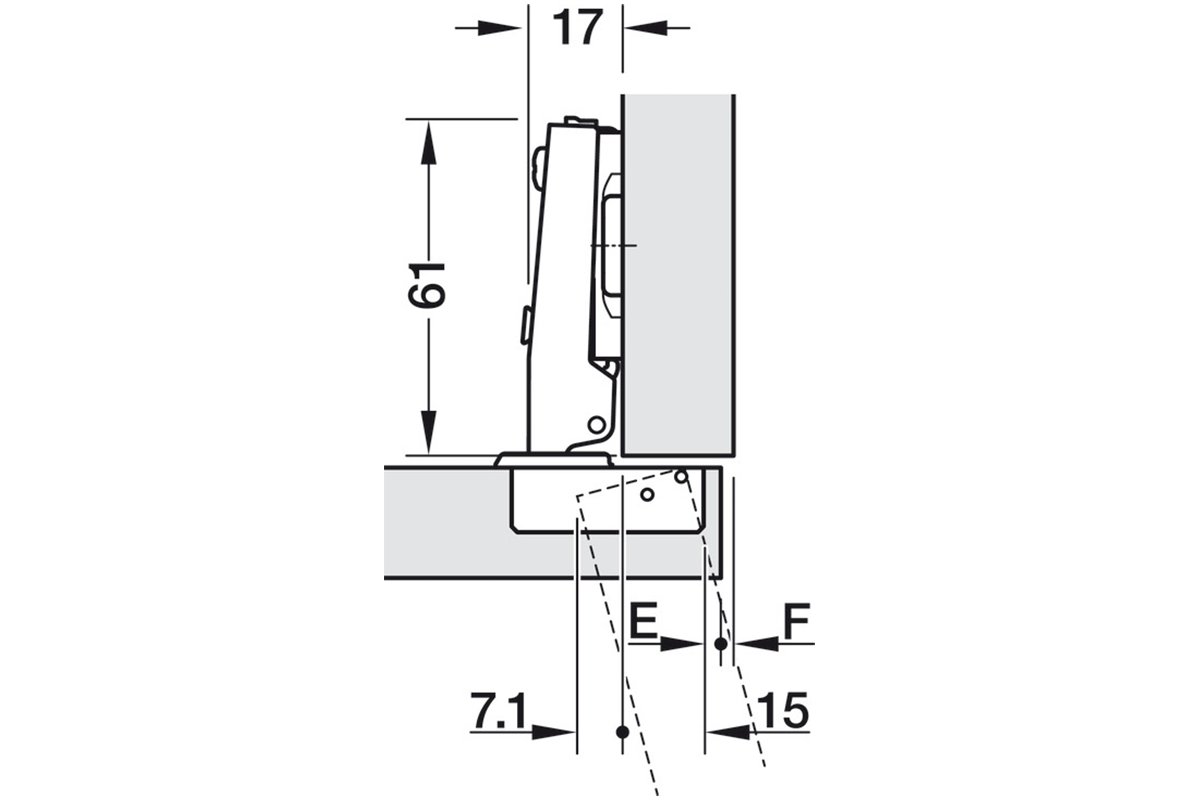

Cup drilling depth
12.0 mm
Adjustment facility
Side adjustment -1.5 – 3 mm, Height adjustment ±2 mm, Depth adjustment 0 – 2.8 mm, Height adjustment with mounting plates via slots

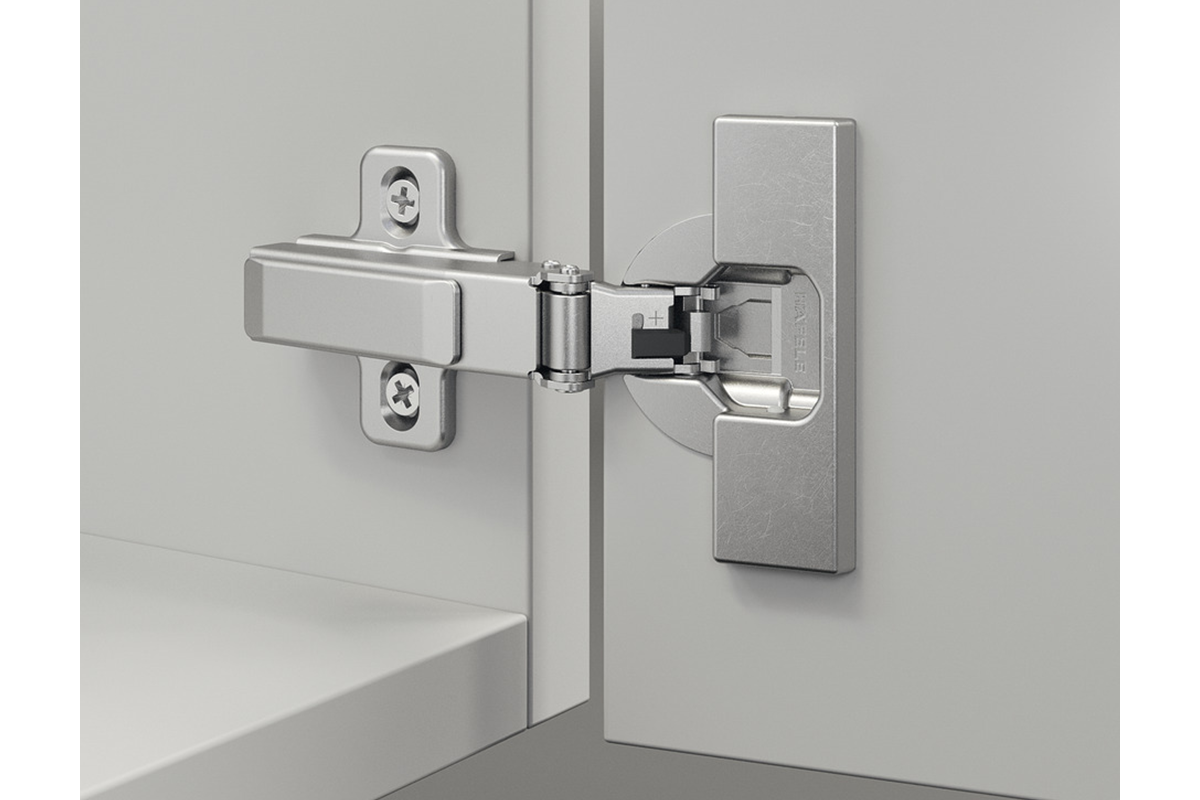

Installation
Door on cabinet with quick fixing system SM
Item code: 329.14.300
