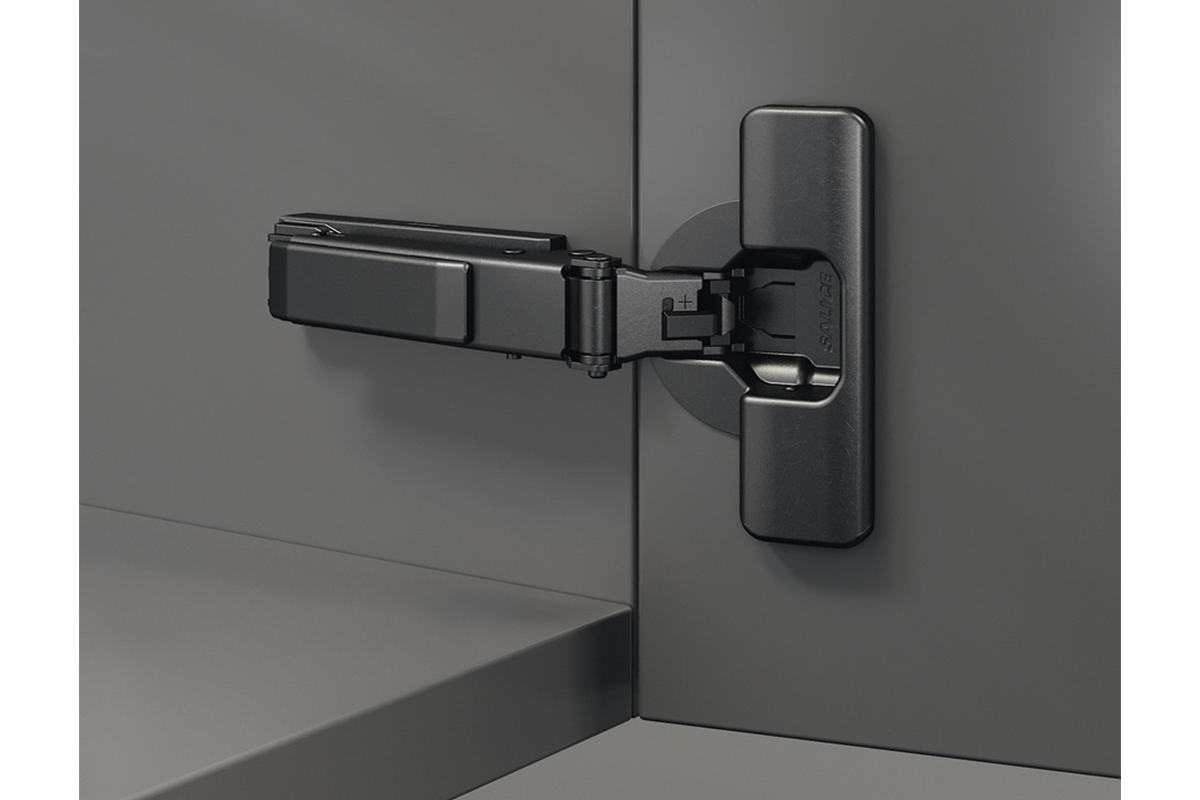

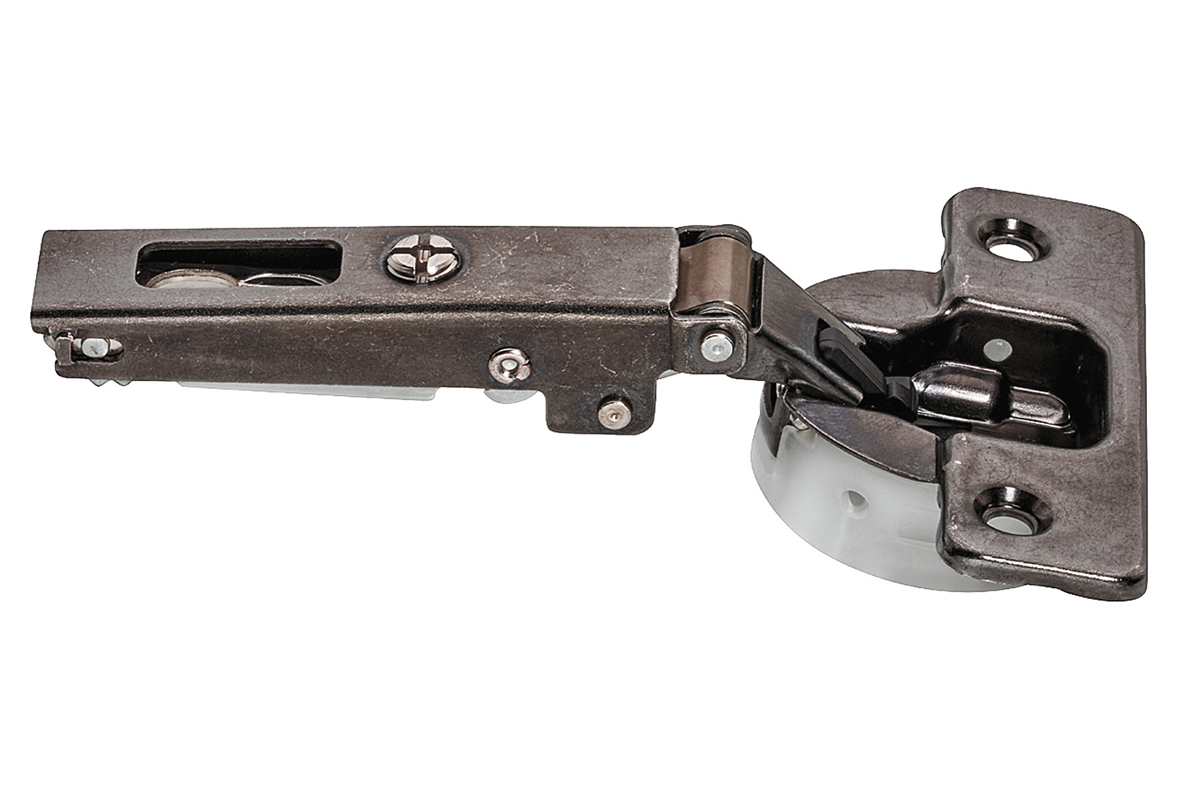

Concealed hinge, Häfele Metalla 510 A/SM 110°, full overlay mounting
Concealed hinge, Häfele Metalla 510 A/SM 110°, full overlay mounting
Supplier:
Häfele
Category:
Furniture & Living Solutions
Concealed hinge, Häfele Metalla 510 A/SM 110°, full overlay mounting
for wooden doors, for standard applications, cup fixing: For screw fixing, drilling pattern: 48/6 mm
Article details
- Titanium coloured galvanized version with higher corrosion protection than nickel plated
with two silicone oil dampers integrated in hinge cup
the soft closing mechanism can be activated at an opening angle of 30° or 10° (optional)
Area of application
for standard applications
Function
With automatic closing spring, With soft closing mechanism
Concealed hinge version
full overlay
Crank type
Straight
For door material
wood
Door processing for assembly
with cup drilling
Product Material
Steel
Opening angle
110°
Cup drilling depth
13,50 mm
Cup drilling Ø
35,00 mm

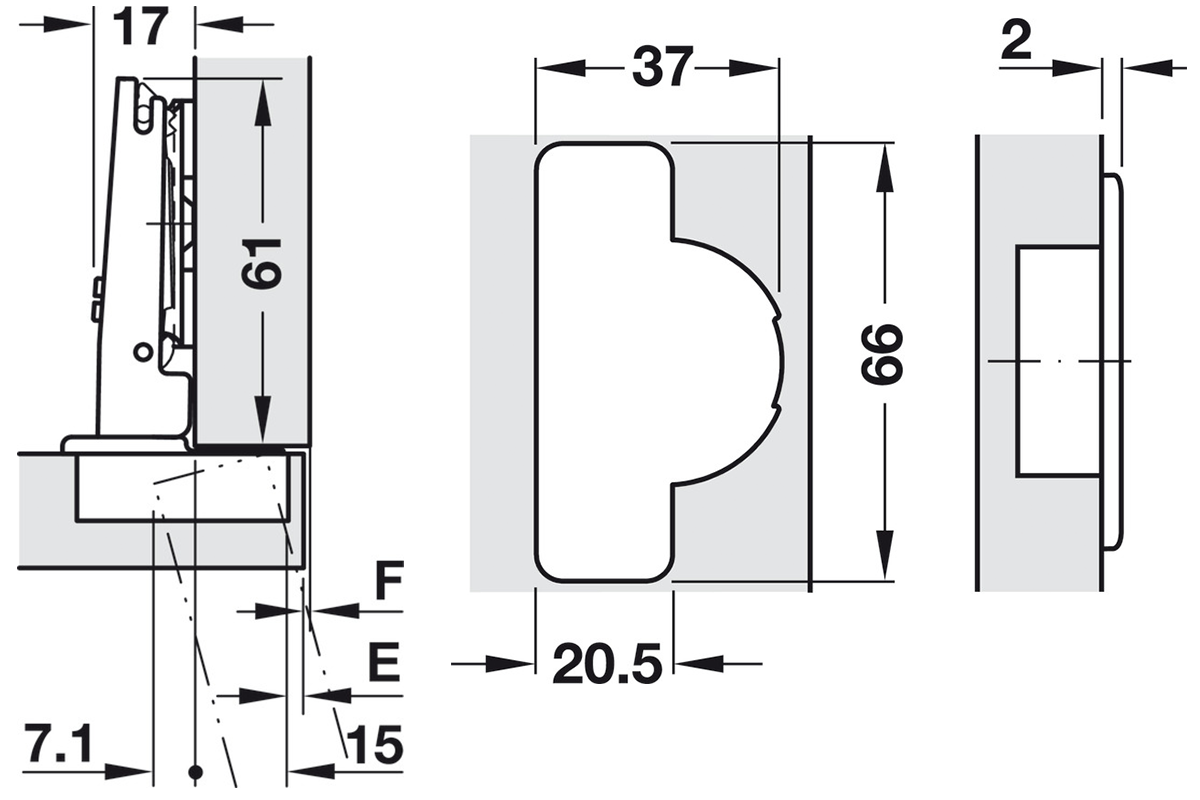

Adjustment facility
Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm
Installation
Door on cabinet with slide-on system A or quick fixing system SM
Item code: 329.17.790
Concealed hinge, Häfele Metalla 510 A/SM 110°, full overlay mounting, Datasheet
