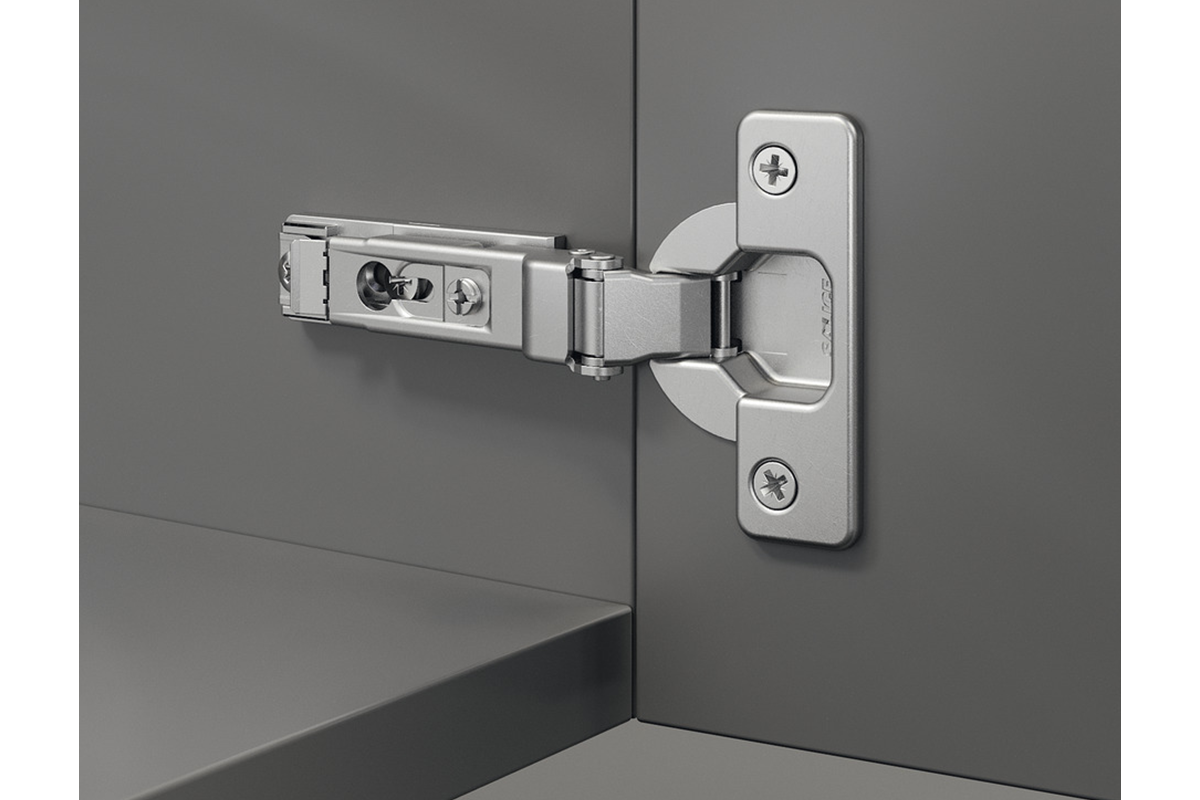

Concealed hinge, Häfele Metalla 510 A 94°, full overlay mounting, for refrigerator doors
Cup fixing: For screw fixing, cup fixing: For screw fixing, drilling pattern: 48/6 mm
Article details
- extremely flat design specially designed for refrigerator door applications
Area of application
For refrigerator doors
Function
With automatic closing spring
Concealed hinge version
full overlay
Crank type
Cranked
For door material
wood
Door processing for assembly
with cup drilling
Product Material
Steel
Colour/finish
nickel plated
Opening angle
94°
Cup drilling depth
11.0 mm
Cup drilling Ø
35.0 mm
Cup fixing
for screw fixing
Adjustment facility
Side adjustment <4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plate +2.8 mm
Installation
Door on cabinet with slide-on system A
Order reference
Only suitable for all Metalla 510 A mounting plates.
Drilling pattern 45/9.5 available by request.
Item code: 329.36.601
