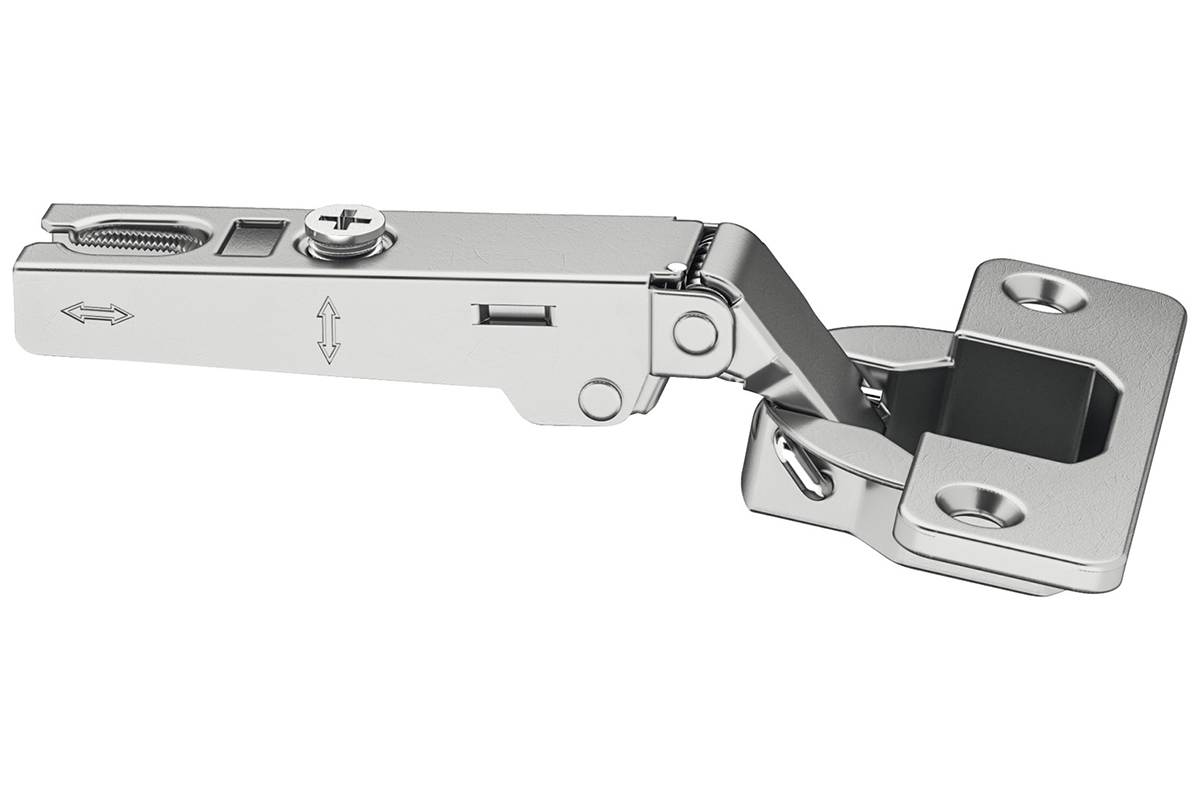

Concealed hinge, Häfele Metalla 310 A 110°, full overlay mounting
Concealed hinge, Häfele Metalla 310 A 110°, full overlay mounting
Supplier:
Häfele
Category:
Furniture & Living Solutions
Concealed hinge, Häfele Metalla 310 A 110°, full overlay mounting
with soft closing mechanism, for screw fixing, drilling pattern 48/6
Article details
With or without integrated soft closing mechanism
Area of application
For standard applications
Concealed hinge version
full overlay
Door processing for assembly
with cup drilling
Product Material
Steel
Colour/finish
nickel plated
Opening angle
110°
Cup drilling depth
12.0 mm
Cup fixing
for screw fixing
Adjustment facility
Side adjustment ±3 mmHeight adjustment ±2 mm (via mounting plate)Depth adjustment ±2 mm
Installation

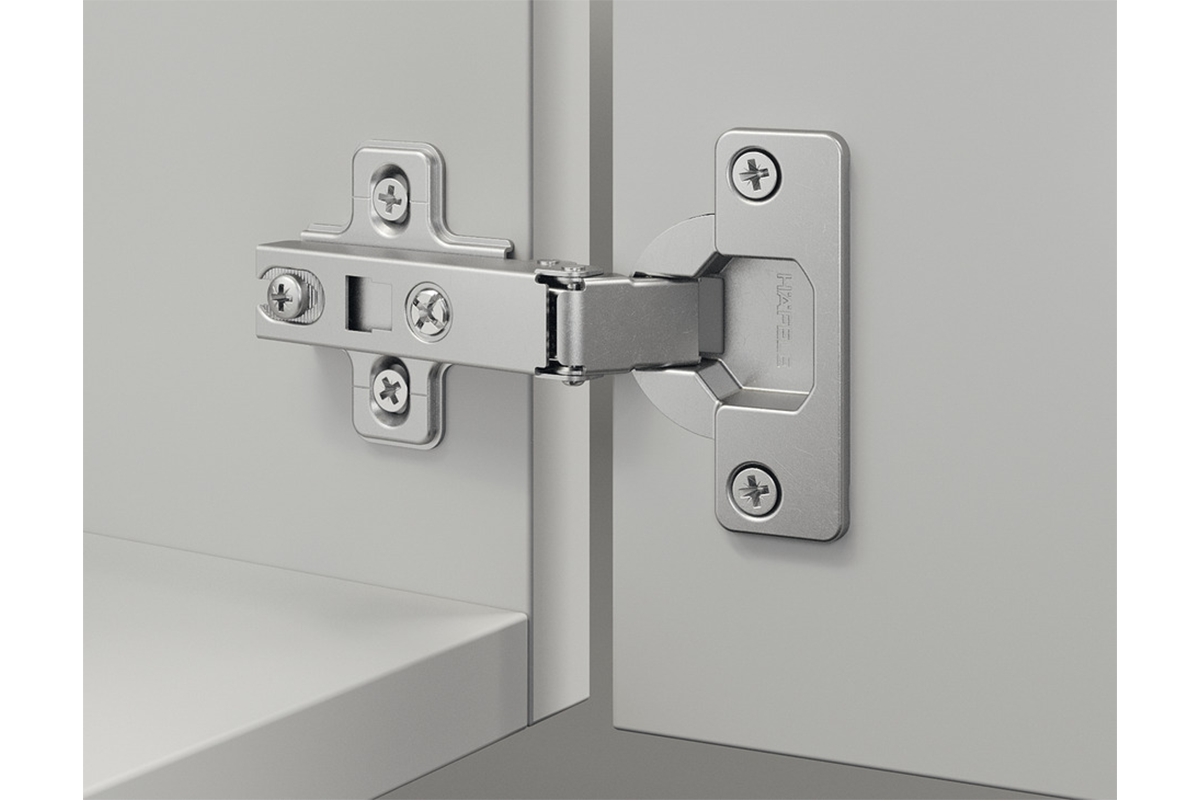

Door on cabinet with slide-on system A
Item code: 311.03.083
Concealed hinge, Häfele Metalla 310 A 110°, full overlay mounting
